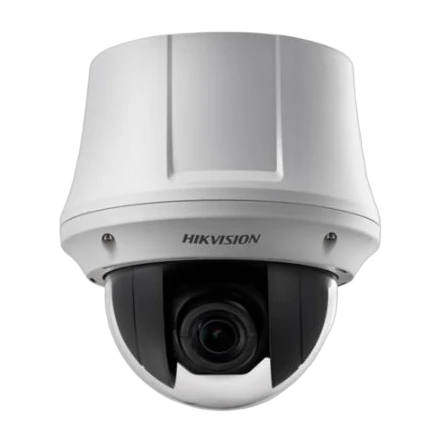

DS-2AE4215TG-3 Hikvision PTZ Dome Analogue Camera
Product Overview
The Hikvision DS-2AE4215TG-3 is a 2MP PTZ (pan-tilt-zoom) analogue dome camera designed for wide-area monitoring with flexible viewing control. It delivers up to 1920 × 1080 resolution using a 1/2.8″ progressive scan CMOS sensor. For low-light environments, it features powered-by-DarkFighter technology, helping provide strong image performance when ambient light is limited. The camera also supports advanced image quality features including 120 dB Wide Dynamic Range (WDR) to help produce clearer images in scenes with strong backlight.
With 15× optical zoom (16× digital), the DS-2AE4215TG-3 allows operators to move from wide overviews to detailed long-range views. Pan is 360° endless, with tilt ranging from -5° to 90° (auto flip), and the camera includes proportional pan rotation speed that adjusts based on zoom level. For control flexibility and automated surveillance, it supports 256 presets, 10 patrols (up to 32 presets per patrol), and multiple scan modes including pattern scans and park actions.
The unit is built for demanding installation conditions with IP66 water/dust resistance and operating temperatures of -10°C to 50°C (humidity up to 90%). A switchable video output supports TVI/AHD/CVI/CVBS (NTSC or PAL composite via BNC), making it suitable for analogue Turbo HD deployments. Additional protections include lightning, surge, and voltage transient protection.
Key Features
- 2MP (1920 × 1080) high quality imaging
- Powered-by-DarkFighter low-light performance
- 120 dB WDR for clear imaging against strong backlight
- 15× optical zoom with 16× digital zoom
- 360° endless pan and -5° to 90° tilt (auto flip)
- 256 presets
- 10 patrols; up to 32 presets per patrol
- 5 pattern scans (record time over 10 minutes for each scan)
- Water and dust resistant (IP66)
- Privacy mask: 8 programmable privacy masks
- Switchable TVI/AHD/CVI/CVBS video output (NTSC/PAL composite via BNC)
- Power-off memory: Yes
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 1920 × 1080 (2MP).
Yes. It uses powered-by-DarkFighter technology for excellent low-light performance.
The Wide Dynamic Range (WDR) is ≥ 120 dB.
It offers 15× optical zoom (with 16× digital zoom).
Pan is 360° endless and tilt is -5° to 90° (auto flip).
The camera is water and dust resistant with an IP66 rating.
