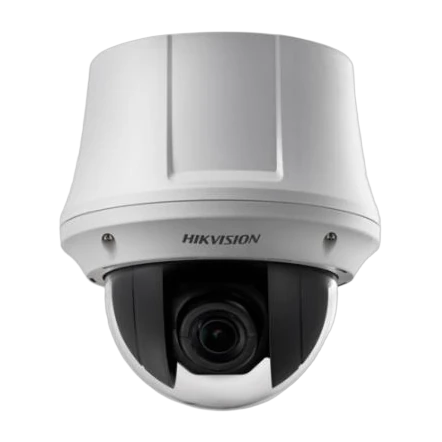

DS-2AE4225TG-3 Hikvision PTZ Dome Analogue Camera
Product Overview
The Hikvision DS-2AE4225TG-3 AE PTZ is a 2MP Turbo HD/AE PTZ dome camera designed for wide-area monitoring with smooth pan/tilt control and long-distance detail using high optical zoom. It delivers a maximum resolution of 1920×1080 and supports video output with switchable TVI/AHD/CVI/CVBS, using PAL/NTSC composite (BNC). For challenging lighting conditions, the camera offers powered-by-DarkFighter technology for excellent low-light performance, and 120 dB WDR to help maintain clear images against strong backlight. The IR cut filter enables day/night operation.
For coverage flexibility, the PTZ mechanism provides 360° endless pan and tilt from -5° to 90° with auto flip, plus adjustable proportional pan rotation speed depending on zoom level. The lens provides 25× optical zoom (with 16× digital zoom) and a focal length range of 4.8 mm to 120 mm, supporting wide-to-tele viewing angles. Configuration includes 256 presets, 10 patrols (up to 32 presets per patrol), and pattern/panorama scan options. The camera also includes power-off memory and preset freezing.
Additional image processing features include AGC, white balance, BLC, HLC, and 3D DNR, along with 8 programmable privacy masks. Built for demanding environments, the device is rated IP66 for water and dust resistance and includes protection such as 4,000 V lightning/surge/voltage transient protection.
Key Features
- 2MP max resolution (1920×1080)
- 25× optical zoom (4.8 mm to 120 mm) with 16× digital zoom
- Powered-by-DarkFighter low-light performance
- 120 dB WDR for clear backlit imaging
- PTZ pan: 360° endless; tilt: -5° to 90° (auto flip)
- Day & Night IR cut filter
- 256 presets; 10 patrols (up to 32 presets each); 5 patterns
- Pattern Scan and scheduled tasks (preset/patrol/pattern/pan scan/tilt scan/panorama/day-night/zero calibration)
- BLC, HLC, 3D DNR; AGC and white balance
- 8 programmable privacy masks
- Switchable TVI/AHD/CVI/CVBS video output (NTSC/PAL composite, BNC)
- IP66 water and dust resistance
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 1920 × 1080 (2MP).
It supports 25× optical zoom (with 16× digital zoom).
Yes. It includes a Day & Night IR cut filter.
It provides Wide Dynamic Range (WDR) of ≥ 120 dB.
Pan is 360° endless, and tilt is -5° to 90° (auto flip).
Yes. It has IP66 protection for water and dust resistance.
