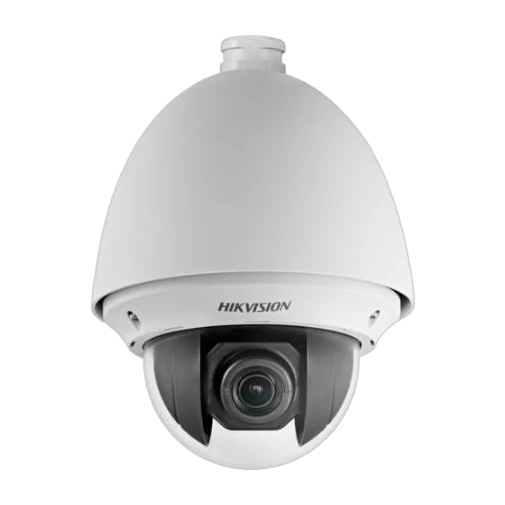

DS-2AE4225TG Hikvision PTZ Dome Analogue Camera
Product Overview
The Hikvision DS-2AE4225TG is a Turbo HD PTZ dome analogue camera designed for high-detail monitoring over wide areas. It features a 1/2.8-inch progressive scan CMOS sensor and delivers up to 1920 × 1080 maximum resolution for clear, detailed images. A 25× optical zoom (with 16× digital zoom) supports closer viewing of subjects at distance, while wide FOV coverage helps with initial scene acquisition.
For reliable image quality under challenging lighting, the camera includes 120 dB WDR (Wide Dynamic Range) technology and offers image enhancements such as BLC, HLC, and 3D DNR. Privacy masking with 8 programmable masks helps protect sensitive areas.
PTZ functionality includes 360° endless pan movement and tilt from -5° to 90° with auto flip. Operation supports up to 256 presets, as well as patrol scans (10 patrols) and pattern scans (5 patterns), enabling flexible automated coverage. Preset freezing and power-off memory help maintain consistent camera behavior after interruptions.
The DS-2AE4225TG supports switchable TVI/AHD/CVI/CVBS video output for compatibility with multiple analogue video systems, and uses RS-485 (half-duplex) for control with support for self-adaptive Hikvision and Pelco protocols. The camera is rated for outdoor use with IP66 protection and lightning/surge/transient protection features.
Key Features
- 1/2.8″ progressive scan CMOS sensor
- Max resolution 1920 × 1080
- 25× optical zoom and 16× digital zoom
- 120 dB WDR for clear imaging against strong back lighting
- 3D intelligent positioning
- Switchable TVI/AHD/CVI/CVBS video output
- 360° endless pan; tilt -5° to 90° (auto flip)
- 256 presets, with preset freezing
- Patrol scan: 10 patrols (up to 32 presets per patrol)
- Pattern scan: 5 patterns (record time over 10 minutes for each scan)
- Power-off memory
- Image enhancements: BLC, HLC, 3D DNR; 8 privacy masks
- RS-485 half-duplex with self-adaptive Hikvision/Pelco protocols
- IP66 outdoor dome protection; TVS 4,000 V lightning protection
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
1920 × 1080.
25× optical zoom and 16× digital zoom.
Yes, WDR is ≥ 120 dB.
Switchable TVI/AHD/CVI/CVBS output (NTSC or PAL composite, BNC).
256 presets.
Pan: 360° endless; Tilt: -5° to 90° (auto flip).
