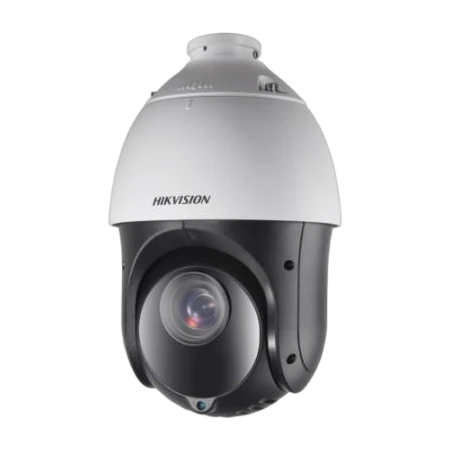

DS-2AE4425ITG Hikvision PTZ Dome Analogue Camera
Product Overview
The Hikvision DS-2AE4425ITG is an analog PTZ dome camera designed for high-detail long-distance monitoring. It delivers up to 4MP (2560 × 1440) resolution using a 1/2.8″ progressive scan CMOS sensor. For challenging scenes, the camera supports wide dynamic range with WDR of at least 120 dB to help maintain visibility in high-contrast lighting conditions.
For night operation, the camera features Powered-by-DarkFighter technology for excellent low-light performance and an integrated IR illuminator. The IR range is up to 100 m, helping extend safe perimeter viewing after dark. The day/night performance is supported by an IR cut filter with zero lux operation when using IR.
PTZ control includes 360° endless pan movement and tilt movement from -15° to 90° with auto flip. Users can store 256 presets and configure patrol and pattern scans for automated monitoring. Additional functionality includes preset freezing, park actions (such as preset/patrol/pattern and day/night modes), scheduled tasks, and power-off memory.
The DS-2AE4425ITG also includes advanced image enhancements such as BLC, HLC, and 3D DNR, plus privacy masking with 8 programmable masks. Built for outdoor use, it has an IP66 weather rating and supports protection features such as surge and voltage transient protection and TVS 4000 V lightning protection. The camera operates on 12 VDC with a maximum power of 20 W.
Key Features
- 4MP max resolution (2560 × 1440)
- Powered-by-DarkFighter low-light performance
- 120 dB WDR for clear imaging in strong backlight
- 25× optical zoom with 16× digital zoom
- IR illuminator with up to 100 m range
- PTZ: 360° endless pan; -15° to 90° tilt (auto flip)
- 256 presets; preset freezing supported
- 10 patrols and 5 pattern scans
- Privacy mask: 8 programmable masks
- Advanced image enhancement: BLC, HLC, 3D DNR
- Day & night IR cut filter; 0 lux with IR
- Weather protection: IP66
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
The maximum resolution is 2560 × 1440 (4MP).
Yes. It has an IR illuminator with a range of up to 100 m.
It supports excellent low-light performance via Powered-by-DarkFighter technology.
It supports WDR with a value of at least 120 dB.
Pan is 360° endless, and tilt is -15° to 90° with auto flip.
Yes. The camera has an IP66 protection rating.
