DS-2AE5225ITG Hikvision PTZ Dome Analogue Camera
Product Overview

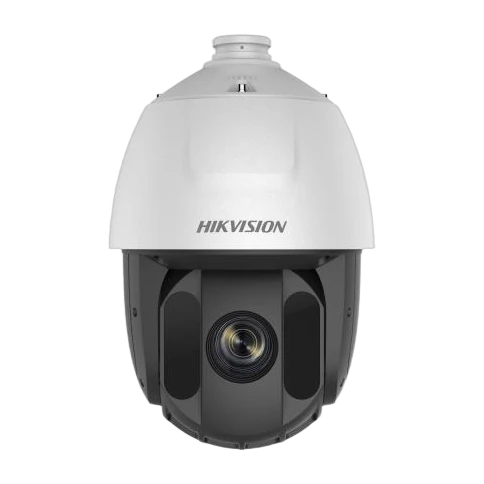

The Hikvision DS-2AE5225ITG is an analogue PTZ (pan/tilt/zoom) dome camera designed for wide-area monitoring with sharp 2MP imaging (1920 × 1080). It uses a 1/2.8″ progressive scan CMOS sensor and supports reliable day and night performance with a built-in IR illuminator. For challenging lighting conditions, the camera delivers clear viewing against strong backlight thanks to 120 dB Wide Dynamic Range (WDR).
For flexible surveillance, the PTZ movement includes 360° endless pan and tilt capability from -15° to 90° with auto flip, making it suitable for tracking zones of interest. With 25x optical zoom, operators can bring distant details closer while keeping coverage broad. IR lighting extends up to 150 m, helping maintain visibility during low-light and night conditions.
The camera also includes features that help improve image quality and usability, including AGC and white balance control, 3D DNR, and backlight compensation options such as BLC and HLC. Privacy masking is supported with 8 programmable masks.
For deployment, the DS-2AE5225ITG is rated IP66 for water and dust resistance and includes lightning/surge and voltage transient protection. It is specified for operation from -30°C to 65°C, making it appropriate for demanding outdoor environments requiring long-range viewing and dependable PTZ control.
Key Features
- 2MP max resolution: 1920 × 1080
- 1/2.8″ progressive scan CMOS sensor
- Min illumination: Color 0.005 Lux (F1.6, AGC ON); B/W 0.001 Lux (F1.6, AGC ON); 0 lux with IR
- 25x optical zoom (16x digital zoom)
- Pan 360° endless; tilt -15° to 90° (auto flip)
- IR supplementary light range up to 150 m
- 120 dB WDR for clear imaging against strong back lighting
- Image enhancement: BLC, HLC, 3D DNR; AGC and white balance
- 256 presets, with preset freezing
- Patrol scan: 10 patrols (up to 32 presets per patrol)
- Pattern scan: 5 patterns (record time over 10 minutes for each scan)
- Privacy masks: 8 programmable privacy masks
- Switchable TVI/AHD/CVI/CVBS (NTSC/PAL composite) video output
- Weather resistant: IP66 (outdoor dome)
- Operating temperature: -30°C to 65°C; humidity 90% or less
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
1920 × 1080 (2MP).
25x optical zoom.
Up to 150 m.
Wide Dynamic Range (WDR) ≥ 120 dB.
Yes. Pan range is 360° endless; tilt range is -15° to 90° (auto flip).
Yes. It is IP66 rated for water and dust resistance and operates from -30°C to 65°C.
