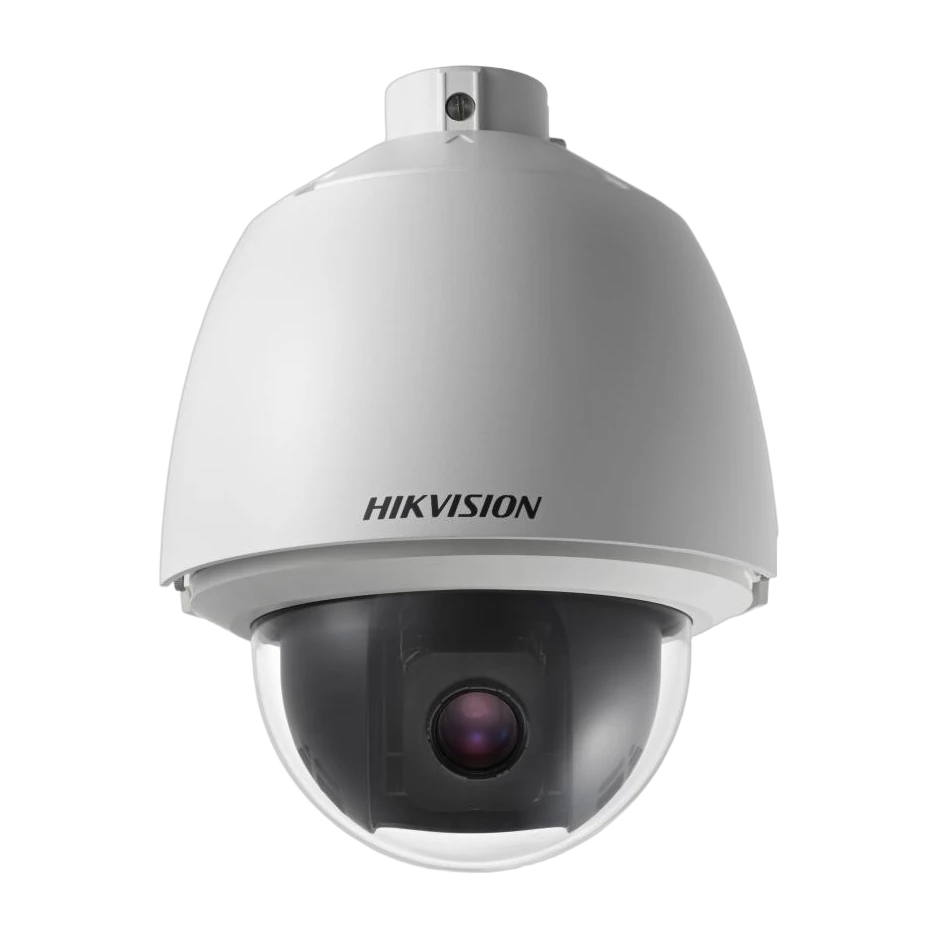

DS-2AE5225TG Hikvision PTZ Dome Analogue Camera
Product Overview
The Hikvision DS-2AE5225TG is an AE PTZ (Pan-Tilt-Zoom) dome camera designed for flexible monitoring of wide outdoor areas. With a 1/2.8″ progressive scan CMOS sensor, it delivers up to 1920 × 1080 (2MP) resolution for clear detail. The camera supports a 25× optical zoom, with an additional 16× digital zoom, letting you bring distant subjects closer without losing critical context.
For challenging lighting conditions, the DS-2AE5225TG includes powered-by-DarkFighter technology for strong low-light performance, and a 120 dB WDR (Wide Dynamic Range) feature to improve visibility in scenes with strong backlighting. Day/Night operation is supported by an IR cut filter for more reliable imaging as light levels change.
PTZ control enables 360° endless pan and a tilt range of -5° to 90° (with auto flip), while offering 256 presets, patrol scanning and pattern scanning for automated coverage. The camera can also freeze on presets and provides park actions for preset/patrol/pattern and scan modes, supporting scheduled tasks and power-off memory for continuity after outages.
With switchable TVI/AHD/CVI/CVBS output and half-duplex RS-485, the DS-2AE5225TG integrates with common Turbo HD/analog systems. Built for outdoor use, it offers IP66 protection and IK10 impact resistance, along with surge and lightning protection.
Key Features
- 2MP (1920 × 1080) max resolution with 1/2.8″ progressive scan CMOS sensor
- Powered-by-DarkFighter technology for excellent low-light performance
- 120 dB WDR for clear imaging against strong back lighting
- 25× optical zoom (4.8 mm to 120 mm) plus 16× digital zoom
- 360° endless pan and -5° to 90° tilt (auto flip)
- 256 presets with preset freezing
- 10 patrols (up to 32 presets per patrol)
- 5 pattern scans (record time over 10 minutes for each scan)
- Day/Night operation with IR cut filter
- Privacy masks (8 programmable privacy masks)
- Switchable TVI/AHD/CVI/CVBS analog video output
- IP66 outdoor dome rating, IK10, TVS 4000 V lightning protection, surge and voltage transient protection
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
It supports up to 1920 × 1080 (2MP).
It offers 25× optical zoom and 16× digital zoom.
Pan is 360° endless, and tilt is -5° to 90° with auto flip.
Yes. It includes ≥120 dB WDR.
Switchable TVI/AHD/CVI/CVBS video output (NTSC or PAL composite, BNC).
IP66 (outdoor dome) and IK10 protection, with TVS 4000 V lightning protection plus surge and voltage transient protection.
