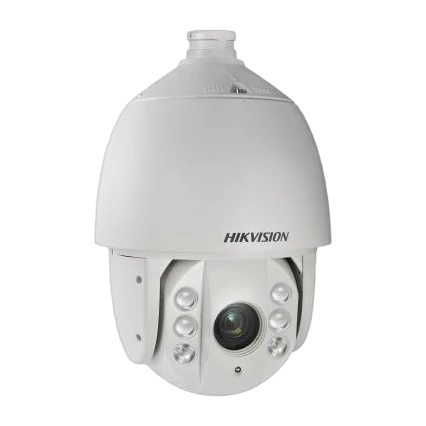

DS-2AE7232ITG Hikvision PTZ Dome Analogue Camera
Product Overview
The Hikvision DS-2AE7232ITG is a 2MP PTZ (pan-tilt-zoom) dome camera designed for wide-area monitoring with detailed imaging and strong low-light performance. With a 1/2.8″ progressive scan CMOS sensor and maximum 1920 × 1080 resolution, it delivers high-quality video suitable for day and night security applications.
For challenging lighting conditions, the camera supports WDR of at least 120 dB, helping maintain clarity when subjects are backlit or exposed to high contrast scenes. To enhance visibility in dark environments, it uses powered-by-DarkFighter technology and an IR illuminator with a rated range of up to 150 m, supporting 0 lux operation with IR.
The PTZ capabilities enable flexible surveillance coverage: it offers 360° endless pan movement and tilt from -15° to 90° (with auto flip). With 32x optical zoom (plus digital zoom), operators can bring distant subjects into closer view for identification and monitoring. The camera includes 256 presets, patrol scan support, pattern scan modes, and configurable park and scheduled actions.
Built for outdoor use, it provides IP66 water/dust resistance and IK10 protection (excluding the glass window). Additional features include privacy masks, 3D DNR for image noise reduction, and BLC/HLC for backlight compensation. Interfaces support switchable video output (TVI/AHD/CVI/CVBS) and RS-485 for control.
Key Features
- 2MP (1920 × 1080) progressive scan CMOS
- Powered-by-DarkFighter low-light performance
- 120 dB WDR for clear imaging in strong backlight
- 32× optical zoom (4.8 mm to 153.6 mm) with ~4.8 s wide-to-tele zoom speed
- IR illuminator range up to 150 m for night surveillance
- 0 lux with IR
- 360° endless pan; tilt -15° to 90° with auto flip
- 256 presets; 10 patrols; pattern scan (5 patterns)
- Supports privacy masks (8 programmable masks)
- Image enhancement: BLC, HLC, 3D DNR
- Switchable TVI/AHD/CVI/CVBS analog video output
- Outdoor rated: IP66 (dome) and IK10 (excluding glass window)
- RS-485 half-duplex control
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 1920 × 1080 (2MP).
The IR supplement light range is up to 150 m.
Yes. It supports 0 lux with IR.
Wide Dynamic Range (WDR) is at least 120 dB.
Pan is 360° endless, and tilt is -15° to 90° (auto flip).
It is rated IP66 (outdoor dome) and IK10 (excluding glass window).
