DS-2CD20166G3-I(U)Y Hikvision Bullet IP Camera
Product Overview

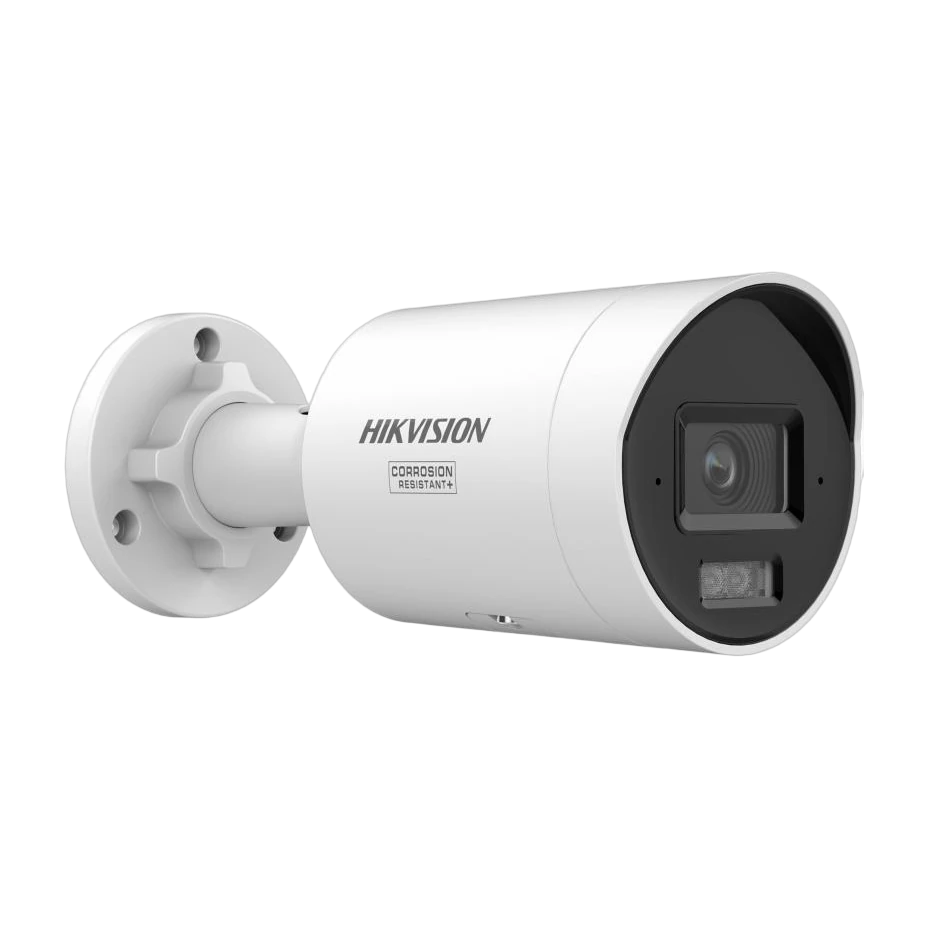

The Hikvision DS-2CD20166G3-I(U)Y is a 16MP fixed bullet network IP camera designed for clear, detailed video capture day and night. Powered by DarkFighter technology delivers excellent low-light performance, while the camera supports IR illumination with a supplement light range of up to 40 meters (850 nm). For challenging lighting conditions, it includes 130 dB true WDR to help maintain image clarity against strong backlight.
Built for outdoor installations, the camera is rated IP67 for water and dust resistance and features anti-corrosion design with MODERATE protection, offering greater reliability and longevity compared with standard NEMA 4X. The durable metal front cover, metal body, and metal bracket support harsh environments.
For intelligent monitoring, the camera uses deep learning with person and vehicle classification, plus smart event capabilities such as perimeter protection (line crossing, intrusion, region entrance, and region exiting) and motion detection that can trigger alarms based on specified target types (human and vehicle). It also supports basic events like video tampering and exception alerts.
For flexibility in deployment, the camera offers selectable fixed lens options (2.8 mm, 4 mm, and 6 mm). Network and integration features include ONVIF support, simultaneous live view up to 6 channels, and onboard microSD support up to 512 GB for local recording. It can be powered via 12 VDC or PoE (IEEE 802.3af, Class 3).
Key Features
- 16MP UHD fixed bullet network camera (max resolution 4608 × 3456)
- Powered by DarkFighter for excellent low-light performance
- IR supplement light up to 40 m (850 nm) with Smart Supplement Light
- 130 dB true WDR for clear imaging against strong backlight
- Person and vehicle classification based on deep learning
- Perimeter protection: line crossing, intrusion, region entrance, region exiting
- Motion detection with alarm triggering by specified target types (human and vehicle)
- IP67 water/dust resistance rating
- Anti-corrosion design with MODERATE protection (NEMA 4X)
- Built-in microSD/microSDHC/microSDXC slot (up to 512 GB)
- Multiple stream support with H.265/H.264 codecs
- Power options: 12 VDC or PoE (IEEE 802.3af, Class 3)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 4608 × 3456.
The IR supplement light range is up to 40 m.
Yes. It supports 130 dB true WDR.
It includes deep learning for person and vehicle classification, face capture, and perimeter protection (line crossing, intrusion, region entrance, region exiting).
Yes. It is rated IP67 for water and dust resistance and has anti-corrosion (moderate protection) design.
It supports NAS recording (NFS/SMB-CIFS) and local storage via built-in microSD card slot up to 512 GB.
