DS-2CD2047G2H-LIU Hikvision Bullet IP Camera
Product Overview

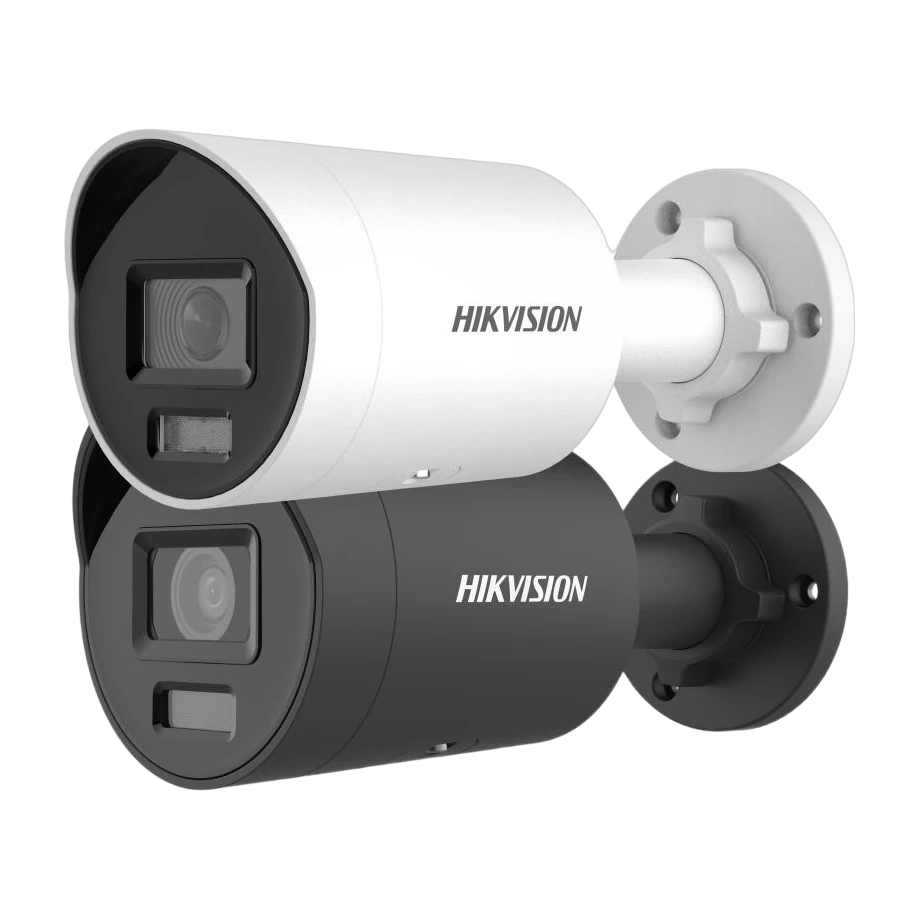

The Hikvision DS-2CD2047G2H-LIU is a 4MP fixed mini bullet network camera designed for clear imaging and smart detection. It uses a 1/1.8″ progressive scan CMOS sensor and provides a maximum resolution of 2688 × 1520. For challenging lighting conditions, the camera supports 130 dB WDR, helping deliver clearer views against strong back light.
For efficient video recording and streaming, it supports H.265+ compression (and H.265/H.264 options depending on stream), with bit rate control using CBR/VBR. Multiple streams are available, including a third stream that is supported under certain settings. The camera features deep learning-based classification focused on human and vehicle detection, helping reduce false alarms and improving event relevance.
Illumination performance is enhanced with a Smart Hybrid Light system that combines IR and white light. The supplemental illumination range is up to 40 m, using 850 nm IR wavelength, making it suitable for both night-time monitoring and scenarios where color detail is beneficial.
Audio support is available via an optional “-U” variant with built-in microphone for real-time audio security. The camera is built for outdoor use with IP67 water and dust resistance and is powered via 12 VDC (±25%) or PoE (IEEE 802.3af). Smart events include face capture, perimeter protection (line crossing, intrusion, region entrance/exit), and motion/tampering/exception alarms with linkage actions such as FTP/NAS upload and email notification.
Key Features
- 4MP (2688 × 1520) fixed mini bullet IP network camera
- Smart Hybrid Light illumination with IR and white light
- Up to 40 m supplement light range (IR wavelength 850 nm)
- 130 dB WDR for clear imaging against strong back light
- H.265+ efficient compression support
- Deep learning classification for human and vehicle detection
- Face capture and perimeter protection (line crossing, intrusion, region entrance/exit)
- Motion detection with target-type alarm triggering (human and vehicle)
- -U variant supports built-in microphone (real-time audio security)
- IP67 water and dust resistance
- PoE (IEEE 802.3af) and 12 VDC power support
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
The maximum resolution is 2688 × 1520 (4MP).
Yes. It supports 130 dB WDR.
It uses Smart Hybrid Light with both IR and white light.
Up to 40 m.
The “-U” variant includes a built-in microphone for real-time audio security; the datasheet lists audio compression for the -U option.
It has IP67 protection (water and dust resistant).
