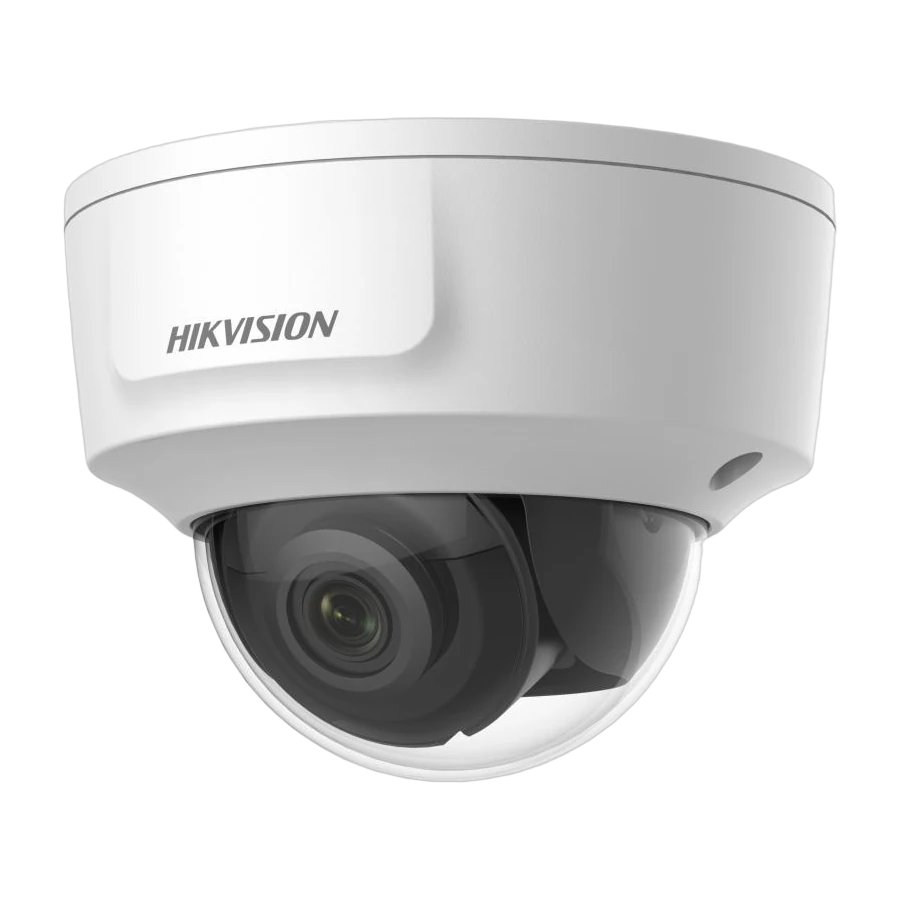

DS-2CD2126G2-IMS Hikvision Dome IP Camera
Product Overview
The Hikvision DS-2CD2126G2-IMS is a 2 MP fixed dome network (IP) camera designed for reliable everyday surveillance with direct high-definition viewing support. It uses a 1/2.8″ progressive scan CMOS sensor to deliver up to 1920 × 1080 resolution, with a shutter range from 1/3 s to 1/100,000 s for flexible exposure control. For scenes with harsh lighting, the camera provides 120 dB true WDR to help maintain clear image detail against strong backlight.
For recording and streaming efficiency, the camera supports H.265+ compression (along with H.265/H.264/H.264+ depending on stream) and provides multiple stream outputs including a third stream under certain settings. Live viewing can be performed via HDMI output for direct HD monitoring.
Night performance is supported by an IR illuminator with a range up to 30 m (850 nm). The camera includes a smart IR function to help adapt illumination to changing conditions.
The DS-2CD2126G2-IMS is built with full metal materials and is vandal resistant (IK10), making it suitable for demanding installations. Additional on-board features include built-in microSD storage (up to 512 GB), privacy masks, and event capabilities such as motion detection and smart scene change detection. Deep learning functions include face capture and perimeter protection for human/vehicle related detections. Security features include password protection, HTTPS encryption, and TLS 1.3 support.
Key Features
- 2 MP (up to 1920 × 1080) imaging
- 1/2.8″ progressive scan CMOS sensor
- H.265+ compression technology (also supports H.265/H.264 variants by stream)
- 120 dB true WDR for clear backlight performance
- Direct HD live view with HDMI output (1 × D HDMI, HDMI 1.4)
- Fixed 2.8 mm lens (horizontal FOV: 106°)
- IR night illumination up to 30 m (850 nm) with Smart IR
- Full metal construction
- Vandal proof (IK10)
- Built-in microSD slot for storage up to 512 GB
- Multiple streaming support (main/sub/third stream under certain settings)
- Privacy masks (4 programmable polygon privacy masks)
- Events: motion detection, video tampering alarm, exception, smart scene change detection
- Deep learning: face capture; perimeter protection (line crossing/intrusion/region entrance/exit) with human/vehicle triggering
- Network security: password protection, HTTPS encryption, TLS 1.3, 802.1X authentication
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
Max resolution is 1920 × 1080 (2 MP).
Yes. It supports 120 dB true WDR.
The IR illuminator range is up to 30 m.
Fixed focal lens, 2.8 mm (M12 mount, aperture F1.4).
It has a built-in memory card slot supporting microSD/microSDHC/microSDXC up to 512 GB, and supports NAS via network storage.
Yes. It is vandal proof (IK10).
