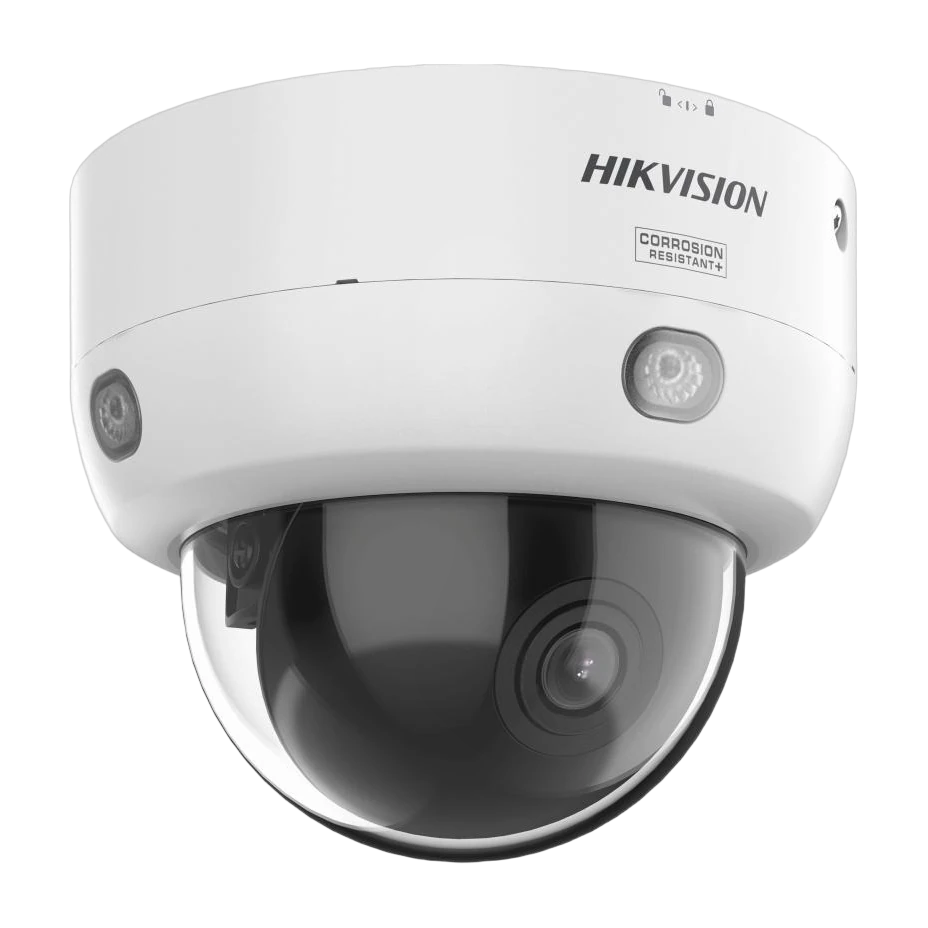

DS-2CD2143G2-LIPTRZ(S2U)Y Hikvision Dome IP Camera
Product Overview
The Hikvision DS-2CD2143G2-LIPTRZ(S2U)Y is a 4 MP AcuSense PTZ dome network camera built for versatile day and night surveillance. It features motorized Pan/Tilt/Rotate with Zoom, making it easier to install and monitor wide areas while maintaining target focus. The camera uses a varifocal motorized lens with a 2.8 to 4 mm range and supports remote lens adjustment.
For image quality, the camera provides true 120 dB WDR to help maintain detail in challenging lighting conditions, along with 3D DNR, BLC and HLC. Deep-learning based AcuSense features support person and vehicle classification, and perimeter protection functions such as line crossing, intrusion, and region entrance/exit—helping reduce false alarms.
Smart hybrid lighting includes supplemental illumination modes: Smart Mode, IR Mode, and White Light Mode, with an IR wavelength of 850 nm and an illuminator range up to 30 m. Audio support is available for the -2U variant (mono sound and arrayed dual-mic). The camera uses efficient H.265+ compression to help optimize bandwidth while supporting multiple video streams.
Designed for harsh environments, the housing is IP67 and IK10 rated, with anti-corrosion protection (NEMA 4X). The camera also supports network storage options and ONVIF interoperability, and includes built-in microSD storage up to 512 GB.
Key Features
- 4 MP AcuSense PTRZ dome network camera
- Motorized Pan/Tilt/Rotate/Zoom for easy installation and monitoring
- 2.8/4 mm in one lens with point varifocal (motorized varifocal lens)
- True 120 dB WDR for clear imaging against strong backlight
- Person and vehicle classification based on deep learning
- Perimeter protection: line crossing, intrusion, region entrance, region exiting
- Smart hybrid supplemental lighting modes: Smart Mode, IR Mode, White Light Mode
- Supplement light range up to 30 m; IR wavelength 850 nm; Smart supplemental light enabled
- Arrayed dual-mic crystal-clear audio for -2U variant (only -2U)
- Efficient H.265+ compression technology
- IP67 water/dust resistant and IK10 vandal resistant
- Anti-corrosion design NEMA 4X (moderate protection level)
- Built-in microSD slot up to 512 GB; NAS/ANR supported
- Audio and alarm interface available only for -S variant
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 2688 × 1520.
Yes. It supports motorized pan, tilt, rotate, and zoom.
It uses a motorized varifocal lens from 2.8 to 4 mm (2.8 mm and 4 mm FOV values are provided).
Supplemental lighting modes include Smart Mode, IR Mode, and White Light Mode.
The supplemental light range is up to 30 m.
It is rated IP67 for water and dust resistance and IK10 for vandal resistance.
