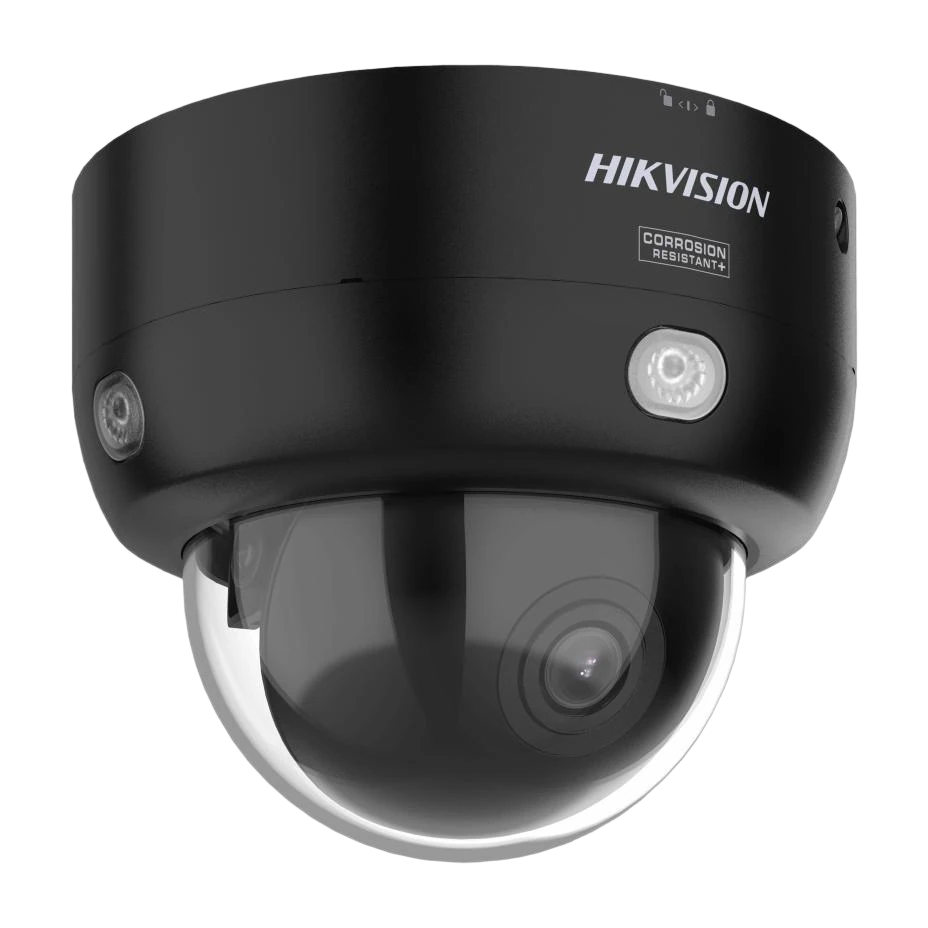

DS-2CD2146G3-IPTRZS2UY Hikvision Dome IP Camera
Product Overview
The Hikvision DS-2CD2146G3-IPTRZS2UY is a 4MP AcuSense PTZ dome network camera designed for reliable long-distance monitoring with motorized Pan/Tilt/Rotate and Zoom (PTRZ). It supports 2688 × 1520 maximum resolution for clear detail and is optimized for challenging lighting conditions with true 130 dB Wide Dynamic Range (WDR), helping maintain image clarity against strong back light. The camera is powered by DarkFighter technology for excellent low-illumination performance, and includes IR illumination with a supplement light range up to 30 meters.
For intelligent detection, the camera uses deep learning–based Person and Vehicle classification, enabling event triggering for motion detection (including specified target types such as human and vehicle) and supporting perimeter protection features like line crossing, intrusion, and region entrance/exit. The AcuSense functions help reduce false alarms by focusing on relevant targets.
Video compression is handled efficiently through H.265+ technology (and H.265/H.264 options), providing bandwidth-friendly streaming with configurable bitrates. For audio monitoring, the -2U variant includes arrayed dual microphones (mono sound). The unit is built for demanding environments with IP67 weather resistance, IK10 vandal resistance, and NEMA 4X anti-corrosion design, making it suitable for indoor/outdoor installations. With efficient network features, on-board microSD support up to 512GB, and broad compatibility with major client platforms, this PTZ dome camera is built for scalable security deployments.
Key Features
- 4 MP (2688 × 1520) resolution with PTRZ motorized Pan/Tilt/Rotate/Zoom
- 2.8/4 mm in one lens, point varifocal
- Powered by DarkFighter for excellent low illumination performance
- Person and vehicle classification based on deep learning (AcuSense)
- Crystal-clear audio with Arrayed Dual-Mic (only -2U)
- 130 dB true WDR for clear imaging against strong back light
- H.265+ compression technology
- IR supplement light up to 30 m (850 nm) with smart supplement light support
- IP67 water/dust resistant and IK10 vandal resistant
- Anti-corrosion design (NEMA 4X) for improved reliability
- Audio and alarm interface available (only –S)
- Built-in memory card slot for microSD/microSDHC/microSDXC up to 512 GB
- Deep learning function includes face capture (Yes)
- Perimeter protection: line crossing, intrusion, region entrance, region exiting
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 2688 × 1520 (4MP).
It uses a varifocal, motorized lens from 2.8 to 4 mm (point varifocal with 2.8/4 mm in one lens).
Yes. It is Powered by DarkFighter and includes IR illumination for night viewing.
The IR supplement light range is up to 30 m.
It supports 130 dB true WDR.
It is rated IP67 (water and dust resistant) and IK10 (vandal resistant), with anti-corrosion protection NEMA 4X.
