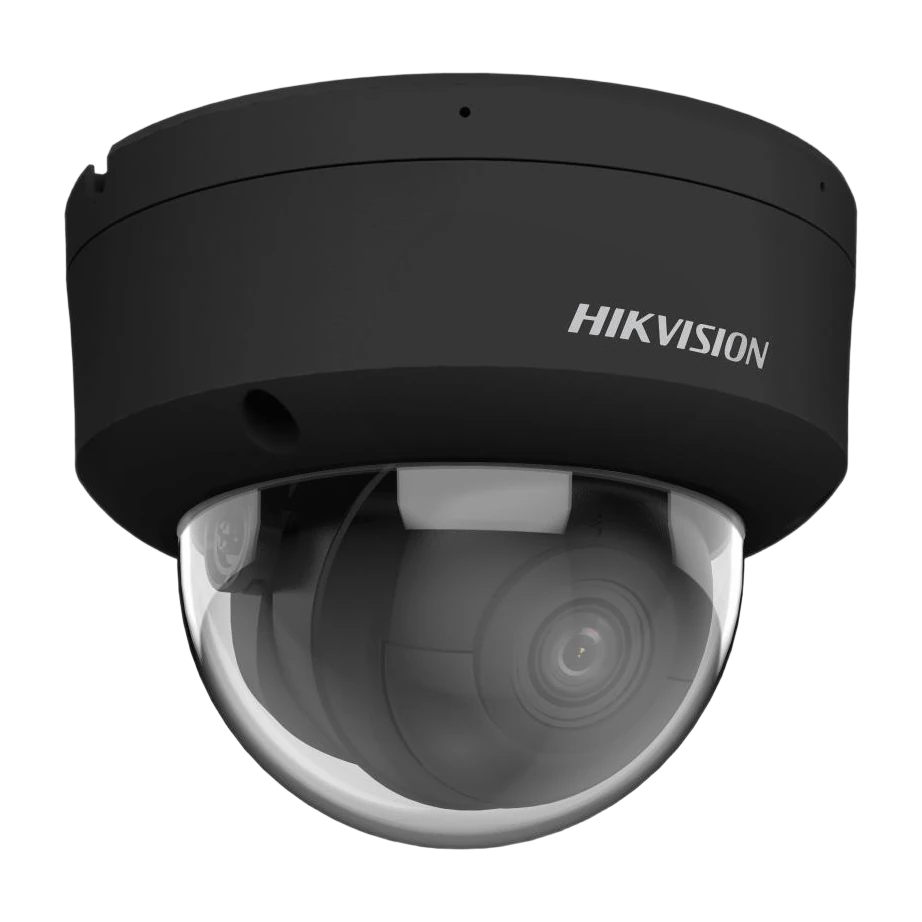

DS-2CD2166G2H-I(SU) Hikvision Dome IP Camera
Product Overview
The Hikvision DS-2CD2166G2H-I(SU) is a 6MP fixed dome IP network camera designed for high-quality surveillance in both bright and low-light conditions. It uses a 1/2.4″ progressive scan CMOS sensor to deliver up to 3200 × 1800 resolution for detailed monitoring. Powered-by-DarkFighter technology provides excellent low-light performance, while an IR illuminator (850 nm) supports night imaging up to 30 m. For scenes with difficult lighting, the camera features 120 dB true WDR to help maintain clear details against strong backlight.
For efficient storage and streaming, the camera supports H.265+ compression along with H.265/H.264 options, including multi-stream operation. Video encoding includes scalable video coding (SVC) and region of interest (ROI) support. Deep learning functionality focuses on human and vehicle classification, and smart alerts can be triggered for perimeter protection scenarios such as line crossing, intrusion, region entrance and region exiting.
The DS-2CD2166G2H-I(SU) also includes security and operational features such as password protection, HTTPS encryption, TLS 1.1/1.2/1.3, and watermarking. Audio is supported via a built-in microphone (-U variant). With an IP67 weather rating and IK10 vandal resistance, this fixed dome camera is built for demanding outdoor installations. Optional lens choices include 2.8 mm or 4 mm fixed focal lenses.
Key Features
- 6MP (max 3200 × 1800) fixed dome network camera
- Powered-by-DarkFighter low-light performance
- 120 dB true WDR for clear imaging in strong backlight
- H.265+ efficient compression technology (also supports H.265/H.264)
- Deep learning: human and vehicle classification
- IR illuminator (850 nm) up to 30 m
- Smart perimeter protection: line crossing, intrusion, region entrance/exit
- Built-in microphone in -U variant (real-time audio security)
- Weather resistant IP67 and vandal-resistant IK10
- Flexible installation with fixed lens options (2.8 mm or 4 mm)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
The maximum resolution is 3200 × 1800.
The IR illuminator supports a supplement light range of up to 30 m.
Yes. It supports 120 dB true WDR.
It supports H.265/H.264/H.265+/H.264+ for the main stream (and H.265/H.264/MJPEG for the sub-stream; third stream support depends on settings).
It supports focus on human and vehicle classification based on deep learning, including smart perimeter protection (line crossing, intrusion, region entrance, region exiting).
Yes. It is water and dust resistant (IP67) and vandal-resistant (IK10).
