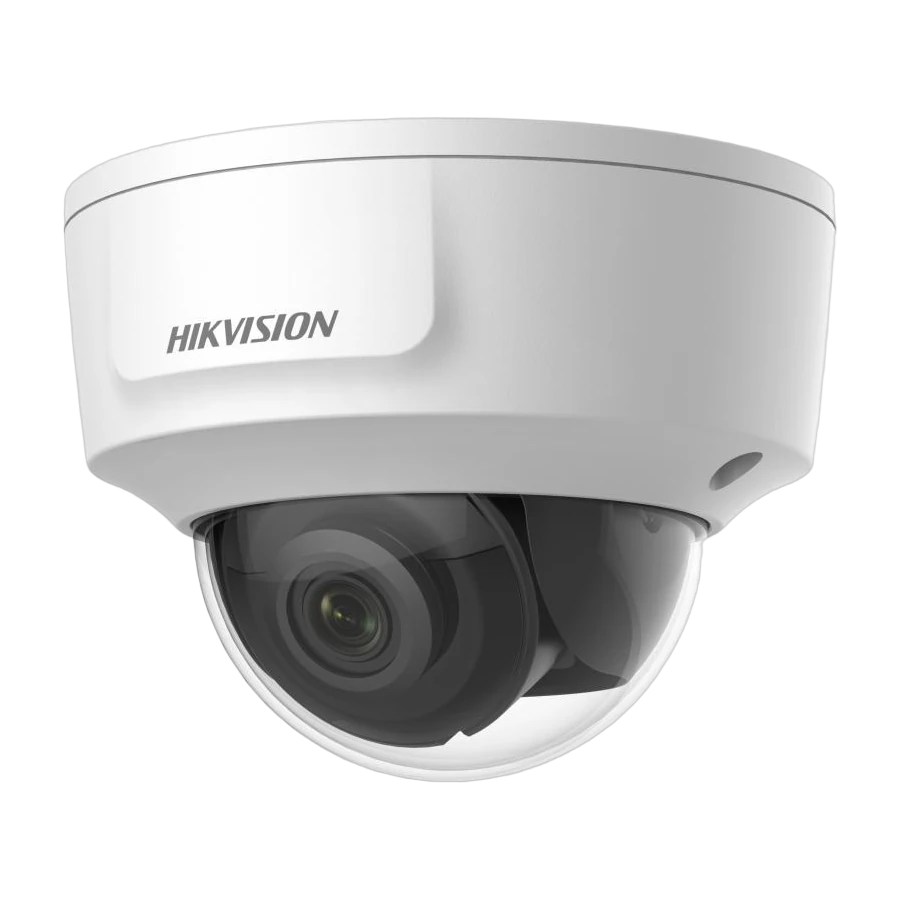

DS-2CD2186G2-IMS Hikvision Dome IP Camera
Product Overview
The Hikvision DS-2CD2186G2-IMS is a 4K fixed focal dome network camera designed for high-quality, detailed monitoring. Featuring an 1/1.8″ progressive scan CMOS sensor and a maximum resolution of 3840 × 2160 (8 MP), it delivers crisp images for general surveillance and perimeter protection applications. The camera supports efficient H.265+ compression to help reduce bandwidth and storage while maintaining image quality.
To handle challenging lighting conditions, the camera includes true 130 dB WDR for clearer imaging against strong backlight. Day/Night operation is supported with an IR cut filter, and an IR illuminator provides night-time visibility up to 30 meters at 850 nm. A smart IR function and smart detection features help improve event reliability.
For installation and practical usability, the DS-2CD2186G2-IMS offers a direct HD live view with HDMI output, alongside network streaming with support for multiple simultaneous channels. It includes mono audio (line in/line out) and alarm I/O for integration with external devices. Built with full metal materials and designed to be vandal resistant to IK10, the camera is suitable for robust indoor or outdoor mounting where durability is required.
Security, network storage, and standards-based connectivity are supported via ONVIF (Profile S/G/T) and iVMS-4200, Hik-Connect, and Hik-Central client software. With built-in microSD slot (up to 512 GB), it supports flexible recording and event workflows.
Key Features
- 8 MP (3840 × 2160) maximum resolution
- Fixed focal lens, 2.8 mm (horizontal FOV 108°)
- True 130 dB WDR for backlight compensation
- Efficient H.265+ compression technology
- Direct HD live view with HDMI output (HDMI 1.4)
- Vandal proof design (IK10)
- Built with full metal materials
- IR illuminator up to 30 m (850 nm) with Smart Supplement Light
- Day/Night operation with IR cut filter
- Supports multiple streams (main/sub/third under certain settings)
- ONVIF support (Profile S, Profile G, Profile T) and ISAPI/SDK/ISUP
- Built-in memory card slot (microSD/microSDHC/microSDXC), up to 512 GB
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
The maximum resolution is 3840 × 2160 (8 MP).
Yes. It supports true 130 dB WDR.
IR illuminator range is up to 30 m.
A fixed focal lens with 2.8 mm focal length.
Yes. It has a 1-channel D HDMI interface for HD live view.
The camera is rated IK10 (vandal proof).
