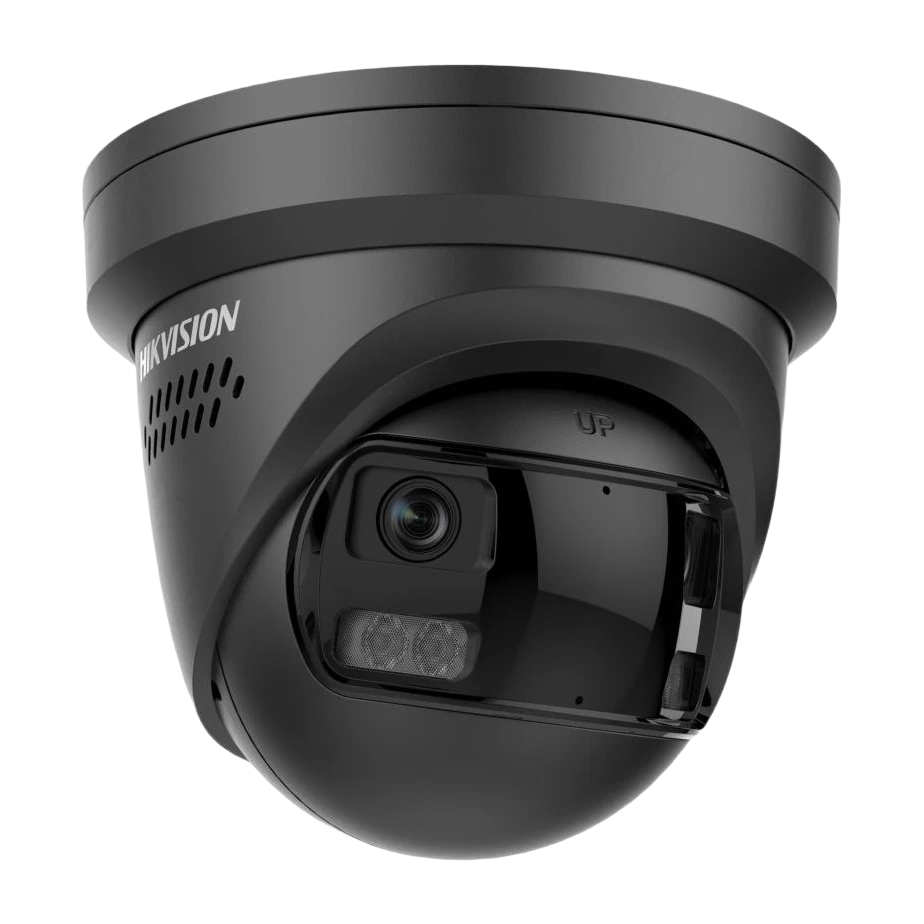

DS-2CD23127G3P-LIS2UY/S(L)(RB) Hikvision Turret IP Camera
Product Overview
The Hikvision DS-2CD23127G3P-LIS2UY/S(L)(RB) is a 12 MP panoramic fixed turret network camera designed for high-detail, wide-area monitoring with ColorVu 3.0 imaging. It provides an immersive 180° panoramic view, capturing UHD-level clarity with a maximum resolution of 5200 × 2320 and lifelike color performance with 24/7 colorful imaging. Built for challenging lighting conditions, the camera supports 130 dB Wide Dynamic Range (WDR) to help maintain clarity against strong backlight.
For low-light operation, the camera includes White light and IR light supplementing, along with Smart Hybrid Light modes for adaptable illumination. The datasheet also highlights HikAI-ISP for excellent noise reduction, improving image quality in difficult scenes. On top of advanced imaging, deep-learning based analytics enable person and vehicle classification and perimeter protection features such as line crossing, intrusion, region entrance, and region exiting.
Audio and deterrence capabilities include a built-in arrayed dual-microphone (−2U) and an audio/alarm interface with alarm input and output. The camera supports an active strobe light and audio alarm to warn trespassers off.
The camera is built for durability with dust and water resistance rated IP67 and anti-corrosion protection (NEMA 4X), making it suitable for outdoor and harsh environments. Network features include PoE support (IEEE 802.3at) and simultaneous live view up to 6 channels, with ONVIF compatibility and support for NAS storage and Hikvision client platforms.
Key Features
- 12 MP (max 5200 × 2320) panoramic fixed turret network camera
- 180° panoramic view
- UHD imaging for high-detail coverage
- 24/7 colorful imaging with ColorVu 3.0 technology
- HikAI-ISP for noise reduction
- 130 dB WDR for clear imaging against strong backlight
- White light, IR light, and Smart Hybrid Light modes
- Supplement light range up to 30 m; IR wavelength 850 nm
- Deep learning: person and vehicle classification
- Perimeter protection: line crossing, intrusion, region entrance, region exiting
- Active strobe light and audio alarm to warn trespassers
- Arrayed dual-microphone (-2U) with crystal-clear audio
- Built-in speaker (max 2 W; up to 110 dB at 10 cm)
- Audio: alarm input 1 / alarm output 1 (max 24 VDC/24 VAC, 1 A)
- Anti-corrosion design: NEMA 4X
- Dust and water resistant: IP67
- Built-in microSD card slot (up to 512 GB)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 5200 × 2320 (12 MP).
Yes. It supports 24/7 colorful imaging via ColorVu 3.0 technology.
The camera offers a 180° panoramic view.
The supplement light range is up to 30 m.
It supports 130 dB Wide Dynamic Range (WDR).
Yes. It is IP67 dust and water resistant and has anti-corrosion protection (NEMA 4X).
