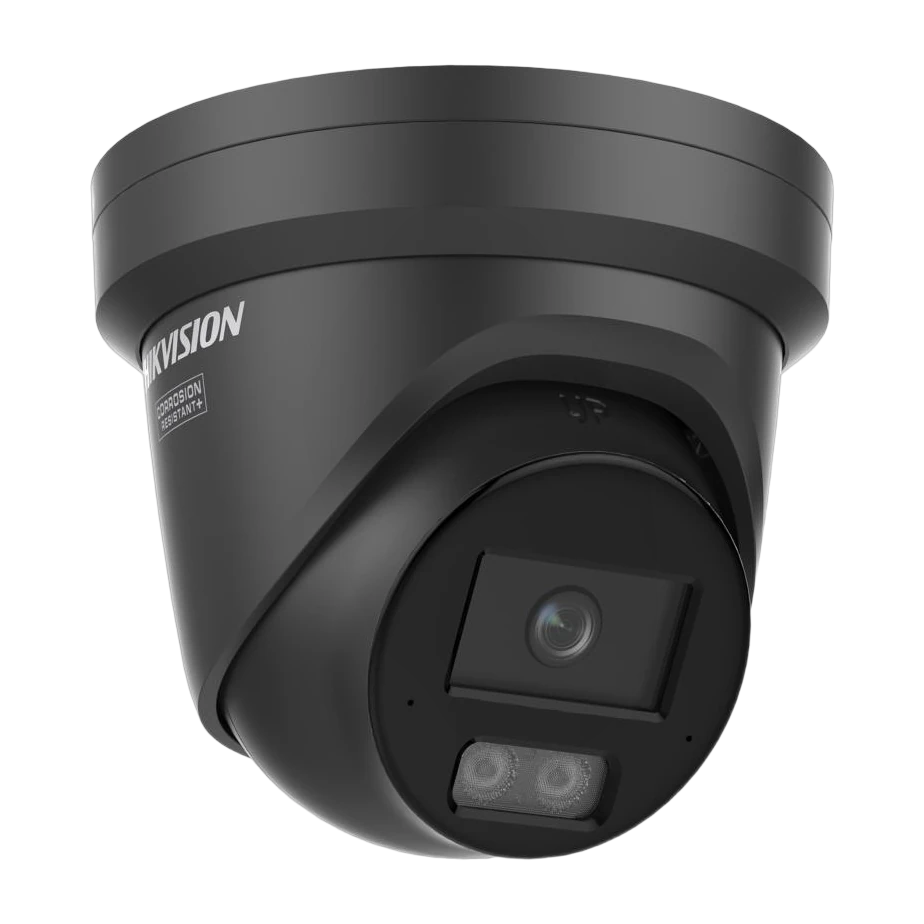

DS-2CD23166G3-I(2U)Y Hikvision Turret IP Camera
Product Overview
The Hikvision DS-2CD23166G3-I(2U)Y is a 16MP AcuSense Powered by DarkFighter fixed turret network camera designed for reliable perimeter monitoring with strong low-light performance. It delivers UHD ultra high definition imaging at up to 4608 × 3456 resolution, with an IR-cut day/night system for consistent operation across lighting conditions. Powered by DarkFighter technology supports excellent low-light visibility, while the camera includes an integrated IR illuminator (850 nm) with a supplement light range up to 40 m. For challenging lighting situations, the camera uses 130 dB true WDR technology to improve image clarity against strong backlight.
The camera supports deep-learning-based classification and AcuSense smart functions, including person and vehicle classification, line crossing, intrusion, region entrance and region exiting, and alarm triggering based on specified target types. It also provides smart scene change detection and standard motion detection with tampering and exception alarms. Built-in audio capability is available for the -2U model through a mono arrayed dual-microphone, supporting audio filtering to help reduce environment noise.
For connectivity and recording, it supports multiple streams and common network protocols, with ONVIF profiles available. Integrated storage supports microSD/microSDXC cards up to 512 GB. The camera is engineered for outdoor use with IP67 water-and-dust resistance and anti-corrosion protection (NEMA 4X), offering durable performance and longevity.
Key Features
- 16MP UHD resolution: up to 4608 × 3456
- Powered by DarkFighter for excellent low-light performance
- Person and vehicle classification based on deep learning (AcuSense)
- Fixed turret design (fixed focal lens 2.8 mm or 4 mm optional)
- 130 dB true WDR for clear imaging in strong back light
- IR illuminator (850 nm) with supplement range up to 40 m
- Audio (for -2U model): mono arrayed dual-microphone and noise filtering
- Built-in array dual-mic (-2U models) and crystal-clear audio
- IP67 weather and dust resistance and anti-corrosion design (NEMA 4X)
- Deep learning perimeter protection: line crossing, intrusion, region entrance/exit
- Built-in memory card slot supporting microSD/microSDHC/microSDXC up to 512 GB
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
The camera supports a maximum resolution of 4608 × 3456.
Yes. It is Powered by DarkFighter and includes an IR illuminator with 850 nm wavelength.
The IR supplement light range is up to 40 m.
It uses 130 dB true WDR to provide clear imaging against strong back light.
AcuSense deep learning functions include person and vehicle classification and perimeter protection such as line crossing, intrusion, and region entrance/exit.
Yes. The -2U model includes a built-in mono arrayed dual-microphone and environment noise filtering.
