DS-2CD23166G3-IS2UY/S(L)(RB) Hikvision Turret IP Camera

SKU: DS-2CD23166G3-IS2UY/S Category:
unknown
Resolution
Smart Hybrid Light
Night Vision
40M
Night Vision Range
IP Camera
Device Type

Product Overview

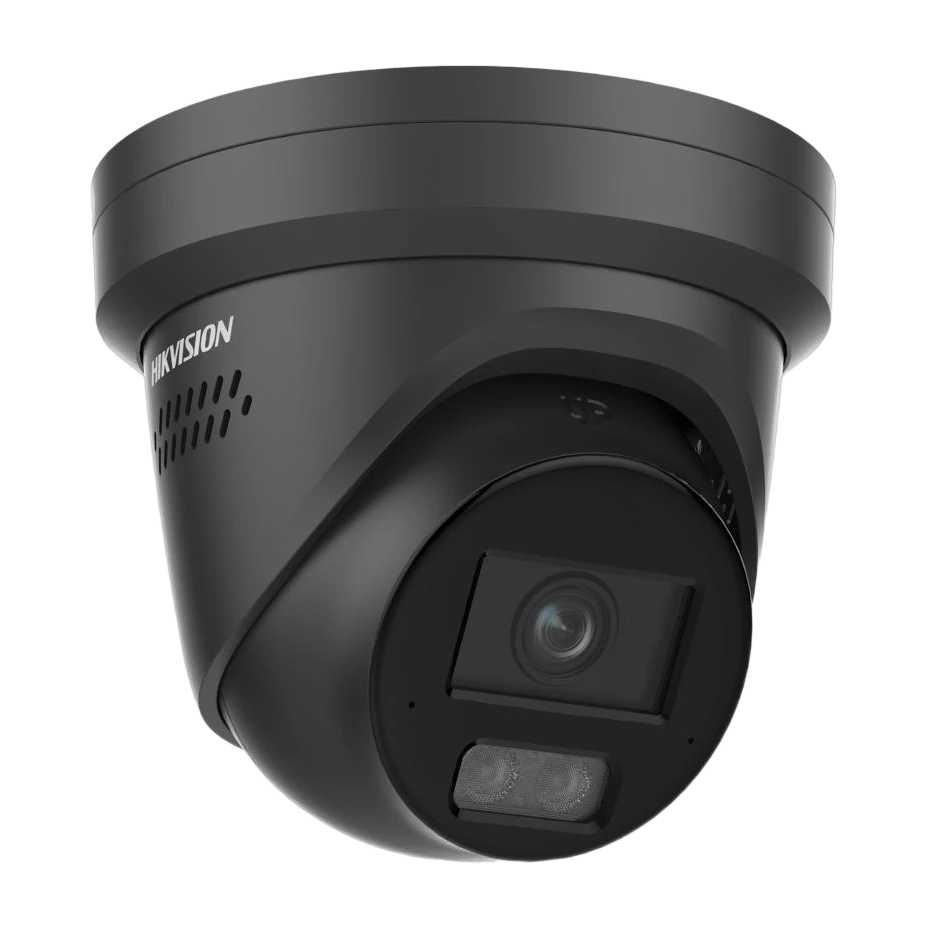

The Hikvision DS-2CD23166G3-IS2UY/S(L)(RB) is a 16MP fixed turret network IP camera designed for 24/7 vivid monitoring. Built on Hikvision ColorVu technology, it provides ColorVu color imaging for improved visibility in low light, supported by an F1.0 lens design and advanced sensor utilization. For strong backlight scenes, the camera features 130 dB true WDR to help preserve detail where contrast is high.

This model includes AcuSense 3.0 deep learning capabilities for person and vehicle classification, along with perimeter protection functions such as line crossing, intrusion, region entrance, and region exiting. When motion or smart events occur, the camera can trigger multiple actions including audio and strobe warning, uploads to storage, and notification to a surveillance center.

Audio performance is supported by a built-in arrayed dual-microphone and a Smart PA speaker, enabling clear two-way-style warning and alerts. The camera also offers event linkage options such as audible warning and strobe light flashing.

For connectivity and storage, it supports ONVIF (Profile S/G/T), iVMS-4200, Hik-Connect, and Hik-Central, with network storage options via NAS (NFS/SMB/CIFS) and built-in microSD/memory card slot up to 512 GB. The camera is engineered for outdoor installation with IP67 water and dust resistance, metal cover and main body, and anti-corrosion design for long-term reliability.

Key Features

  • 16MP (4608 × 3456) ultra high definition resolution
  • ColorVu technology for 24/7 vivid colorful images
  • AcuSense 3.0 deep learning for person and vehicle classification
  • Smart perimeter protection: line crossing, intrusion, region entrance, region exiting
  • 130 dB true WDR for clear imaging in strong backlight
  • Active strobe light and audio alarm (/SL: white light, /SRB: red & blue light)
  • Built-in arrayed dual-microphone and Smart PA speaker for audible warnings
  • Powered by DarkFighter for excellent low-light performance
  • IR supplement light with 850 nm (up to 40 m)
  • EIS image stabilization
  • Privacy masks (4 programmable polygon privacy masks)
  • Video compression: H.265/H.264 with ROI and SVC
  • Built-in microSD/microSDHC/microSDXC support up to 512 GB
  • IP67 rated and anti-corrosion metal construction

Watch Product Videos

Watch real demos, setup guides, night-vision tests, and feature highlights for this model.

Downloads

Access datasheets, manuals, and user guides for this product.

File
Action
Data Sheet PDF

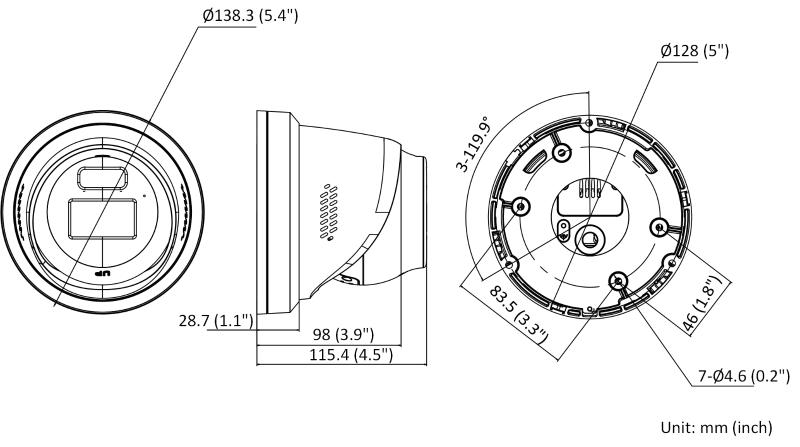

Dimensions PNG

Where to Find This Product

View trusted supplier listings, product references, and availability status for this model.

Dynamic CCTV Code: DS-2CD23166G3-IS2UY/S
Available
ADI Code: DS-2CD23166G3-IS2UY/S
Available
