DS-2CD2346G3-IZ(2U)Y Hikvision Turret IP Camera
Product Overview

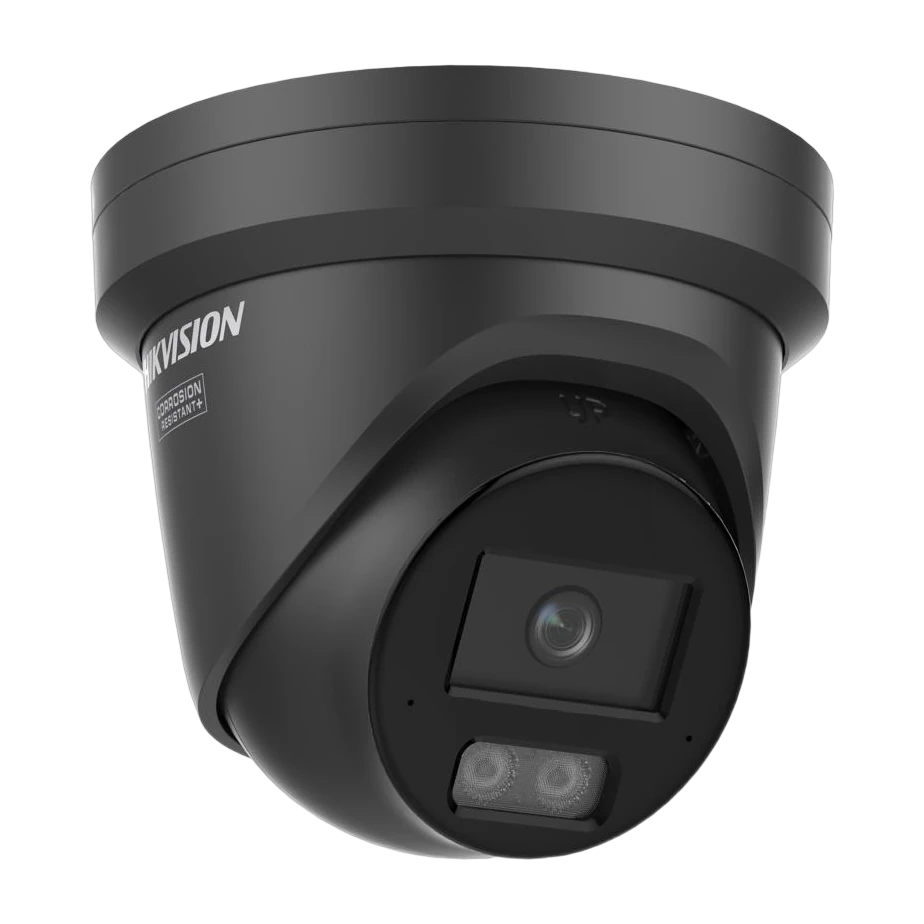

The Hikvision DS-2CD2346G3-IZ(2U)Y is a 4 MP AcuSense motorized varifocal turret network camera designed for clear imaging in both day and night conditions. It uses a 1/3″ progressive scan CMOS sensor with a maximum resolution of 2688 × 1520 for high-detail monitoring. The motorized varifocal lens supports 2.8 to 4 mm for flexible framing, with horizontal fields of view of 99.3° (2.8 mm) and 80.0° (4 mm).
For low-light performance, this model is Powered by DarkFighter and includes an IR illuminator (850 nm) with smart supplement lighting, providing an IR range up to 30 m. Day and night operation is supported with an IR cut filter.
The camera includes AcuSense deep-learning capabilities to classify human and vehicle targets, helping reduce false alarms when paired with motion detection and smart event functions. Audio support is included with arrayed dual microphones, providing crystal-clear mono sound.
With IP67 water and dust resistance and an anti-corrosion design (NEMA 4X, moderate protection), the camera is suitable for outdoor installations. The turret design also supports full pan rotation (0° to 360°) with tilt up to 75°, plus 3 programmable polygon privacy masks. Network features include ONVIF support and built-in microSD storage (up to 512 GB) with security features such as HTTPS/TLS encryption and security audit logging.
Key Features
- 4 MP (max 2688 × 1520) progressive scan CMOS
- AcuSense: person and vehicle classification using deep learning
- Motorized varifocal lens (2.8 to 4 mm)
- Powered by DarkFighter low-light performance
- IR illuminator (850 nm) up to 30 m with Smart Supplement Light
- Crystal-clear audio with arrayed dual microphones (built-in)
- Day/Night with IR cut filter
- Water and dust resistant IP67; anti-corrosion design (NEMA 4X, moderate protection)
- Turret pan 0° to 360°, tilt 0° to 75°, rotate 0° to 360°
- Wide Dynamic Range (WDR) 130 dB
- H.265/H.264 video compression with ROI (1 fixed region for main stream)
- Built-in microSD slot supporting up to 512 GB
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 2688 × 1520.
Yes. It is a motorized varifocal lens with focal length 2.8 to 4 mm.
The IR illuminator range is up to 30 m.
AcuSense deep learning supports person and vehicle classification, and motion detection can trigger alarms by specified target types (human and vehicle).
Yes. It has IP67 water and dust resistance and an anti-corrosion design (NEMA 4X), with the model listed as MODERATE PROTECTION.
Yes. It has built-in microphones (2U version: 2 built-in microphones) supporting mono sound.
