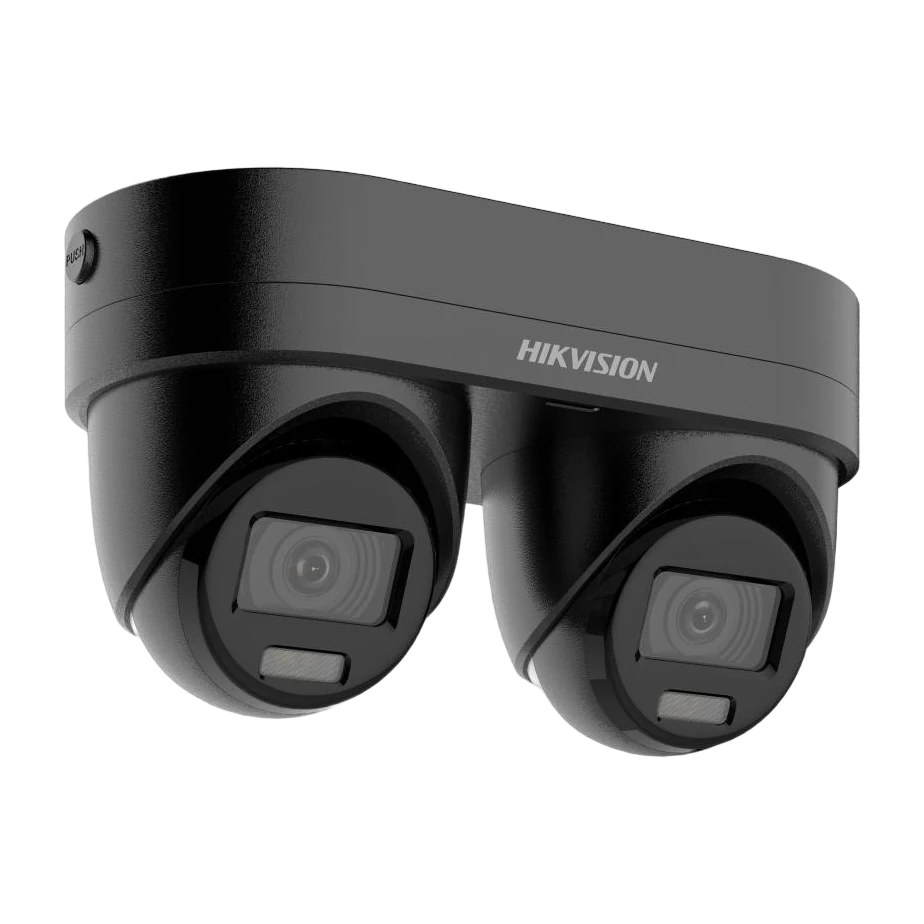

DS-2CD2346G3D-IZ2UY/S(L)(RB) Hikvision Turret IP Camera
Product Overview
The Hikvision DS-2CD2346G3D-IZ2UY/S(L)(RB) is a 4MP dual-lens fixed-point zoom turret network camera designed for reliable perimeter security. It features 2 independent channels with a single wiring interface and provides up to 2688 × 1520 resolution per channel for detailed monitoring in day and night conditions. The camera supports motorized varifocal lenses offering selectable 2.8 mm and 4 mm focal lengths in each lens set, with field of view options suitable for both wider and narrower scenes.
For low-light performance, the camera uses Powered by DarkFighter technology and includes IR illumination with an 850 nm wavelength, reaching up to 30 m. Smart supplementary light is supported to improve image quality in varying illumination conditions. Audio is integrated with an arrayed dual-microphone, and a built-in speaker supports audible warning, while an active strobe light helps deter intruders.
Built for challenging environments, the camera includes anti-corrosion design (NEMA 4X) and protection rated IP67. Deep learning-based person and vehicle classification is included, along with perimeter protection capabilities such as line crossing, intrusion, and region entrance/exit detection. It also supports flexible video streams and standard network protocols, including ONVIF, with audio compression options for efficient transmission and storage.
Key Features
- 2 independent channels, 1 wiring, 1 IP
- 4MP dual-lens with max 2688 × 1520 per channel
- Motorized varifocal lenses: 2.8 mm and 4 mm per lens set
- Powered by DarkFighter low-illumination performance
- IR supplement light up to 30 m (850 nm)
- Active strobe light and audio alarm to warn intruders
- Arrayed dual-microphone and built-in speaker
- Anti-corrosion design (NEMA 4X) and IP67 protection
- Person and vehicle classification based on deep learning
- Perimeter protection: line crossing, intrusion, region entrance/exit
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
It supports up to 2688 × 1520 (4MP) for both Channel 1 and Channel 2.
Yes. It has 2 independent channels with 1 wiring and 1 IP.
Each lens set supports motorized varifocal 2.8 mm and 4 mm.
It is Powered by DarkFighter and includes IR illumination (850 nm) with a range up to 30 m.
Yes. It has an arrayed dual-microphone, a built-in speaker, and supports an active strobe light and audible warning.
It is rated IP67 and includes anti-corrosion design (NEMA 4X).
