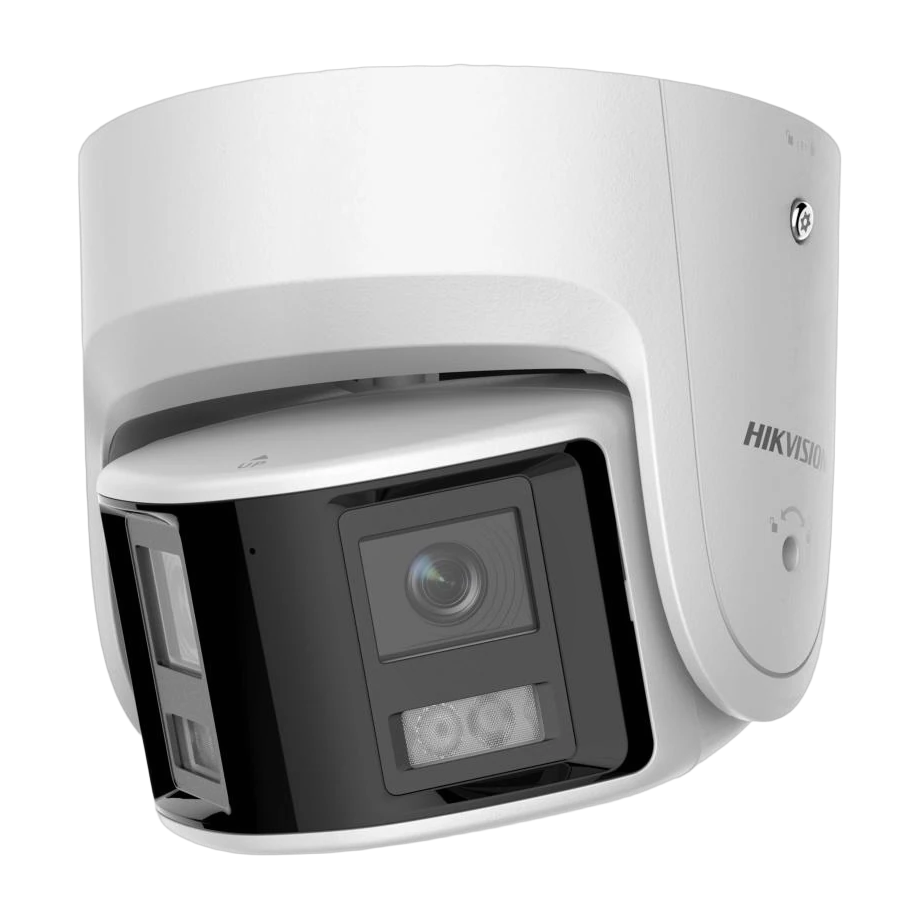

DS-2CD2366G2P-ISU/SL Hikvision Turret IP Camera
Product Overview
The Hikvision DS-2CD2366G2P-ISU/SL is a 6 MP panoramic fixed turret network camera designed for wide-area security monitoring. Using a 2 × 1/2.5″ progressive scan CMOS sensor, it delivers a maximum resolution of 3632 × 1632 for detailed surveillance in a single view. For challenging lighting conditions, the camera supports true 120 dB Wide Dynamic Range (WDR) to help maintain image clarity against strong backlight.
Optimized for low-light performance, the camera is powered by Hikvision DarkFighter technology with an IR supplement lighting system (850 nm). It provides an IR supplement range of up to 30 m, helping extend detection capability into dark environments.
To improve alarm accuracy, the camera incorporates deep learning-based human and vehicle target classification through Hikvision AcuSense technology. It can trigger alarms for supported perimeter protection events such as line crossing, intrusion, region entrance, and region exiting, while greatly improving alarm efficiency.
For on-site deterrence and communication, the device includes an active strobe light and audible alarm, plus built-in two-way audio with a built-in microphone and speaker. Audio and alarm interfaces support real-time security responses.
With a fixed dual-lens 2.8 mm design (horizontal FOV 180° and vertical FOV 81°), IP67 weather and dust resistance, and support for onboard storage via microSD (up to 512 GB), the DS-2CD2366G2P-ISU/SL is well-suited for perimeter monitoring and outdoor installation.
Key Features
- 6 MP panoramic fixed turret network camera (max 3632 × 1632)
- Dual-lens fixed focal 2.8 mm with 180° horizontal FOV and 81° vertical FOV
- Powered-by-DarkFighter low-light performance
- IR supplement light up to 30 m (850 nm) with Smart Supplement Light
- True 120 dB WDR for clear imaging in strong backlight
- Deep learning + Hikvision AcuSense: human and vehicle classification alarms
- Perimeter protection: line crossing, intrusion, region entrance, region exiting
- Active strobe light and audio alarm to warn intruders
- Built-in two-way audio (built-in microphone and speaker) for real-time communication
- Built-in microSD slot supporting up to 512 GB
- Water and dust resistant: IP67
- Two-stream support and ROI (1 fixed region for main stream)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
The camera supports up to 3632 × 1632.
Yes. It supports 120 dB true WDR.
It is powered by Hikvision DarkFighter technology with IR supplement lighting.
Up to 30 m.
It supports human and vehicle target classification alarms and perimeter protection events including line crossing, intrusion, region entrance, and region exiting.
Yes. It has an IP67 water and dust resistance rating.
