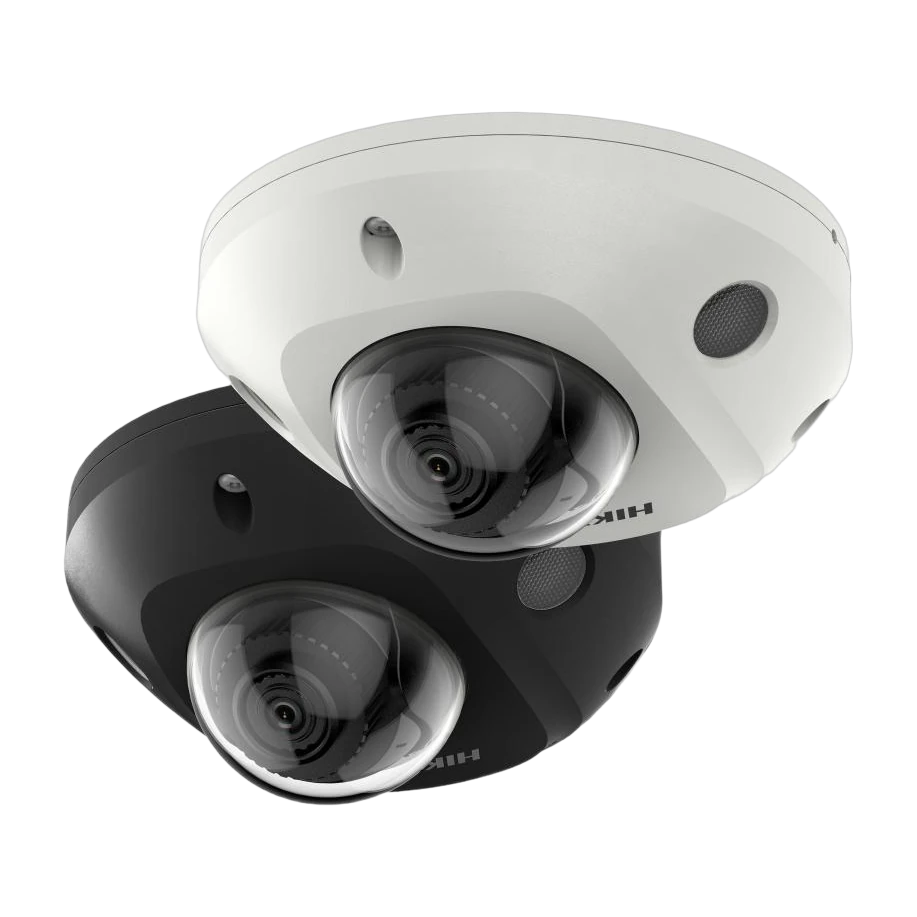

DS-2CD2546G2-IS Hikvision Dome IP Camera

SKU: DS-2CD2546G2-IS Category:
4MP
Resolution
EXIR
Night Vision
30m
Night Vision Range
IP Camera
Device Type

Product Overview

The Hikvision DS-2CD2546G2-IS is a 4 MP AcuSense EXIR fixed mini dome network (IP) camera built for reliable perimeter monitoring with strong night visibility. It features a 1/3″ progressive scan CMOS sensor with a maximum resolution of 2688 × 1520 and day/night operation supported by an IR illuminator. Powered-by DarkFighter technology helps deliver excellent low-light performance, while EXIR provides efficient illumination for up to 30 m.

For challenging lighting conditions, the camera supports 120 dB WDR to maintain clear imaging against strong back light. It includes deep learning–based human and vehicle classification and focuses on those target types for improved alarm efficiency and effectiveness. Smart events include line crossing detection, intrusion detection, and region entrance/exit detection, while perimeter protection can trigger alarms based on specified human and vehicle targets.

On the system side, the camera supports H.265+ compression for efficient bandwidth usage and offers multiple video streams for flexible recording and viewing. Network features include simultaneous live view up to 6 channels, open network video interface (PROFILE S/G/T), and NAS storage support with NFS/SMB/CIFS and ANR.

The DS-2CD2546G2-IS is designed for tough installations with IP67 weather resistance and IK08 vandal protection, and it is available in fixed-focal lens options (2.8 mm or 4 mm variants).

Key Features

  • 4 MP max resolution (2688 × 1520)
  • AcuSense with deep learning human and vehicle classification
  • EXIR / IR night illumination with up to 30 m range
  • Powered-by DarkFighter technology for low-light performance
  • 120 dB WDR for clear imaging in strong backlight
  • H.265+ compression for efficient video coding
  • Human/vehicle-based smart event detection (line crossing, intrusion, region entrance/exit)
  • Face capture supported
  • Built-in microSD slot for onboard storage (up to 512 GB)
  • IP67 and IK08 protection rating
  • Ethernet interface (RJ45 10/100 M self-adaptive)

Watch Product Videos

Watch real demos, setup guides, night-vision tests, and feature highlights for this model.

Downloads

Access datasheets, manuals, and user guides for this product.

File
Action
Data Sheet PDF

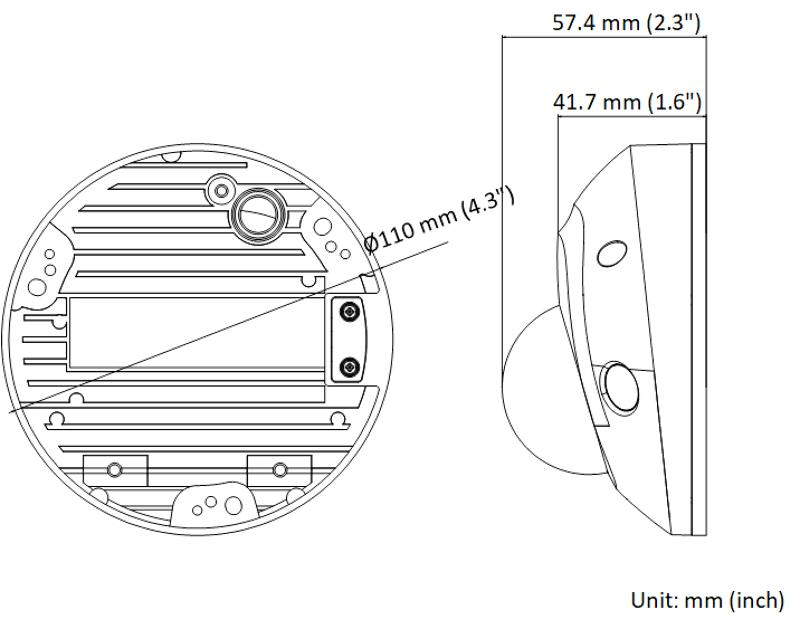

Dimensions PNG

Where to Find This Product

View trusted supplier listings, product references, and availability status for this model.

Dynamic CCTV Code: DS-2CD2546G2-IS
Available
ADI Code: DS-2CD2546G2-IS
Available
