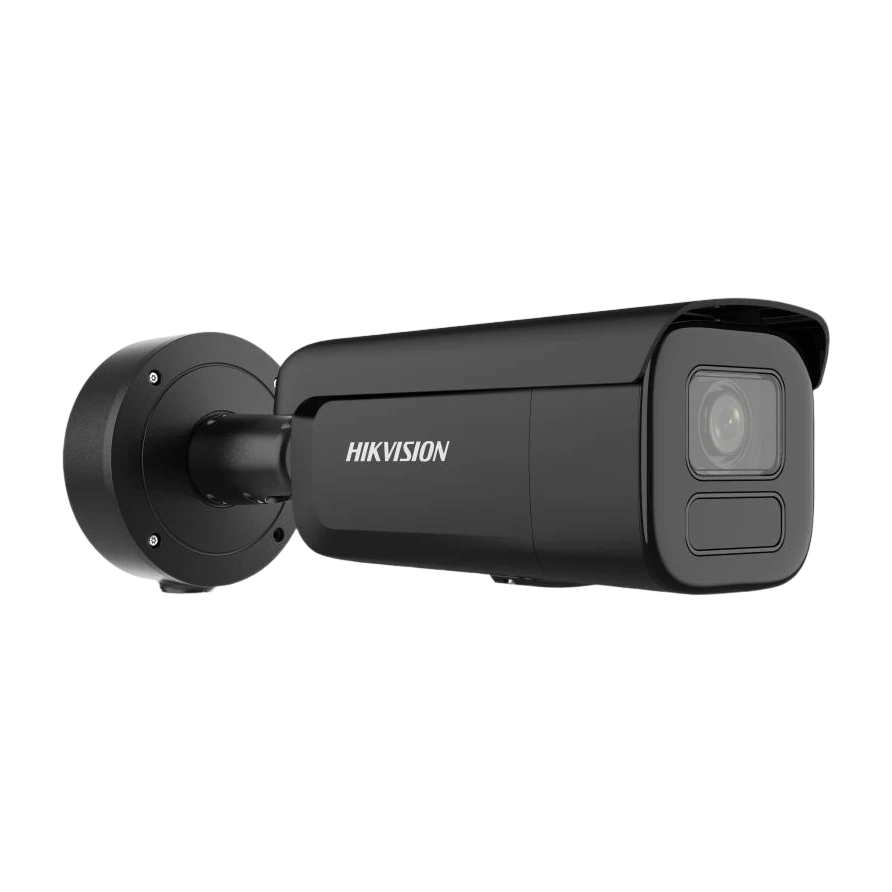

DS-2CD2686G2H-IZS Hikvision Bullet IP Camera
Product Overview
The Hikvision DS-2CD2686G2H-IZS is an 8MP AcuSense Powered-by-DarkFighter motorized varifocal bullet network camera designed for clear monitoring across a wide range of lighting conditions. It uses a 1/1.8″ progressive scan CMOS sensor to deliver up to 3840 × 2160 (8MP) resolution for detailed scene capture. For low-light performance, the camera incorporates Powered-by-DarkFighter technology with an IR illuminator (850 nm) supporting smart supplementary lighting.
To handle challenging contrast, the camera features 120 dB WDR (Wide Dynamic Range), helping maintain image clarity when subjects are backlit. Compression efficiency is supported through H.265+/H.265 encoding (with compatible alternatives including H.264/H.264+) to reduce bandwidth and storage requirements.
On the analytics side, the camera supports human and vehicle classification for improved event accuracy, along with Smart Event capabilities such as scene change detection. Perimeter protection functions include line crossing, intrusion, region entrance, and region exiting, with alarm triggering supported for human and vehicle targets.
Built for demanding installation environments, the DS-2CD2686G2H-IZS uses a motorized varifocal lens (2.8 to 12 mm) for easy field-of-view adjustment during setup. The camera is rated IP67 for water/dust resistance and IK10 for vandal resistance, making it suitable for outdoor deployments.
Key Features
- 8MP resolution (max. 3840 × 2160)
- Powered-by-DarkFighter technology for low-light performance
- 120 dB WDR for clear imaging against strong back light
- H.265+ compression (also supports H.265/H.264 variants)
- Deep learning analytics with human and vehicle classification
- Motorized varifocal lens: 2.8 to 12 mm (integrated motorized focus/zoom)
- IR illuminator with up to 60 m range (850 nm)
- Smart Supplement Light: Yes
- IP67 water/dust resistant and IK10 vandal resistant
- AcuSense event and linkage support (FTP/NAS/email/alarm triggering/recording/capture)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
The maximum resolution is 3840 × 2160 (8MP).
Yes. It uses Powered-by-DarkFighter technology and includes an IR illuminator (850 nm) with a supplement light range up to 60 m.
It has a motorized varifocal lens with focal length 2.8 to 12 mm.
For 2.8–12 mm: horizontal FOV is 112.3° to 41.2°, vertical FOV is 58.1° to 23.1°, and diagonal FOV is 137.4° to 47.3°.
The camera supports 120 dB WDR.
The camera is IP67 rated and IK10 vandal resistant.
