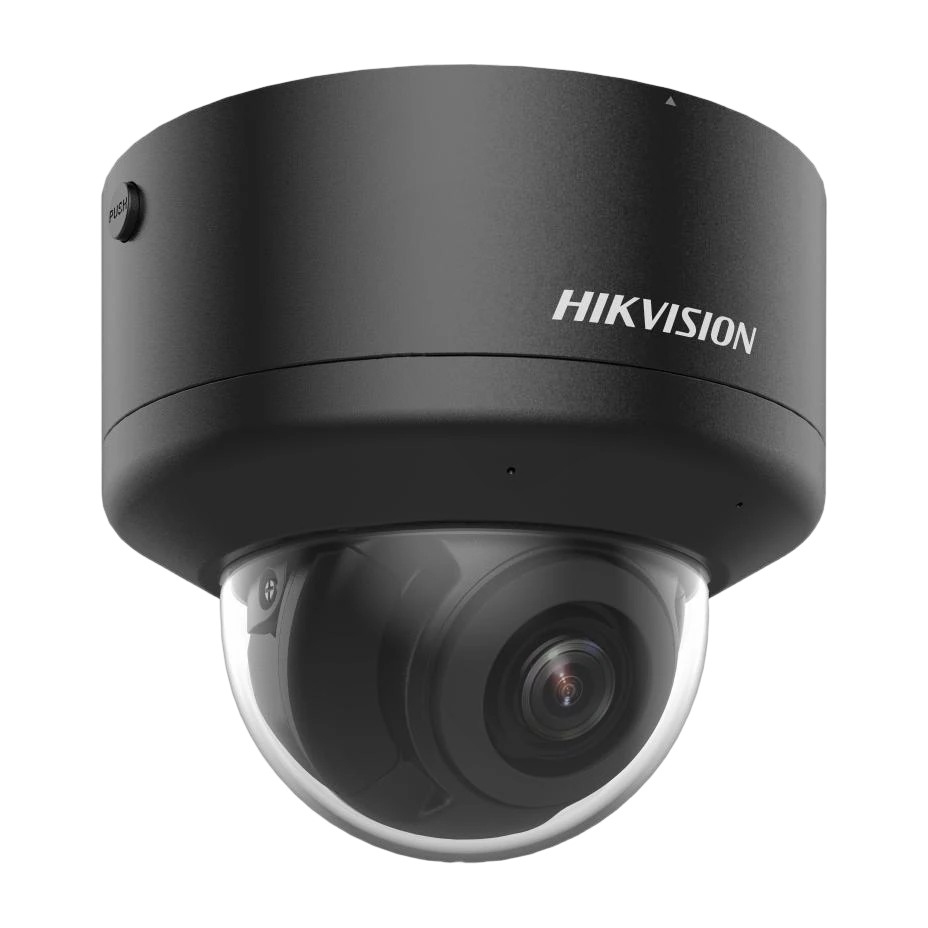

DS-2CD2746G2H-IPTRZS Hikvision Dome IP Camera
Product Overview
The Hikvision DS-2CD2746G2H-IPTRZS is a 4MP AcuSense PTRZ (Pan/Tilt/Rotate/Zoom) varifocal dome network camera designed for reliable, detailed monitoring day and night. Featuring motorized Pan 0° to 350°, Tilt 0° to 85° and Rotate 0° to 350°, it supports remote lens adjustment and flexible framing for installation and ongoing surveillance. Powered-by-DarkFighter technology delivers excellent low-light performance, while an integrated IR illuminator provides supplemental lighting up to 40m at 850 nm wavelength.
For challenging lighting conditions, the camera includes 120 dB Wide Dynamic Range (WDR) to help maintain clear imaging against strong backlight. Deep learning-based AcuSense analytics support human and vehicle classification and perimeter protection capabilities such as line crossing, intrusion, and region entrance/exit, with alarm triggering by specified target types. The camera supports robust event handling including motion detection, video tampering, and smart scene change detection.
With IP66 weather resistance and IK10 vandal resistance, this outdoor-ready dome is built for demanding environments. Connectivity includes Ethernet (RJ45 10/100M) with support for multiple streaming configurations and H.265/H.264 compression. Audio and alarm interfaces are available, and onboard storage supports microSD/microSDHC/microSDXC cards up to 512 GB.
Key Features
- 4MP (2688 × 1520) 1/1.8-inch progressive scan CMOS
- Motorized Pan/Tilt/Rotate/Zoom (PTRZ) for easy installation and monitoring
- Powered-by-DarkFighter low-light performance
- 120 dB WDR for clear imaging in strong backlight
- Deep learning human and vehicle classification (AcuSense)
- Perimeter protection: line crossing, intrusion, region entrance, region exiting
- IR illuminator up to 40 m (850 nm) with smart supplement light
- Water and dust resistant IP66 and vandal resistant IK10
- Audio: 1 input (line in) and 1 output (line out)
- Alarm: 1 input and 1 output
- H.265/H.264 video compression and multi-stream support
- On-board storage microSD up to 512 GB
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
The maximum resolution is 2688 × 1520.
The IR supplement light range is up to 40 m.
Yes. It supports motorized Pan, Tilt, Rotate, and Zoom for installation and monitoring.
It supports 120 dB Wide Dynamic Range (WDR).
Human and vehicle classification and alarm triggering by specified target types are supported.
It is rated IP66 for water/dust resistance and IK10 for vandal resistance.
