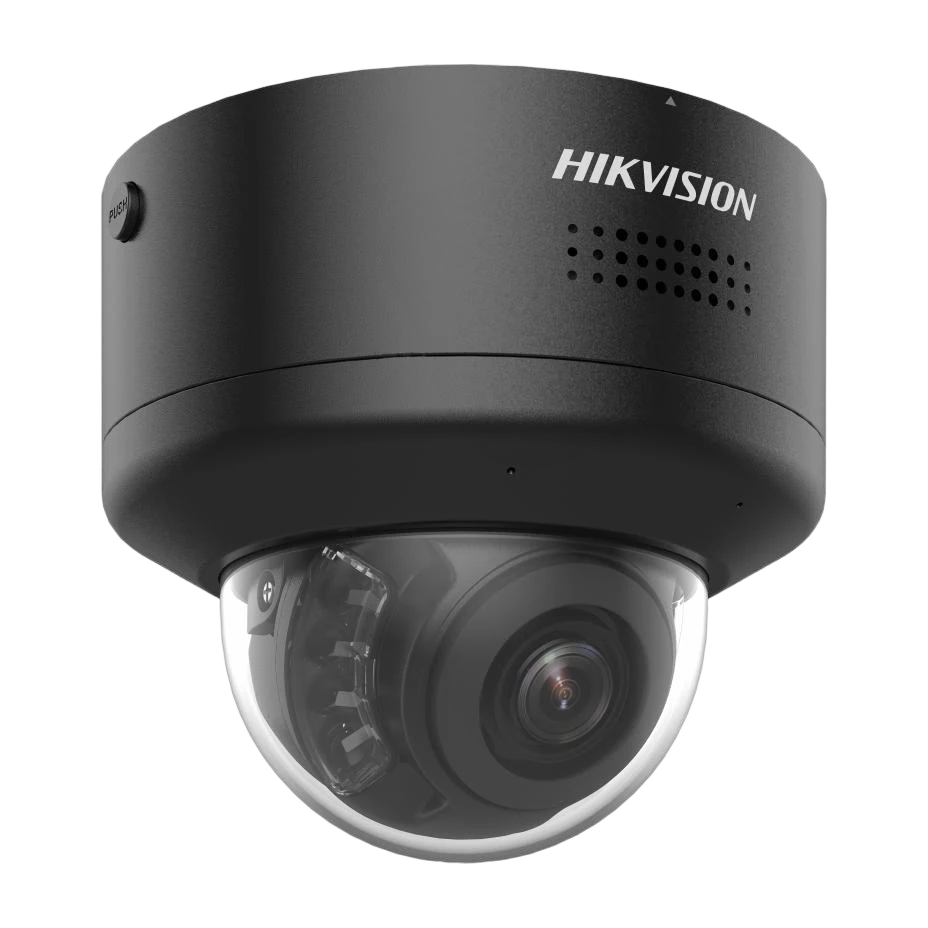

DS-2CD2746G2H-IPTRZS2U/S(L)(RB) Hikvision Dome IP Camera
Product Overview
The Hikvision DS-2CD2746G2H-IPTRZS2U/S(L)(RB) is a 4MP AcuSense PTRZ varifocal dome network camera designed for high-performance surveillance with motorized Pan/Tilt/Rotate/Zoom for flexible installation and monitoring. Powered-by-DarkFighter technology delivers excellent low-light performance, while IR illumination (850 nm) provides night visibility up to 40 meters. The camera supports 120 dB WDR for clear imaging in challenging scenes with strong backlight.
For advanced detection, it uses deep learning to support human and vehicle classification, helping reduce false alarms. Smart perimeter protection includes line crossing, intrusion, region entrance, and region exiting, with alarm triggering by specified target types (human and vehicle). An integrated arrayed dual-microphone supports real-time high-quality audio security, and audio input/output plus an alarm interface are available for external alarm integration.
To help deter potential intruders, the camera includes an active strobe light and an audio alarm warning feature (−SL variant). Built to withstand harsh conditions, it is rated IP66 for water and dust resistance and IK10 for vandal resistance.
With H.265/H.264 compression options, multiple streaming support, and standard ONVIF/ISAPI/SDK/ISUP compatibility, this camera is suitable for a wide range of professional IP surveillance applications including perimeter monitoring and outdoor installations.
Key Features
- 4MP (2688 × 1520) network dome camera
- Motorized Pan/Tilt/Rotate/Zoom (PTRZ) with remote adjustment (max. 1000 cycles)
- Powered-by-DarkFighter low-light performance
- 120 dB WDR for strong backlight scenes
- Human and vehicle classification using deep learning
- Perimeter protection: line crossing, intrusion, region entrance, region exiting
- IR illumination up to 40 m (850 nm) with smart supplement light
- Arrayed dual-microphone for real-time audio security
- Built-in speaker (max 2 W) with audio interface (line in/line out)
- Active strobe light and audio alarm to warn intruders (−SL)
- Weather and vandal resistant: IP66, IK10
- On-board microSD support up to 512 GB
- PoE (IEEE 802.3at, Class 4)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
The maximum resolution is 2688 × 1520.
Yes. It has motorized pan, tilt, rotate, and zoom for easy installation and monitoring.
It is powered by DarkFighter technology and includes IR illumination.
The IR supplement light range is up to 40 m.
Yes. It provides human and vehicle classification based on deep learning and supports perimeter protection triggers by human and vehicle.
It is rated IP66 for water/dust resistance and IK10 for vandal resistance.
