DS-2CD2747G2H-LIPTRZS Hikvision Dome IP Camera
Product Overview

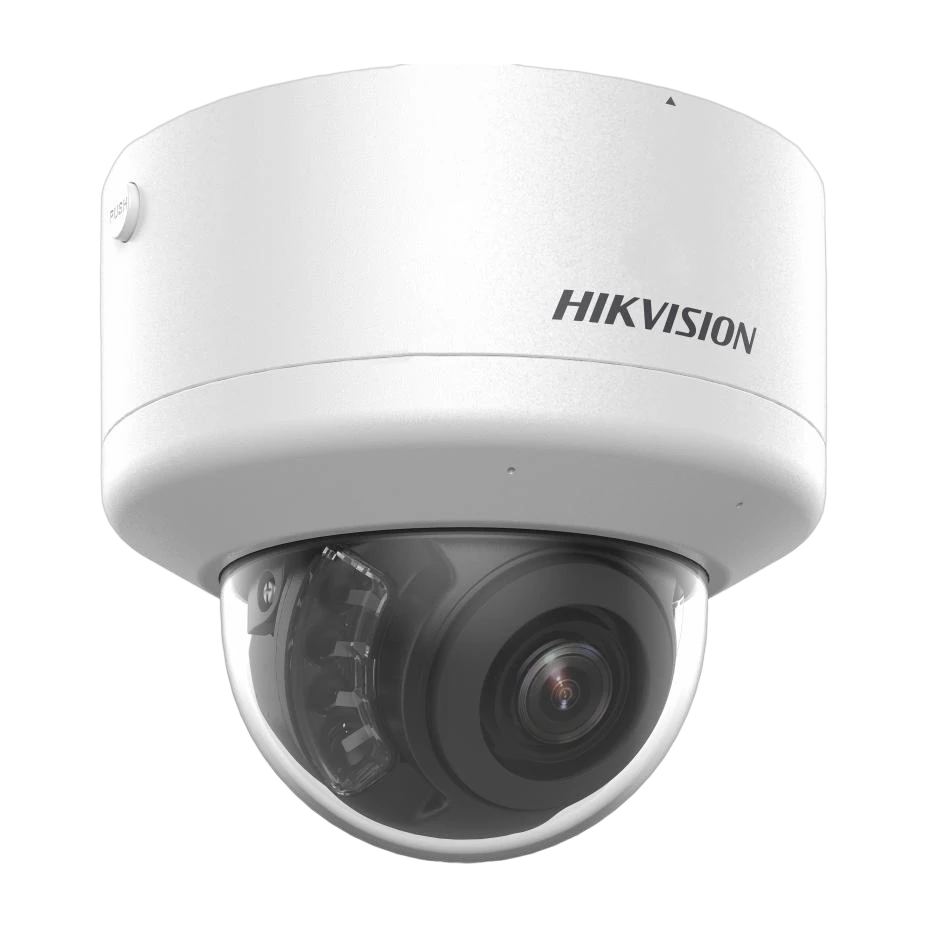

The Hikvision DS-2CD2747G2H-LIPTRZS is a 4MP IP PTZ dome network camera featuring ColorVu 24/7 colorful imaging for enhanced identification in low-light conditions. Designed with motorized Pan/Tilt/Rotate and Zoom (PTRZ), it supports remote angle adjustment and up to 1,000 motor cycles for flexible installation and ongoing monitoring. The camera uses a 1/1.8″ progressive scan CMOS sensor and provides a maximum resolution of 2688 × 1520, delivering detailed video for surveillance applications.
For challenging lighting environments, the camera incorporates 130 dB WDR technology to help maintain clear imaging against strong backlight. Smart Hybrid Light modes combine IR and white light to extend visibility, with a supplement illumination range up to 40 m. Deep learning–based analytics support human and vehicle classification to help reduce false alarms.
Built for outdoor resilience, it offers IP66 water and dust resistance and IK10 vandal resistance. The device supports audio and alarm interfaces for integration with external systems. Networking capabilities include multiple streams, H.265/H.264 compression options, ONVIF interoperability, secure HTTPS/802.1X support, and onboard microSD storage up to 512 GB, making it suitable for both small and large deployments requiring reliable PTZ coverage.
Key Features
- 4MP (2688 × 1520) resolution, 1/1.8″ progressive scan CMOS
- Motorized Pan/Tilt/Rotate/Zoom (PTRZ) for easy installation and monitoring
- 24/7 ColorVu colorful imaging
- Smart Hybrid Light with IR light and White light modes
- Supplement light range up to 40 m
- 130 dB WDR for clear imaging against strong back light
- Human and vehicle classification based on deep learning
- Water and dust resistant (IP66) and vandal resistant (IK10)
- Audio input/output and alarm input/output interfaces available
- Built-in microSD slot (up to 512 GB) for onboard storage
- Multiple video streams and H.265/H.264 compression support
- ONVIF support (Profile S/G/T) and secure network features (HTTPS/802.1X)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
The maximum resolution is 2688 × 1520.
Yes. It provides 24/7 colorful imaging via ColorVu technology.
It supports IR light, White light, and Smart Hybrid Light modes.
The supplement light range is up to 40 m.
Yes. It supports 130 dB WDR.
It is IP66 (water/dust resistant) and IK10 (vandal resistant).
