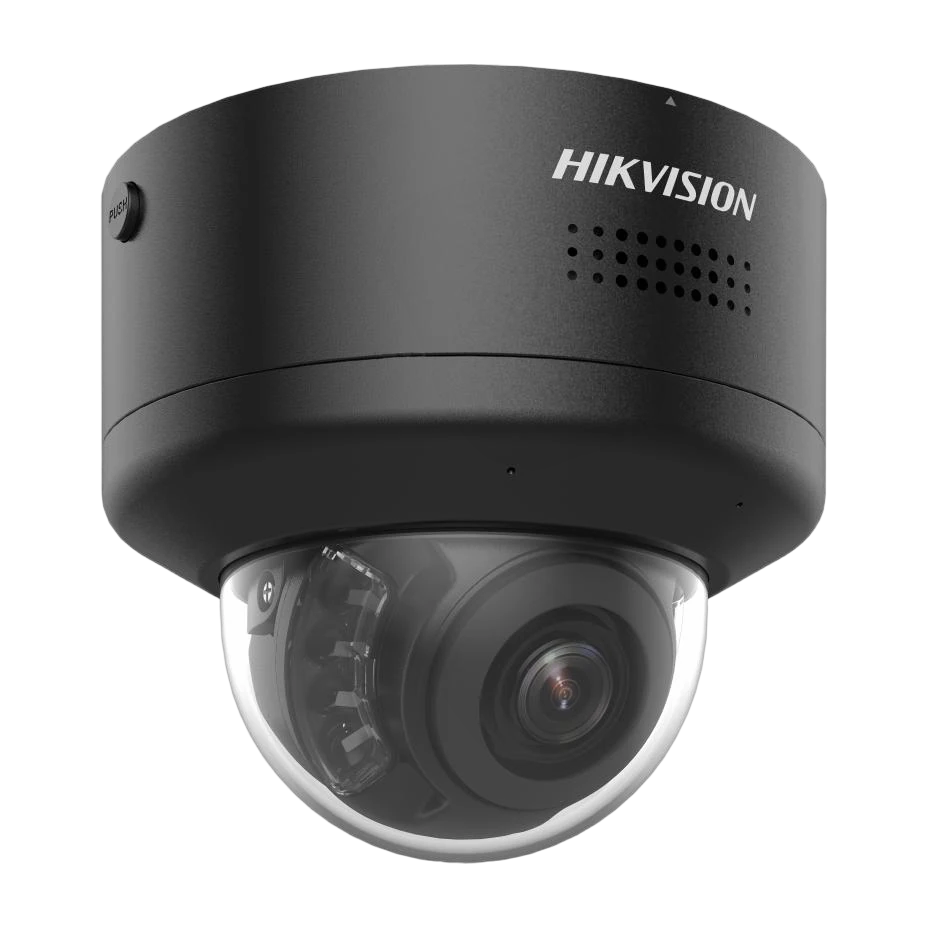

DS-2CD2747G2H-LIPTRZS2U/S(L)(RB) Hikvision Dome IP Camera
Product Overview
The Hikvision DS-2CD2747G2H-LIPTRZS2U/S(L)(RB) is a 4MP ColorVu motorized PTRZ varifocal dome network camera designed for 24/7 colorful monitoring. Featuring a 1/1.8″ progressive scan CMOS sensor and a motorized pan/tilt/rotate with motorized zoom, it supports flexible aiming and easy installation for perimeter and wide-area coverage. For challenging lighting conditions, it includes 130 dB WDR to help maintain clear images against strong backlight. The camera supports deep-learning based human and vehicle classification and can trigger alarms based on specified target types.
For day and night performance, it offers IR light plus white light and a Smart Hybrid Light mode to support colorful imaging in low light scenarios. The illuminator supplement light range is up to 40 m, with IR wavelength 850 nm. Audio support is built in with an arrayed dual-microphone for real-time high-quality audio security, and the camera includes a built-in speaker (2 W) plus an audible/alarm capability, including an active strobe light to warn intruders.
With IP66 water and dust resistance and IK10 vandal resistance, the unit is suitable for harsh outdoor environments. It provides audio and alarm interfaces, ONVIF support, and simultaneous live view of up to 6 channels, making it a strong choice for modern IP surveillance deployments requiring high detail, intelligent detection, and deterrence.
Key Features
- 4 MP ColorVu imaging with 24/7 colorful imaging
- Motorized PTRZ: pan (0° to 350°), tilt (0° to 85°), rotate (0° to 350°), motorized 2.8 to 12 mm varifocal lens
- 130 dB WDR for clear imaging in strong backlight
- Deep learning: human and vehicle classification
- IR light + White light + Smart Hybrid Light modes
- Supplement light range up to 40 m (IR wavelength 850 nm)
- Built-in arrayed dual-microphone for real-time audio security
- Audio alarm and active strobe light to warn intruders
- Audio and alarm interface available
- Weather and vandal resistant: IP66, IK10
- Network video support with H.265/H.264 and multi-stream capability (third stream supported under certain settings)
- ONVIF support (Profile S/G/T) and API support (ISAPI/SDK/ISUP)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
The maximum resolution is 2688 × 1520.
Yes. It supports 24/7 colorful imaging via ColorVu technology.
It uses a motorized varifocal lens with focal length 2.8 to 12 mm.
It supports IR light and White light, plus a Smart Hybrid Light mode.
The supplement light range is up to 40 m.
It is rated IP66 (water/dust resistant) and IK10 (vandal resistant).
