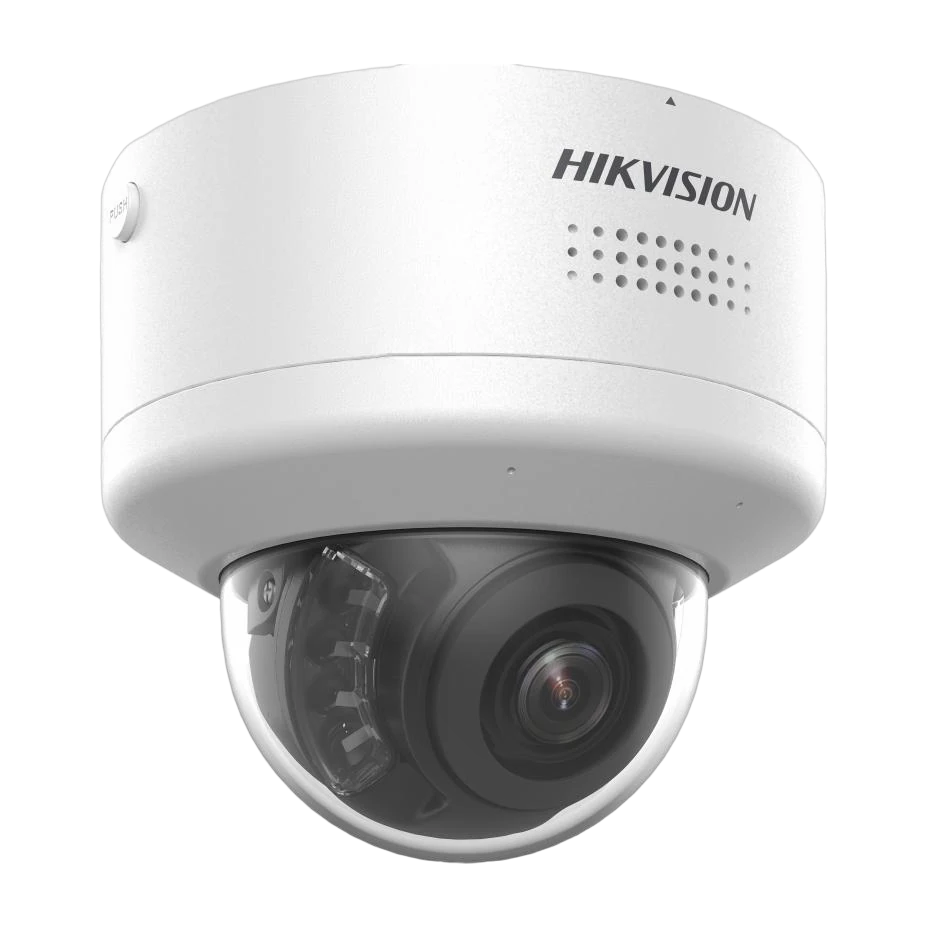

DS-2CD2766G2H-IPTRZS2U/S(L)(RB) Hikvision Dome IP Camera
Product Overview
The Hikvision DS-2CD2766G2H-IPTRZS2U/S(L)(RB) is a 6MP AcuSense PTRZ varifocal dome network camera designed for flexible, long-term perimeter monitoring. It uses a 1/1.8-inch progressive scan CMOS sensor with a maximum resolution of 3200 × 1800 and supports 120 dB WDR for clear imaging in challenging lighting, including strong backlight conditions. Powered-by-DarkFighter technology delivers excellent low-light performance, while built-in IR provides supplementary illumination up to 40 m (850 nm).
For installation and live monitoring convenience, the camera features motorized Pan, Tilt, Rotate, and Zoom (PTRZ) with remote adjustment (up to 1,000 cycles). Deep learning–based AcuSense functions support human and vehicle classification for smarter detection, while perimeter protection includes line crossing, intrusion, and region entrance/exit.
The DS-2CD2766G2H-IPTRZS2U/S(L)(RB) includes built-in arrayed dual-microphone audio capture and supports audio/alarm interfaces (1 input/1 output). For active deterrence, it offers an active strobe light and audio alarm to warn intruders. Built for demanding outdoor sites, it is IP66 rated for water/dust resistance and IK10 vandal resistance. Network connectivity supports ONVIF and multiple streaming options with H.265/H.264 compression, plus NAS storage and Hikvision client apps for viewing and management.
Key Features
- 6MP max resolution (3200 × 1800) with 1/1.8″ progressive scan CMOS
- Motorized Pan/Tilt/Rotate/Zoom (PTRZ) with remote adjustment (up to 1,000 cycles)
- Powered-by-DarkFighter for excellent low-light performance
- 120 dB WDR for clear imaging against strong back light
- AcuSense deep learning: human and vehicle classification
- Perimeter protection: line crossing, intrusion, region entrance, region exiting
- IR supplementary light up to 40 m (850 nm) with Smart Supplement Light
- Built-in arrayed dual-microphone and audio interface (line in/out terminals)
- Active strobe light and audio alarm for deterrence
- IP66 water/dust resistant and IK10 vandal resistant
- Supports triple streaming with H.265/H.264 compression and ROI
- Audio and alarm interface available (1 input, 1 output)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 3200 × 1800.
Yes. It uses IR supplementary light with a range up to 40 m at 850 nm and Smart Supplement Light.
Pan: 0° to 350°, Tilt: 0° to 85°, Rotate: 0° to 350°.
It includes 120 dB WDR (Wide Dynamic Range) and supports BLC/HLC image enhancement.
It provides human and vehicle classification based on deep learning and perimeter protection functions such as line crossing, intrusion, region entrance, and region exiting.
Yes. It is rated IP66 for water/dust resistance and IK10 for vandal resistance.
