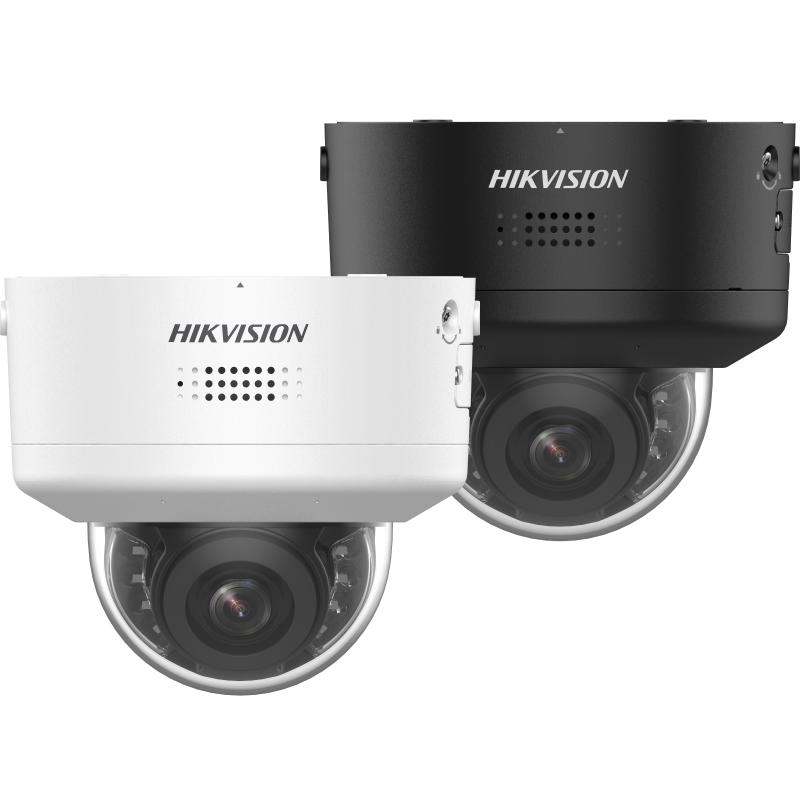

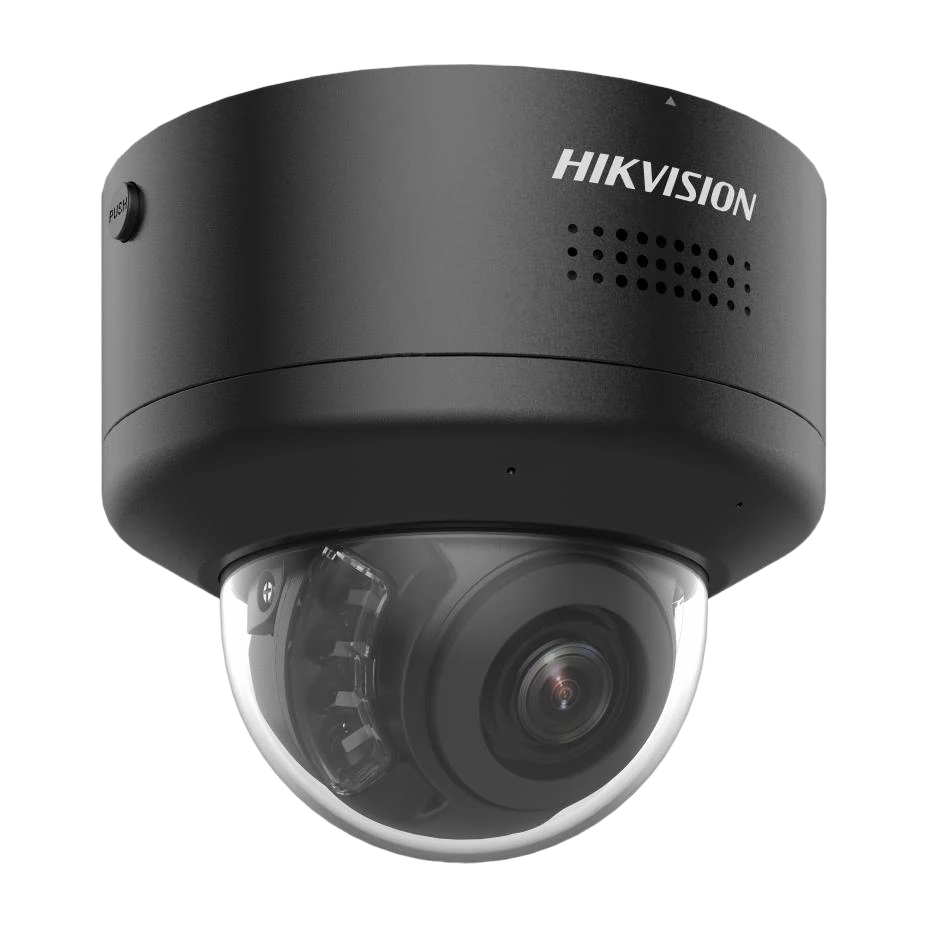

DS-2CD2786G2H-IPTRZS2U/S(L)(RB) Hikvision Dome IP Camera
Product Overview
The Hikvision DS-2CD2786G2H-IPTRZS2U/S(L)(RB) is an 8MP AcuSense PTZ dome network camera designed for flexible long-range monitoring with motorized Pan, Tilt, Rotate, and Zoom (PTRZ). The camera uses a 1/1.8-inch progressive scan CMOS sensor and supports up to 3840 × 2160 resolution. For low-light performance, it is powered by Hikvision DarkFighter technology and includes an integrated IR illuminator with a supplement light range up to 40 m (850 nm).
To help deliver clear imagery in challenging lighting, the camera features 120 dB Wide Dynamic Range (WDR) for improved visibility against strong backlight conditions. For smart analytics, it provides human and vehicle classification based on deep learning, along with AcuSense perimeter protection such as line crossing, intrusion, and region entrance/exit. The camera also supports Face Capture.
Designed for demanding installations, the dome is water and dust resistant to IP66 and vandal resistant to IK10. Audio security is supported through a built-in arrayed dual-microphone, plus available audio and alarm interfaces. It also offers active warning capabilities with an active strobe light and audio alarm to deter intruders.
With built-in microSD support (up to 512 GB) and ONVIF compatibility (Profile S/G/T), this IP PTRZ dome camera is well-suited for perimeter and security monitoring where both wide situational awareness and targeted detail are needed.
Key Features
- 8 MP AcuSense PTRZ varifocal dome network camera
- Motorized Pan, Tilt, Rotate, Zoom (PTRZ) for installation and monitoring
- Powered-by DarkFighter technology for excellent low-light performance
- 120 dB WDR for clear imaging against strong back light
- Human and vehicle classification using deep learning
- IR supplement light (850 nm), range up to 40 m
- Smart supplement light: Yes
- Remote adjustment for PTZ: up to 1,000 cycles
- Water and dust resistant IP66 and vandal resistant IK10
- Active strobe light and audio alarm to warn intruders off
- Built-in arrayed dual-microphone for real-time high quality audio security
- Audio and alarm interface available (1 input / 1 output alarm)
- On-board storage: built-in microSD/microSDXC slot up to 512 GB
- PoE supported (IEEE 802.3at, Class 4)
- ONVIF support (Profile S/G/T) and Hikvision platforms (iVMS-4200, Hik-Connect, Hik-Central)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The camera supports a maximum resolution of 3840 × 2160 (8 MP).
The IR supplement light range is up to 40 m.
Yes. It supports 120 dB Wide Dynamic Range (WDR).
It supports human and vehicle classification based on deep learning, perimeter protection (line crossing, intrusion, region entrance, region exiting), and face capture.
Yes. It includes a built-in arrayed dual-microphone and supports audio and alarm interface connections.
The camera is rated IP66 for water/dust resistance and IK10 for vandal resistance.
