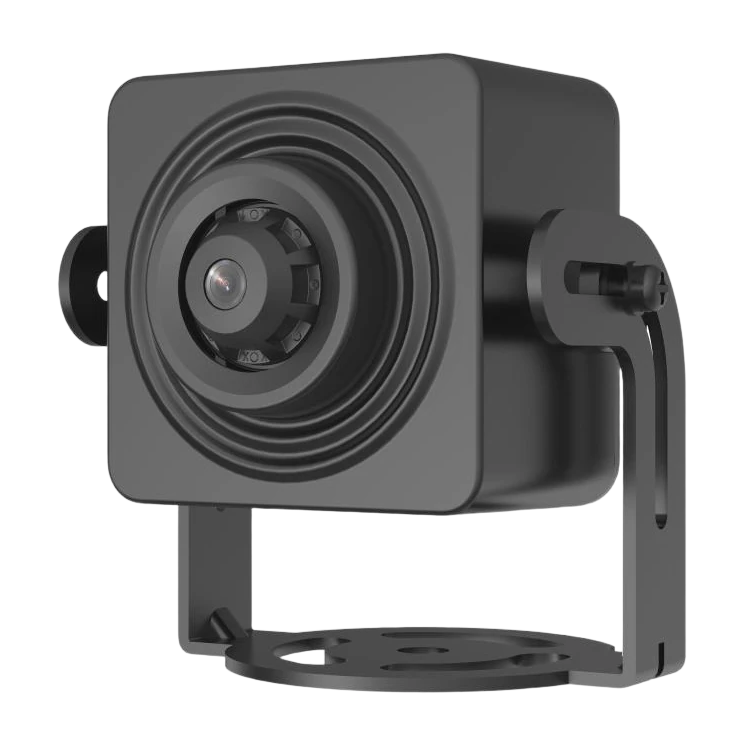

DS-2CD2D25G1-D/NF Hikvision Box IP Camera
Product Overview
The Hikvision DS-2CD2D25G1-D/NF is a 2 MP mini IP network camera designed for clear, efficient video capture. It uses a 1/2.8″ progressive scan CMOS sensor with a maximum resolution of 1920 × 1080. To support bandwidth-efficient recording and streaming, the camera provides H.265/H.264 compression, with scalable video coding (SVC) and bitrate control options (CVR/BVR). For challenging lighting conditions, it features 120 dB true Wide Dynamic Range (WDR) to help produce clear images against strong backlight. Image enhancement functions include BLC (backlight compensation), HLC (highlight compensation), defog and 3D DNR for cleaner, sharper visuals.
For video output, it offers multiple streams (main, sub, and third stream) to fit different viewing and recording requirements, and supports a fixed ROI region for the main stream. The camera supports mono audio with compression formats such as G.711, G.722.1, G.726, MP2L2 and AAC. On the event side, it includes basic motion detection and video tampering/alarm features, plus smart intrusion/line crossing/region entrance and exit detection.
The DS-2CD2D25G1-D/NF includes network protocol support for common enterprise and IoT systems (including RTSP, HTTP/HTTPS, FTP, DDNS, NTP, IPv6 and more), and supports up to 15-channel simultaneous live view. Available lens variants are 2.8 mm (DS-2CD2D25G1-D/NF(2.8mm)) and 3.7 mm (DS-2CD2D25G1-D/NF(3.7mm)).
Key Features
- 2 MP (max 1920 × 1080) imaging with 1/2.8″ progressive scan CMOS sensor
- H.265+ style efficient compression using H.265/H.264 (main: H.265/H.264; sub includes MJPEG)
- 120 dB true WDR for clear imaging against strong back light
- 3D DNR for clean and sharp images
- Multiple streaming (main/sub/third) and support for 1 fixed ROI on main stream
- Mono audio support (line in) with multi-codec options (G.711/G.722.1/G.726/MP2L2/AAC/PCM)
- Day/Night switching with schedule and automatic modes
- Event detection: motion detection, video tampering, exceptions (HDD full/error/network disconnected), video quality diagnosis
- Smart events: intrusion detection, line crossing, region entrance/exit, unattended baggage, object removal
- Linkage actions: upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording/capture, audible warning
- Ethernet interface: 1 RJ45 10/100 M self-adaptive port
- Power: 12 VDC ±20% (0.13 A), max 1.5 W
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The camera supports a maximum resolution of 1920 × 1080 (2 MP).
Yes. It features 120 dB true WDR.
Main stream supports H.265/H.264; sub-stream supports H.265/H.264/MJPEG; third stream supports H.265/H.264.
Yes. Day, Night, Auto, and Schedule modes are supported.
Smart events include intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, and object removal detection.
The datasheet lists DS-2CD2D25G1-D/NF(2.8mm) and DS-2CD2D25G1-D/NF(3.7mm) lens variants.
