DS-2CD2D45G2-U Hikvision Box IP Camera
Product Overview

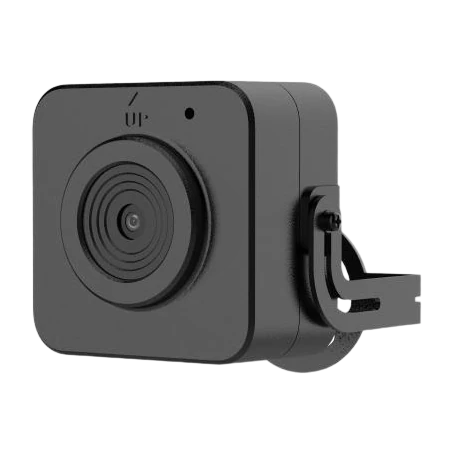

The Hikvision DS-2CD2D45G2-U is a 4 MP mini bullet-style network (IP) camera designed for clear, high-detail monitoring. It uses a 1/3″ progressive scan CMOS sensor with a maximum resolution of 2688 × 1520. Video performance is optimized with efficient H.265/H.265+ compression to help save bandwidth and storage, while maintaining high image quality. For scenes with challenging lighting, the camera supports 120 dB true WDR to provide clearer imaging against strong backlight. Image quality is further enhanced with 3D DNR for cleaner, sharper frames, and BLC/HLC as additional exposure-related controls. The camera supports multiple streams (main, sub and third) and supports H.264/H.265 with SVC, plus ROI to optimize encoding across areas of interest. Networking features include ONVIF compatibility and Hikvision client support (iVMS-4200 and Hik-Connect). Security features include password protection, HTTPS encryption, 802.1X authentication options, and TLS 1.1/1.2/1.3 support. A built-in microphone enables real-time audio security, complementing motion and smart event detection. Event capabilities include motion detection, video tampering, network disconnected, illegal login, and HDD status alarms, plus smart functions like scene change detection and audio exception detection. With a compact aluminum-alloy body and available versions for 2.8 mm and 4 mm lenses, this camera is well-suited to a wide range of indoor or outdoor IP surveillance installations.
Key Features
- 4 MP max resolution (2688 × 1520)
- H.265+ / H.265 compression for bandwidth and storage saving
- 120 dB true WDR for strong backlight scenes
- 3D DNR for clean and sharp images
- Built-in microphone for real-time audio security
- Efficient multi-stream support (main/sub/third streams)
- ROI: 4 fixed regions for each stream
- SVC (Scalable Video Coding) for H.264 and H.265
- Event detection: motion, video tampering, network disconnected, illegal login, HDD full/error, video quality diagnosis, vibration detection
- Smart events: scene change detection, audio exception detection, defocus detection
- Perimeter protection: line crossing, intrusion, region entrance/exit; target-type alarms (human/vehicle) and combined event triggering
- Face capture (with Face Attributes)
- 120 dB WDR, BLC/HLC, EIS image stabilization, privacy mask support
- Networking: ONVIF, API support, NAS storage (NFS/SMB/CIFS), iVMS-4200 and Hik-Connect
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 2688 × 1520 (4 MP).
The camera supports H.264/H.265/H.264+/H.265+ on the main stream (with H.264/H.265/MJPEG on sub-stream and H.264/H.265 on third stream).
Yes. It supports 120 dB true WDR.
Yes. It includes a built-in microphone and supports mono audio encoding (e.g., AAC-LC, G.711, G.722.1, G.726, MP2L2, PCM, MP3).
Perimeter protection includes line crossing, intrusion, and region entrance/exit, with support for target types (human and vehicle) and combined event alarm triggering. Smart events also include scene change detection, audio exception detection, and defocus detection.
Available models include DS-2CD2D45G2-U (2.8 mm) and DS-2CD2D45G2-U (4 mm).
