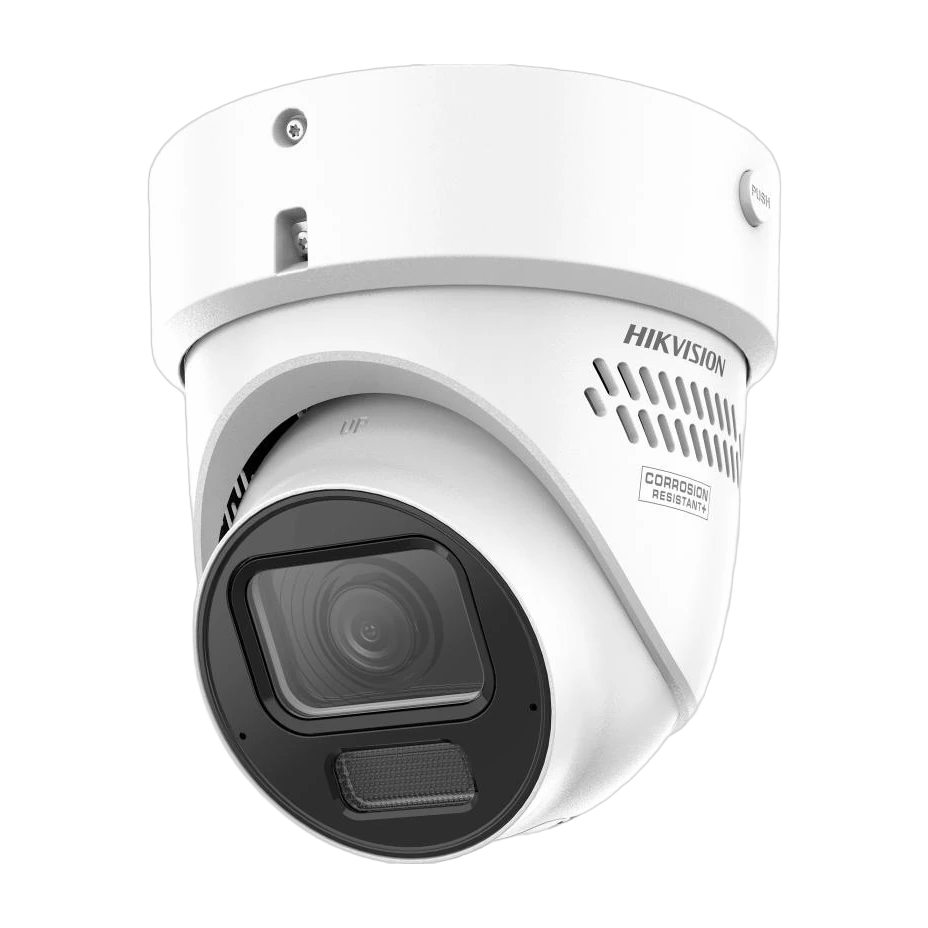

DS-2CD2H166G3-IZS2UY/S(L)(RB) Hikvision Turret IP Camera
Product Overview
The Hikvision DS-2CD2H166G3-IZS2UY/S(L)(RB) is a 16MP AcuSense motorized varifocal turret network camera designed for reliable detection and deterrence. Powered by DarkFighter and equipped with IR illumination (850 nm), it delivers excellent low-light performance, supporting up to 16MP UHD clarity for detailed identification.
This turret camera features a motorized varifocal lens (2.8 to 12 mm) for flexible field-of-view adjustment during installation. For scene protection, it includes 130 dB true WDR to maintain clear imaging against strong backlight. Audio is built in with an arrayed dual-microphone and a Smart PA speaker for clear, intelligible alerts.
Uniquely, the model includes an active strobe light and audible warning capability. Depending on the variant, strobe output can be white light ( /SL ) or red & blue light ( /SRB ), and the camera can trigger audible warning, strobe light, and alarm outputs through supported events. The camera supports deep learning-based person and vehicle classification, as well as perimeter protection features such as line crossing, intrusion, and region entrance/exit. Privacy masking and multiple streams enhance usability in demanding deployments.
Engineered for harsh environments, the camera is rated IP67 for water and dust resistance and IK10 for vandal resistance, with anti-corrosion protection (NEMA 4X).
Key Features
- 16MP UHD max resolution: 4608 × 3456
- Motorized varifocal lens: 2.8 to 12 mm (horizontal FOV 99° to 43°)
- Powered by DarkFighter low-light performance
- Built-in active strobe light and audible warning (/SL white light, /SRB red & blue light)
- IR illumination up to 40 m (850 nm) with smart supplement light
- 130 dB true WDR for clear imaging against strong backlight
- Deep learning person and vehicle classification (AcuSense)
- Perimeter protection: line crossing, intrusion, region entrance, region exiting
- Audio: arrayed dual-microphone and Smart PA speaker; 2 W max
- On-board microSD slot up to 512 GB
- Network: ONVIF, iVMS-4200, Hik-Connect, Hik-Central support
- Weather/vandal resistant: IP67 and IK10
- Anti-corrosion protection with NEMA 4X
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 4608 × 3456.
Yes. It uses Powered by DarkFighter and IR illumination (850 nm).
The IR supplement light range is up to 40 m.
It uses a motorized varifocal lens with a focal length of 2.8 to 12 mm.
It supports an active strobe light and an audible warning, including linkage triggers to audible warning and strobe light.
Yes. It has an IP67 water/dust rating and IK10 vandal resistance.
