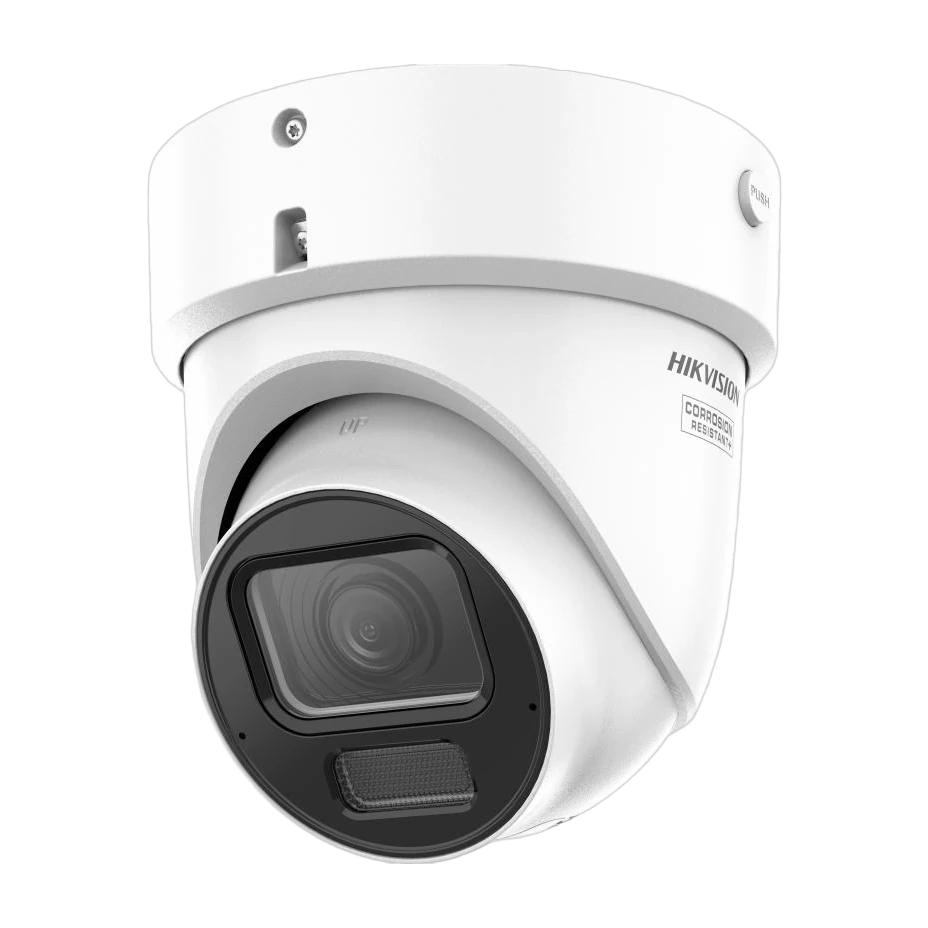

DS-2CD2H166G3-IZSY Hikvision Turret IP Camera
Product Overview
The Hikvision DS-2CD2H166G3-IZSY is a 16MP AcuSense Powered by DarkFighter motorized varifocal turret network camera designed for detailed, reliable surveillance in challenging outdoor environments. Built around a 1/1.8″ progressive scan CMOS sensor with a maximum resolution of 4608×3456, it delivers UHD-quality images suitable for wide-area monitoring with fine detail. Installation and framing are simplified by the integrated 2.8 to 12 mm motorized varifocal lens, offering a flexible field of view and smooth remote adjustments. For low-light performance, the camera uses Powered by DarkFighter technology and an IR illuminator with a range up to 40 m (850 nm), enabling effective day/night imaging.
To improve image clarity in difficult lighting, it supports 130 dB true WDR and provides enhancement features such as BLC, HLC, 3D DNR, defog, and distortion correction. The camera also includes deep learning-based smart analytics for perimeter protection, including line crossing, intrusion, and region entrance/exit, with alarm triggering support for human and vehicle targets. Audio and alarm interfaces are available, and the unit can record via network storage (NAS) with client support including iVMS-4200 and Hik-Connect.
With an IP67 weatherproof and IK10 vandal-resistant metal design plus anti-corrosion protection, this IP turret camera is built for long-term outdoor operation.
Key Features
- 16MP UHD max resolution (4608×3456) via 1/1.8″ progressive scan CMOS
- Motorized varifocal lens (2.8 to 12 mm) for easy installation and monitoring
- Powered by DarkFighter for excellent low-light performance
- IR illuminator (850 nm) up to 40 m with Smart Supplement Light
- 130 dB true WDR for clear imaging against strong back light
- Person and vehicle classification using deep learning
- AcuSense perimeter protection: line crossing, intrusion, region entrance, region exiting
- Face capture: Yes
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Anti-corrosion design with NEMA 4X protection
- On-board storage: microSD/microSDHC/microSDXC up to 512 GB
- Simultaneous live view up to 6 channels
- ONVIF support (Profile S/T/G), RTSP and other common protocols
- Integrated built-in array dual microphones and alarm I/O (1 in / 1 out)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
4608 × 3456 (16MP).
Yes. It uses an integrated motorized varifocal lens with focal length 2.8 to 12 mm.
Powered by DarkFighter with IR night illumination.
Up to 40 m.
Yes. It supports deep learning-based perimeter protection and alarm triggering by target types (human and vehicle).
IP67 (water/dust resistant) and IK10 (vandal resistant).
