DS-2CD2H46G2H-IZS2UY/S(L)(RB) Hikvision Turret IP Camera
Product Overview

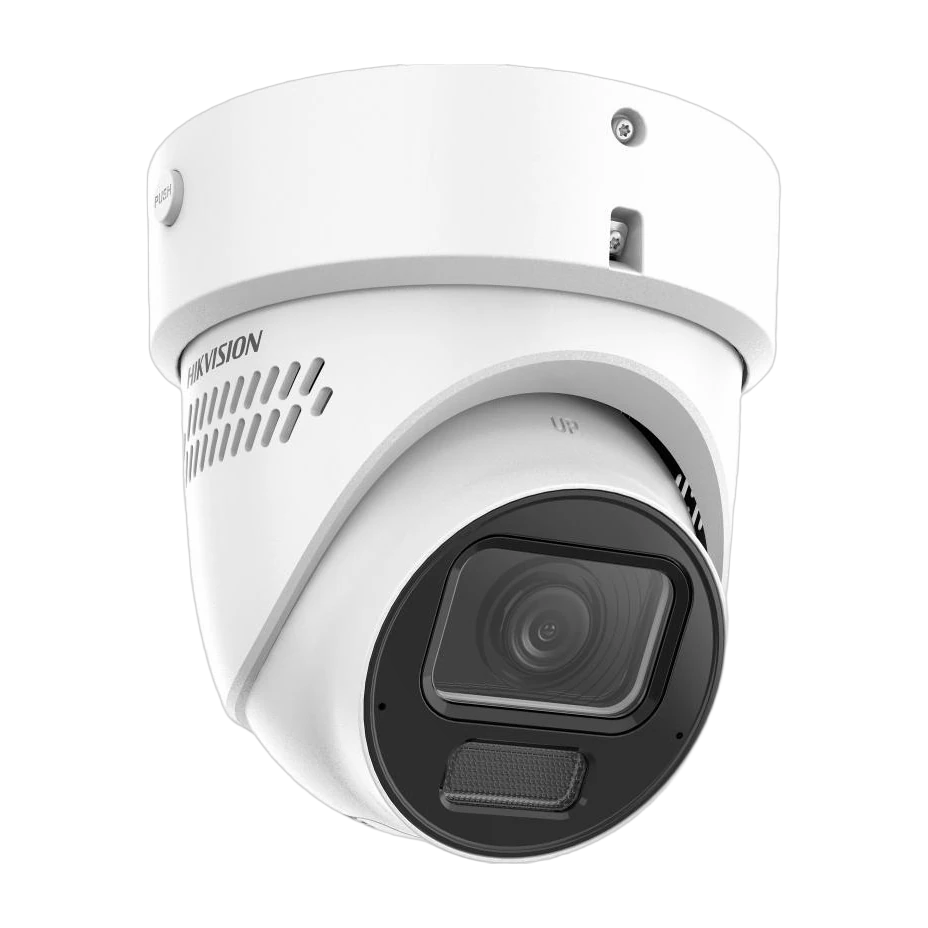

The Hikvision DS-2CD2H46G2H-IZS2UY/S(L)(RB) is a 4MP powered-by-DarkFighter motorized varifocal turret network camera designed for flexible installation and reliable outdoor monitoring. Its motorized varifocal lens (2.8 to 12 mm) supports easy setup for both wide and tele views, while motorized pan/tilt/rotate provides wide coverage (pan 0° to 360°, tilt 0° to 75°, rotate 0° to 360°). For low-light scenes, it features an F1.0 aperture and an IR illuminator (850 nm) with a smart supplement light function, delivering illumination up to 40 m.
To improve image quality in challenging lighting, the camera includes 120 dB WDR and supports noise reduction and backlight compensation features such as BLC and HLC. Video compression is optimized with H.265+ for efficient bandwidth usage, and it can stream multiple resolutions and frame rates (up to 4MP at 25/30 fps depending on power/frequency settings).
Built for harsh environments, the camera is rated IP67 for water and dust resistance and IK10 for vandal resistance, with anti-corrosion design meeting NEMA 4X. Audio is supported with a built-in arrayed dual-microphone and speaker, and the camera includes active strobe light and audio alarm to warn trespassers. Deep learning based perimeter protection and human/vehicle classification help trigger smart alerts such as line crossing, intrusion, and region entrance/exit.
Key Features
- 4MP (max resolution 2688 × 1520) network turret camera
- Motorized varifocal lens: 2.8 to 12 mm
- Powered by DarkFighter with F1.0 max aperture (low-light performance)
- IR illuminator (850 nm) up to 40 m and Smart Supplement Light
- 120 dB WDR (strong backlight clarity)
- H.265+ video compression for efficient streaming
- Deep learning perimeter protection (line crossing, intrusion, region entrance/exit) with human/vehicle support
- Active strobe light and audio alarm for trespasser warning
- Arrayed dual-microphone and built-in speaker
- Water/dust resistant: IP67; vandal resistant: IK10; anti-corrosion design (NEMA 4X)
- Built-in microSD/microSDHC/microSDXC slot up to 512 GB
- Audio alarm: 1 input / 1 output; event linkage upload/notify/record/capture/trigger alarm
- Onvif support (Profile S/T/G) and multiple client integrations (iVMS-4200, Hik-Connect, Hik-Central)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
Maximum resolution is 2688 × 1520 (4MP). Main stream supports 25 fps at 50 Hz and 30 fps at 60 Hz for 2688 × 1520.
Yes. It uses a motorized varifocal lens with focal length 2.8 to 12 mm.
The IR supplement light range is up to 40 m.
Yes. It supports 120 dB WDR.
It is rated IP67 (water/dust resistant) and IK10 (vandal resistant), with an anti-corrosion design meeting NEMA 4X.
Yes. Deep learning perimeter protection supports alarm triggering by specified target types (human and vehicle), including line crossing, intrusion, and region entrance/exit.
