DS-2CD2H46G2H-IZSY Hikvision Turret IP Camera
Product Overview

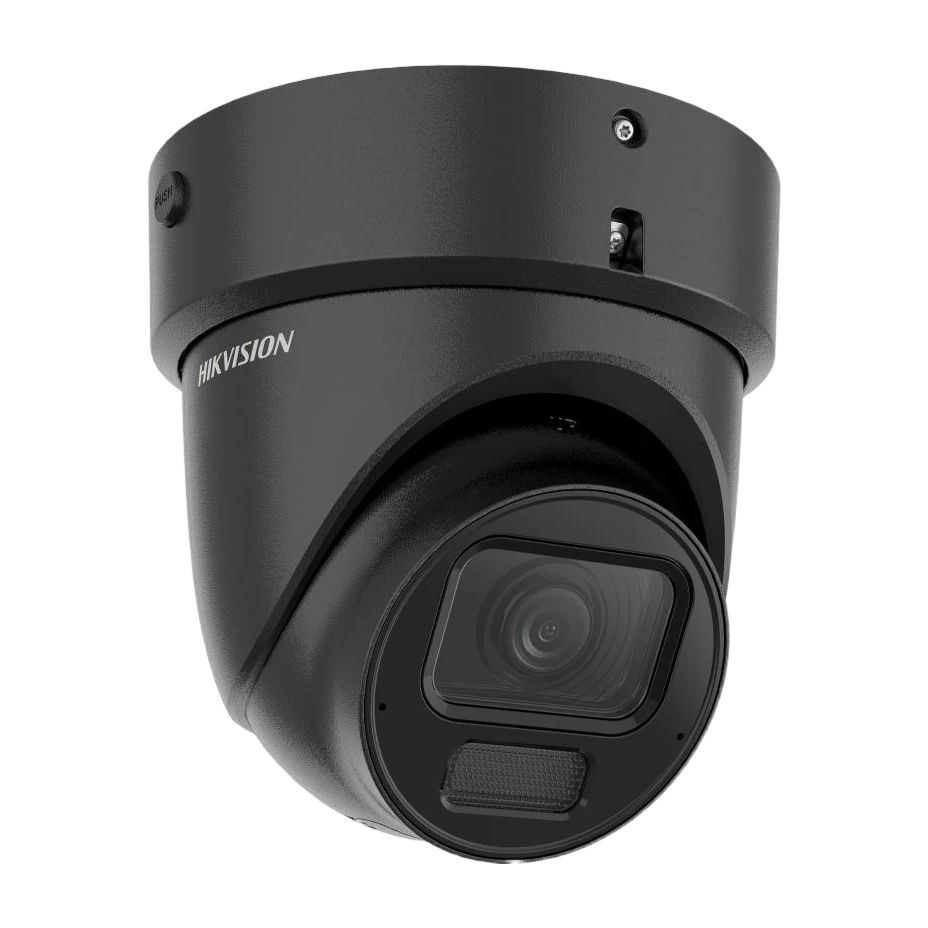

The Hikvision DS-2CD2H46G2H-IZSY is a 4MP network (IP) turret camera designed for wide-area surveillance with strong low-light performance. It features a 1/3″ progressive scan CMOS sensor and supports a maximum resolution of 2688×1520 for detailed monitoring. The camera uses a motorized varifocal lens (2.8 to 12 mm) with remote adjustment capabilities (pan 0° to 360°, tilt 0° to 75°, rotate 0° to 360°), making it easier to align fields of view during installation.
For night viewing, the camera is powered by DarkFighter with a maximum aperture of F1.0 and an IR illuminator (850 nm). It supports color imaging in very low light (0.001 lux at F1.0, AGC ON) and provides IR night capability with IR cut filter day/night switching. For challenging lighting conditions, the camera provides 120 dB WDR to help maintain clear images against strong backlight.
The DS-2CD2H46G2H-IZSY also includes deep learning based perimeter protection to trigger alarms for specified target types (human and vehicle), including line crossing and intrusion-style rules. Efficient H.265+ compression helps reduce bandwidth and storage. The rugged, corrosion-resistant design offers IP67 water/dust protection and IK10 vandal resistance, with anti-corrosion protection rated for NEMA 4X.
Key Features
- 4MP (max. 2688×1520) 1/3″ progressive scan CMOS
- Motorized varifocal lens: 2.8 to 12 mm
- Remote angle adjustment: pan 0°–360°, tilt 0°–75°, rotate 0°–360°
- DarkFighter low illumination with max aperture F1.0
- IR illuminator (850 nm), range up to 40 m; IR supplement light with smart supplement light
- 120 dB WDR for clear imaging against strong backlight
- H.265+ compression (and H.265/H.264 options)
- Deep learning: perimeter protection (line crossing, intrusion, region entrance/exiting) with alarm triggering by human/vehicle
- Face capture: Yes
- Rugged protection: NEMA 4X, IP67, IK10
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
2688 × 1520 (4MP).
Yes. It has a motorized varifocal lens with a focal length of 2.8 to 12 mm.
IR illuminator at 850 nm with a supplement light range up to 40 m.
It supports 120 dB WDR.
Line crossing, intrusion, region entrance, and region exiting, with alarm triggering by specified target types (human and vehicle).
IP67 (water/dust resistant), IK10 (vandal resistant), and NEMA 4X anti-corrosion design.
