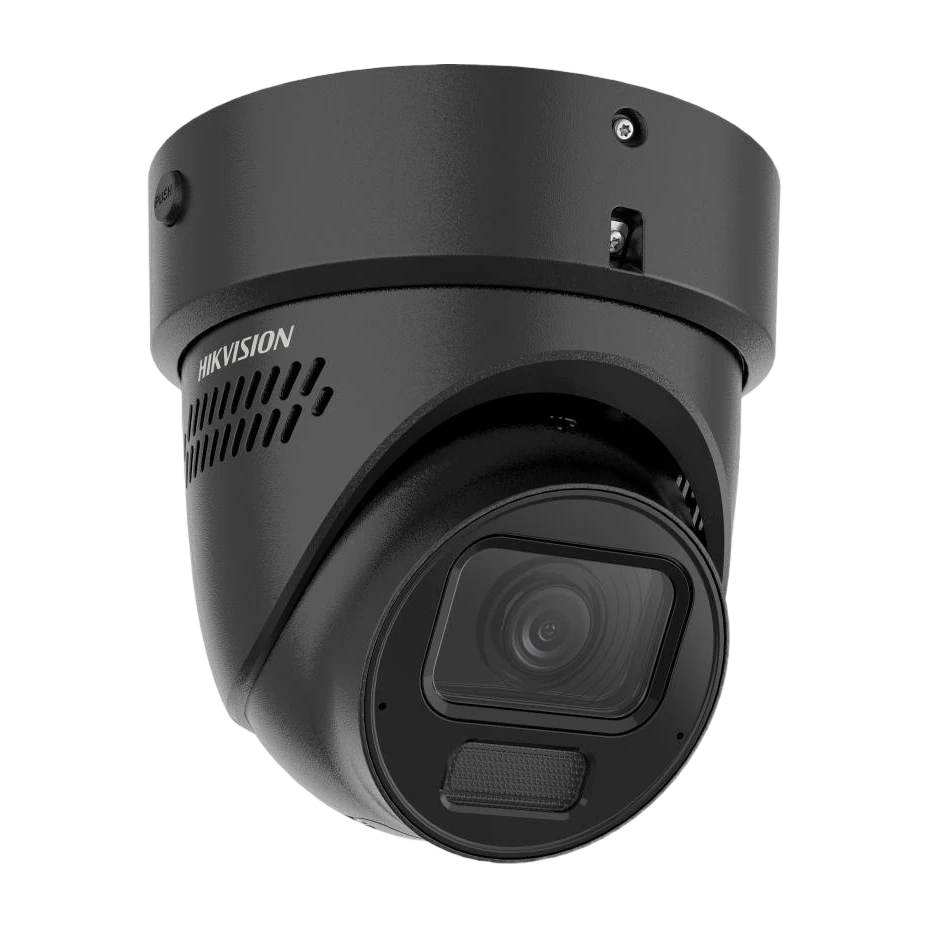

DS-2CD2H66G2H-IZS2UY/S(L)(RB) Hikvision Turret IP Camera
Product Overview
The Hikvision DS-2CD2H66G2H-IZS2UY/S(L)(RB) is a 6MP DarkFighter network turret camera designed for clear identification in day and night conditions. It features a 1/1.8″ progressive scan CMOS sensor and supports up to 3200 × 1800 resolution. The motorized varifocal lens (2.8 to 12 mm) makes it easy to install and adjust the field of view for monitoring areas without needing a hardware swap.
For challenging lighting, the camera includes 120 dB WDR to maintain clarity against strong backlight. Efficient H.265+ compression helps reduce bandwidth and storage while maintaining image quality. For night surveillance, it supports IR illumination (850 nm) with a supplement light range up to 40 m, with smart supplement light enabled.
For intelligent protection, deep learning functions support perimeter protection features such as line crossing, intrusion, and region entrance/exit, with alarm triggering for specified target types including human and vehicle. It also supports face capture and smart scene change detection.
The camera is built for outdoor and demanding environments with IP67 water and dust resistance and IK10 vandal resistance, plus anti-corrosion design for stable protection (NEMA 4X). To deter trespassers, it provides an active strobe light and an audio alarm, with crystal clear audio supported by an arrayed dual-microphone. Connectivity supports ONVIF and simultaneous live view up to 6 channels.
Key Features
- 6MP (max 3200 × 1800) progressive scan CMOS sensor
- Motorized varifocal lens, 2.8 to 12 mm
- 120 dB WDR for clear imaging against strong back light
- DarkFighter technology
- IR supplement light (850 nm) up to 40 m with Smart Supplement Light
- Active strobe light and audio alarm to warn trespassers
- Arrayed dual-microphone for clear audio
- H.265+ compression technology
- IP67 water/dust resistant and IK10 vandal resistant
- Anti-corrosion design for stable protection (NEMA 4X)
- Deep learning perimeter protection: line crossing, intrusion, region entrance/exit
- Alarm triggering by specified target types (human and vehicle)
- Face capture support
- Privacy mask (4 programmable polygon masks)
- Built-in microSD slot supporting up to 512 GB
- PoE support (IEEE 802.3at, Class 4)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
Up to 3200 × 1800.
Motorized varifocal lens from 2.8 to 12 mm.
Yes, Wide Dynamic Range (WDR) of 120 dB.
Up to 40 m (IR supplement light range).
Yes, it supports H.265+ compression technology.
IP67 for water/dust resistance and IK10 for vandal resistance (with NEMA 4X anti-corrosion protection).
