DS-2CD2H86G2H-IZS2UY/S(L)(RB) Hikvision Turret IP Camera
Product Overview

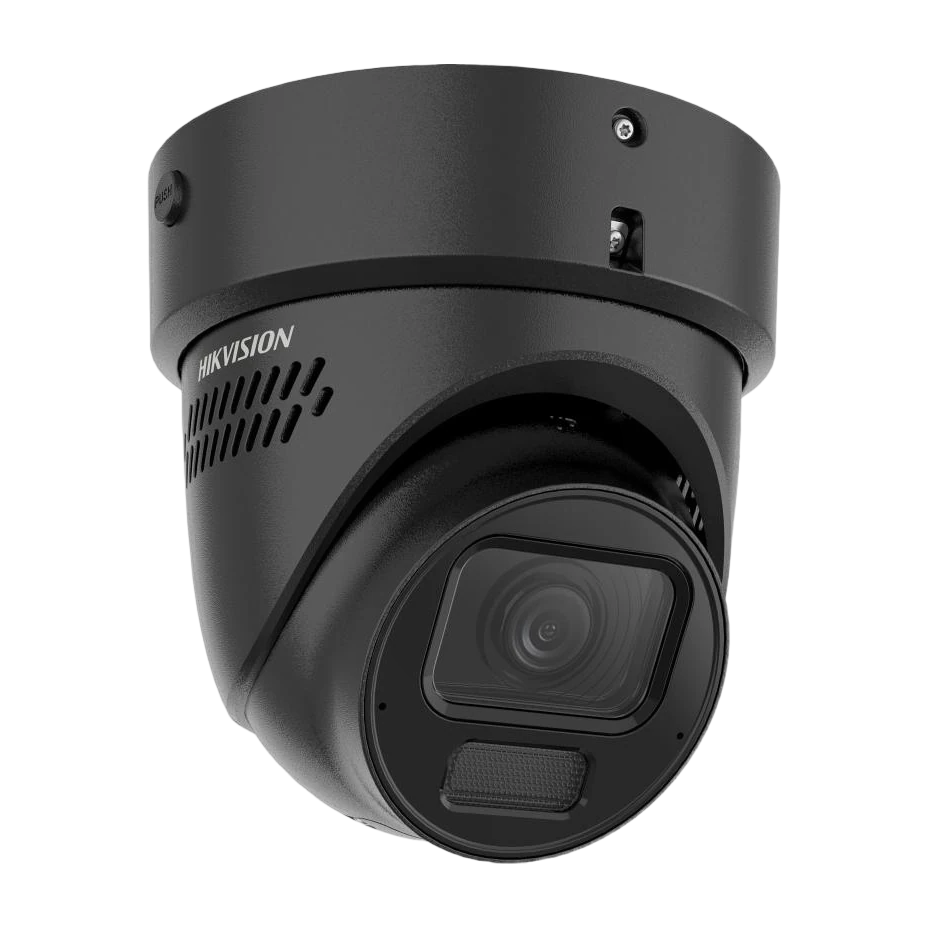

The Hikvision DS-2CD2H86G2H-IZS2UY/S(L)(RB) is an 8MP network turret camera built for clear monitoring in challenging outdoor environments. Powered by DarkFighter, it pairs a 1/1.8″ progressive scan CMOS sensor with a motorized varifocal lens (2.8 to 12 mm) for easy installation and flexible field-of-view adjustment. With a max resolution of 3840 × 2160 and 120 dB WDR, it delivers clear imaging even in high-contrast scenes and under strong backlight.
For night operation, the camera includes an IR illuminator with 850 nm wavelength and a smart IR function, supporting illumination up to 40 m. Audio is supported with an arrayed dual-microphone for crystal clear sound and a built-in speaker for audible warnings. To deter trespassers, the unit supports an active strobe light and alarm outputs/inputs.
Advanced analytics are included with deep learning-based perimeter protection (line crossing, intrusion, region entrance/exiting) with alarm triggering by specified human and vehicle targets, plus face capture support. Video compression uses efficient H.265+ / H.265 / H.264, with multi-stream support for various recording and viewing needs.
Designed for rugged installations, it features IP67 water and dust resistance, IK10 vandal resistance, and NEMA 4X anti-corrosion protection, making it suitable for reliable outdoor surveillance.
Key Features
- 8MP (3840 × 2160) 1/1.8″ progressive scan CMOS sensor
- Motorized varifocal lens (2.8 to 12 mm) for easy installation and monitoring
- 120 dB WDR for clear imaging against strong back light
- DarkFighter technology
- IR illuminator (850 nm) up to 40 m and Smart Supplement Light
- Active strobe light and audio alarm to warn trespassers
- Arrayed dual-microphone for clear audio and built-in speaker
- Deep learning perimeter protection: line crossing, intrusion, region entrance/exiting (human and vehicle)
- Face capture supported
- H.265+ compression for efficient bandwidth/storage
- Water/dust resistant (IP67) and vandal resistant (IK10), anti-corrosion NEMA 4X
- ONVIF support and multi-stream (main/sub/third stream)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 3840 × 2160 (8MP).
Yes. It uses a motorized varifocal lens with focal length 2.8 to 12 mm.
It supports Wide Dynamic Range (WDR) up to 120 dB.
The IR supplement light range is up to 40 m.
Yes. It supports line crossing, intrusion, and region entrance/region exiting, with alarm triggering by specified target types (human and vehicle).
It is rated IP67 (water and dust resistant) and IK10 (vandal resistant), with NEMA 4X anti-corrosion protection.
