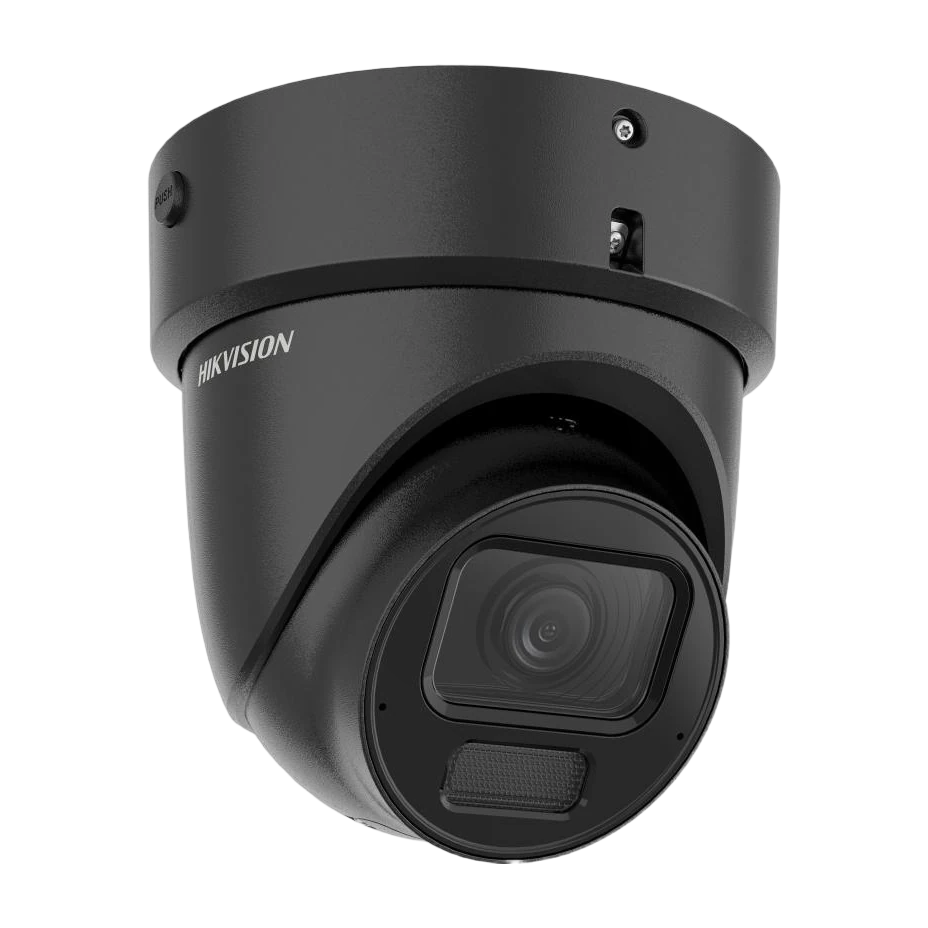

DS-2CD2H86G2H-IZSY Hikvision Turret IP Camera

SKU: DS-2CD2H86G2H-IZSY Category:
8MP
Resolution
DarkFighter
Night Vision
40M
Night Vision Range
IP Camera
Device Type

Product Overview

The Hikvision DS-2CD2H86G2H-IZSY is an 8MP IP network camera with a motorized varifocal turret design, built for flexible installation and dependable outdoor monitoring. Featuring a 1/1.8″ progressive scan CMOS sensor, it delivers up to 3840 × 2160 resolution and supports advanced imaging performance with 120 dB WDR to maintain clear detail under strong backlight conditions. The camera includes a motorized varifocal lens (2.8 to 12 mm) for easy zoom adjustment during setup, with wide-to-tele field-of-view coverage for both broad scenes and tighter monitoring.

For low-light operation, the camera uses an IR illuminator (850 nm) with a supplement light range up to 40 m, enabling day/night capture with an IR cut filter. It also supports deep-learning based intelligence for perimeter protection and classification, including line crossing, intrusion, and region entry/exit, with alarm triggering based on specified target types (human and vehicle). Additional smart capabilities include face capture and motion detection.

Designed for harsh environments, the camera offers IP67 water and dust resistance and IK10 vandal resistance, with an anti-corrosion design rated for NEMA 4X protection. Efficient H.265+ compression helps reduce bandwidth and storage requirements, while features such as built-in microSD storage support (up to 512 GB) and ONVIF integration enable straightforward deployment in IP surveillance systems.

Key Features

  • 8MP (3840 × 2160) max resolution
  • Motorized varifocal lens: 2.8 to 12 mm (integrated)
  • 120 dB WDR for strong backlight scenes
  • IR illuminator (850 nm) supplement light up to 40 m
  • DarkFighter powered for low-light performance
  • Deep learning perimeter protection: line crossing, intrusion, region entrance, region exiting
  • Alarm triggering by specified target types (human and vehicle)
  • Face capture support
  • H.265+ compression technology
  • Water/dust resistant IP67 and vandal resistant IK10
  • Anti-corrosion design with NEMA 4X rating
  • Supports PoE (IEEE 802.3af, Class 3) and 12 VDC power

Watch Product Videos

Watch real demos, setup guides, night-vision tests, and feature highlights for this model.

Downloads

Access datasheets, manuals, and user guides for this product.

File
Action
Data Sheet PDF
Data Sheet PDF

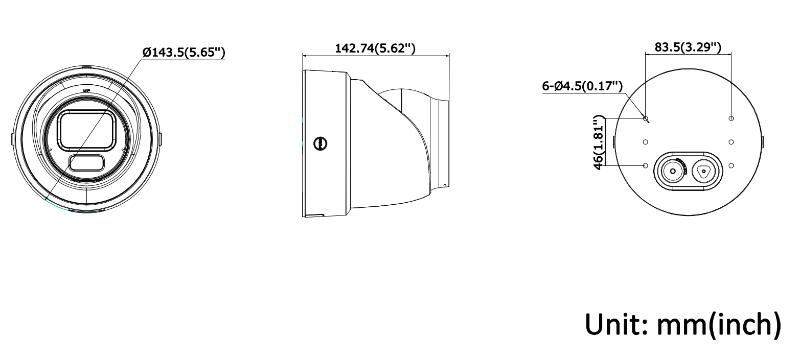

Dimensions PNG
