DS-2CD3186G2-IS(U) Hikvision Dome IP Camera
Product Overview

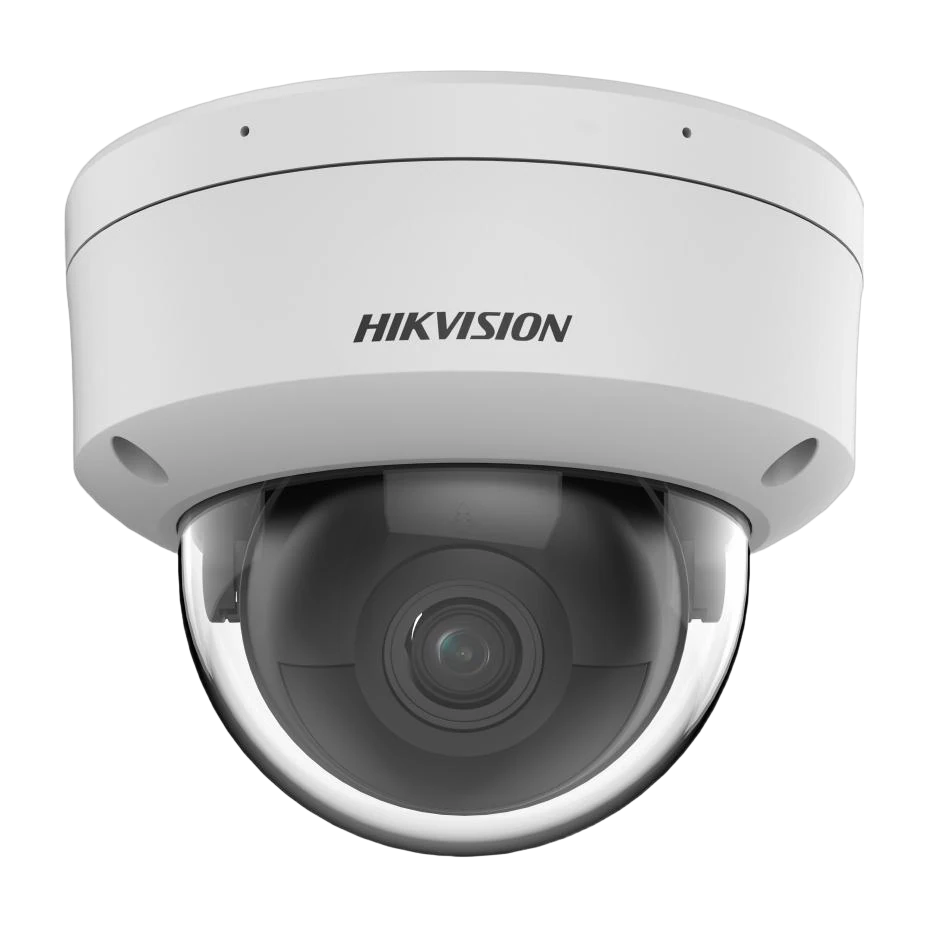

The Hikvision DS-2CD3186G2-IS(U) is an 8MP AcuSense IR fixed dome network camera designed for reliable perimeter and area security with intelligent detection. It supports human and vehicle target classification using deep learning, helping reduce false alarms and improve alarm efficiency on front- and back-end systems. Equipped with a 1/1.8″ progressive scan CMOS sensor and 8MP maximum resolution (3840 × 2160), the camera delivers detailed imaging for monitoring applications. For challenging lighting conditions, it features 120 dB true WDR to maintain clear visibility against strong back light, alongside image enhancement technologies such as BLC/HLC, 3D DNR and defog. Low-light performance is powered by Hikvision DarkFighter technology and includes an IR illuminator with a supplement light range up to 40 m (850 nm), enabling night monitoring. Compression is efficient with H.265+ to help optimize bandwidth and storage.
The camera is built with Hikvision Embedded Open Platform (HEOP) for flexible integration, including importing third-party applications, and provides onboard resources (1.5 TOPS computing power, 40 MB memory, 350 MB smart RAM, and 2 GB eMMC). It also supports microSD/microSDHC/microSDXC storage (up to 512 GB), PoE (IEEE 802.3af Class 3), and a robust set of network and security features including HTTPS, 802.1X, and TLS support. With IP67 water-and-dust resistance and IK10 vandal resistance, it is suitable for outdoor deployments.
Key Features
- 8MP max resolution (3840 × 2160)
- AcuSense human and vehicle target classification (deep learning based)
- 120 dB true WDR for strong backlight conditions
- Powered-by DarkFighter low-light performance
- IR illuminator up to 40 m (850 nm) and smart supplement light
- H.265+ compression technology
- HEOP support with open resources (HEOP 2.0 OpendevSDK) and third-party app integration
- 1.5 TOPS computing power, 40 MB system memory, 350 MB smart RAM, 2 GB eMMC storage
- Water and dust resistant IP67 and vandal-resistant IK10
- Fixed focal lens options: 2.8 mm / 4 mm / 6 mm (model-specific variants)
- PoE support (IEEE 802.3af, Class 3)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
It supports up to 3840 × 2160 (8MP) maximum resolution.
Yes. It focuses on human and vehicle target classification based on deep learning.
The IR illuminator supplement light range is up to 40 m.
It provides 120 dB true WDR.
It supports H.265+ (also H.265/H.264/H.264+ options depending on stream).
Yes. It is IP67 water and dust resistant and IK10 vandal resistant.
