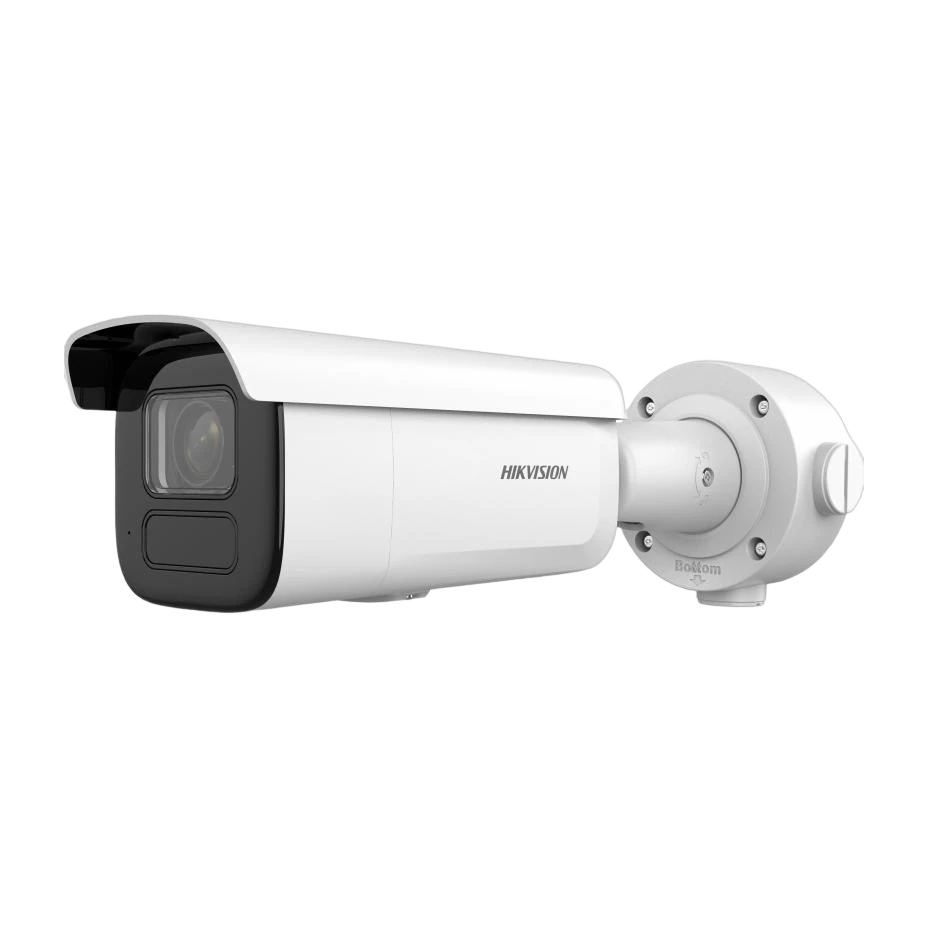

DS-2CD3686G2T-IZS(Y) Hikvision Bullet IP Camera
Product Overview
The Hikvision DS-2CD3686G2T-IZS(Y) is an 8 MP AcuSense varifocal bullet network camera designed for accurate target detection and reliable all-weather performance. It uses a 1/1.8″ progressive scan CMOS sensor to deliver up to 3840 × 2160 maximum resolution. For challenging lighting, the camera features 120 dB true WDR and advanced image enhancement tools such as BLC, HLC, 3D DNR, and Defog.
A motorized varifocal lens (2.7 to 13.5 mm or 7 to 35 mm optional) supports convenient installation and provides flexible field-of-view options. For low-light monitoring, it is powered by Hikvision DarkFighter technology and includes IR illumination (850 nm) with smart supplemental light support.
Built on Hikvision AcuSense, the camera focuses on human and vehicle target classification using deep learning. This improves alarm efficiency and effectiveness by enabling smart event triggers such as motion detection that supports specified target types (human and vehicle), as well as perimeter protection options like line crossing and intrusion.
Connectivity and platform support include HEOP (Hikvision Embedded Open Platform) for importing third-party applications and up to 1.5 TOPS computing power. Video encoding supports efficient H.265+ as well as H.265/H.264 options. The camera provides audio and alarm interfaces, supports ONVIF/ISAPI/SDK/ISUP, and is rated IP67 for water and dust resistance and IK10 for vandal resistance.
Key Features
- 8 MP (up to 3840 × 2160) progressive scan CMOS
- AcuSense deep learning human and vehicle classification alarms
- Motorized varifocal lens for easy installation (2.7–13.5 mm or 7–35 mm optional)
- 120 dB true WDR for clear imaging against strong backlight
- DarkFighter low-light performance with IR illumination (850 nm)
- Efficient H.265+ compression technology
- 3D DNR for clean and sharp images
- IP67 water/dust resistant and IK10 vandal-resistant
- Hikvision Embedded Open Platform (HEOP) and third-party application support
- HEOP 1.5 TOPS computing power; 40 MB system memory, 350 MB smart RAM, 2 GB eMMC
- Audio and alarm interface available (audio in/out and 3 in / 3 out alarm)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
3840 × 2160 (8 MP).
Yes. Hikvision AcuSense enables human and vehicle target classification for smarter alarms.
120 dB true WDR.
Motorized varifocal lens options: 2.7 to 13.5 mm or 7 to 35 mm (optional).
Yes. It is rated IP67 (water/dust resistant) and IK10 (vandal-resistant).
Powered-by-DarkFighter technology with IR illumination (850 nm).
