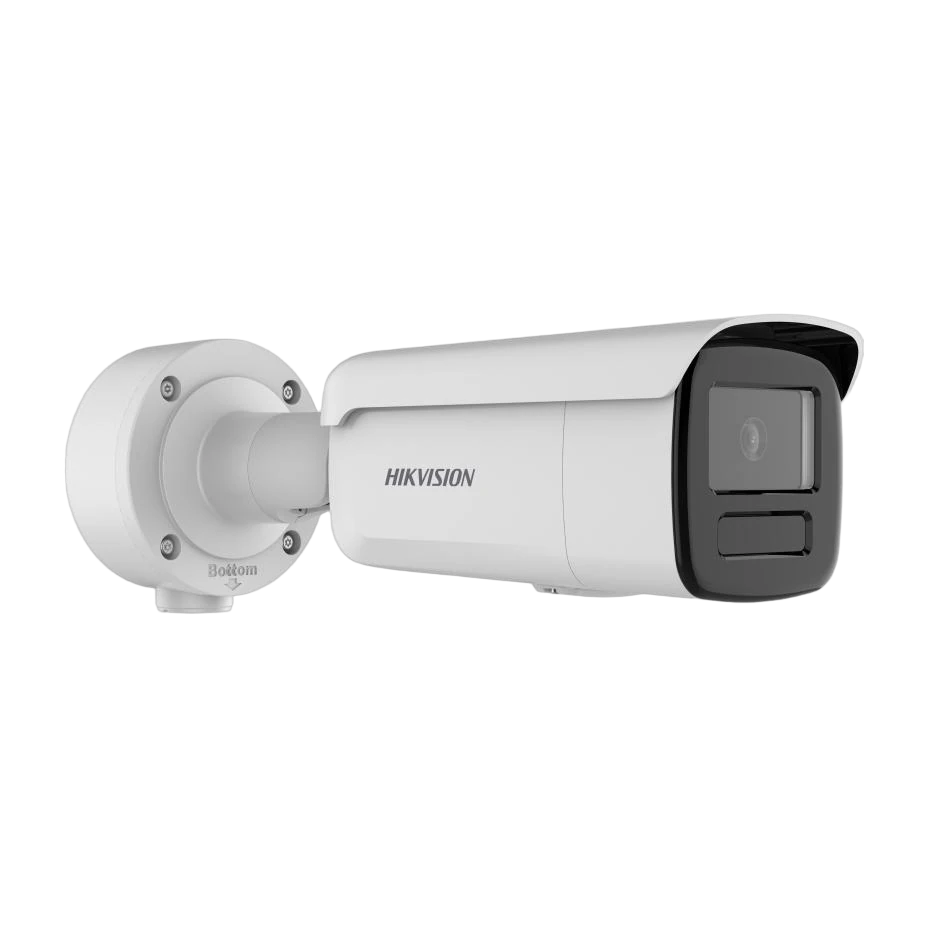

DS-2CD3T86G2-4ISY(Y) Hikvision Bullet IP Camera
Product Overview
The Hikvision DS-2CD3T86G2-4ISY(Y) is an 8 MP fixed bullet network camera designed for reliable, high-detail monitoring. It uses a 1/1.8″ progressive scan CMOS sensor to capture up to 3840 × 2160 (8 MP) resolution and delivers clear imagery in challenging lighting conditions. Powered by Hikvision DarkFighter technology, the camera provides strong low-light performance and uses an 850 nm IR illuminator with a supplement light range up to 90 m, supporting smart supplementary lighting for more consistent results.
For demanding outdoor scenes, the camera features 120 dB true WDR to improve clarity against strong backlight. Imaging is further enhanced with BLC, HLC, 3D DNR and Defog, helping reduce noise and improve visibility in foggy or high-contrast environments. Video compression is handled efficiently using H.265+ family codecs, helping reduce bandwidth and storage requirements.
A key capability is AcuSense-style deep-learning target classification focused on people and vehicles. Motion detection supports alarm triggering by specified target types (human and vehicle), and perimeter protection includes line crossing, intrusion, region entrance, and region exiting, with alarms also triggerable by human/vehicle targets.
With water and dust resistance rated IP67, the camera is suitable for outdoor installations. It also supports HEOP (Hikvision Embedded Open Platform) for importing third-party applications, and offers features such as ROI, target cropping, audio input/output, and onboard microSD storage (up to 512 GB).
Key Features
- 8 MP (3840 × 2160) fixed bullet network camera
- 1/1.8″ progressive scan CMOS sensor
- Powered-by-DarkFighter low-light performance
- 850 nm IR illuminator; smart supplementary light; up to 90 m range
- 120 dB true WDR for clear imaging in backlight conditions
- H.265+ efficient compression
- Human and vehicle targets classification (deep learning)
- Perimeter protection: line crossing, intrusion, region entrance, region exiting
- Smart events including audio exception, defocus, unattended baggage, object removal
- IP67 water and dust resistant
- HEOP 2.0 OpenDevSDK; supports third-party application importing
- PoE (IEEE 802.3at, Class 4) and 12 VDC power support
- Built-in microSD/microSDXC slot up to 512 GB
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 3840 × 2160 (8 MP).
Yes. It uses IR illumination (850 nm) with smart supplementary light and supports DarkFighter low-light performance.
The IR supplement light range is up to 90 m.
Yes. The camera supports 120 dB true WDR.
Main stream supports H.265/H.264 and H.265+/H.264+; additional streams support H.265/H.264 and MJPEG (depending on stream).
The camera is rated IP67 for water and dust resistance.
