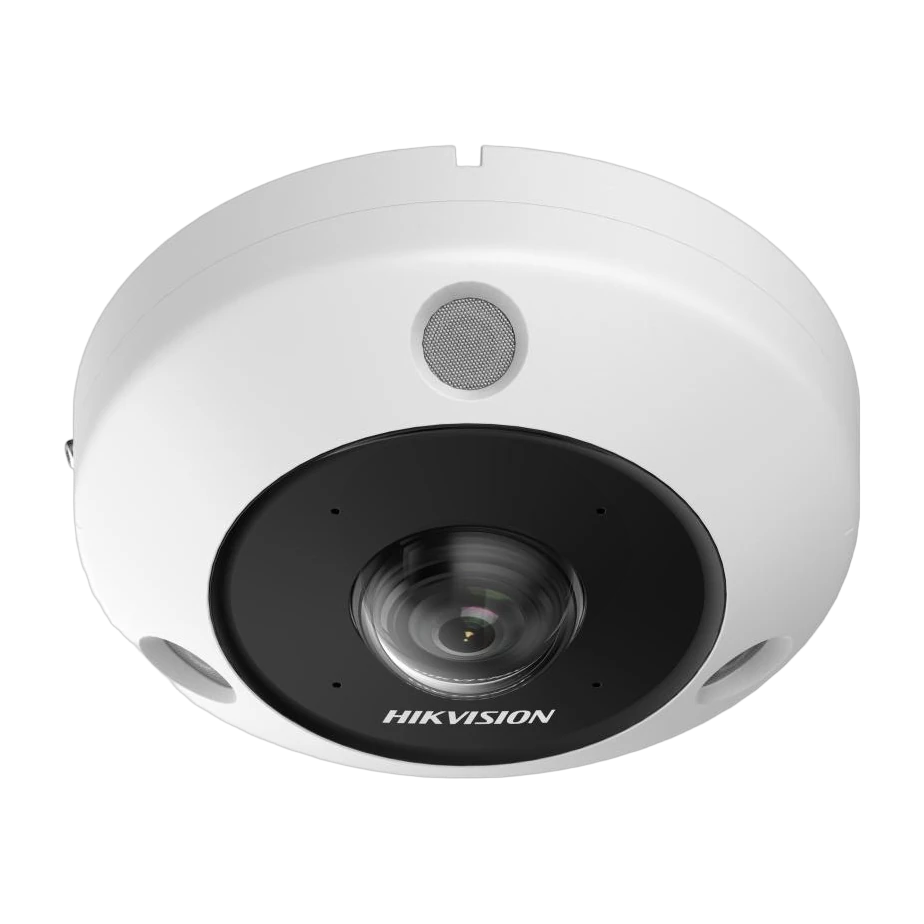

DS-2CD63C5G1-IVS Hikvision Fisheye IP Camera
Product Overview
The Hikvision DS-2CD63C5G1-IVS is a 12 MP DeepinView 360-degree fisheye network camera designed to capture a complete panoramic view with progressive-scan imaging. It uses a 1/1.8″ progressive scan CMOS sensor and supports a maximum resolution of 3504 × 3504 for highly detailed monitoring even when using multi-view dewarping modes. The camera offers up to 20 display modes, including fisheye, 180°/360° panorama views, and multiple PTZ-style layouts such as 4PTZ and fisheye + 3PTZ/Fusion views for intuitive on-screen viewing.
For low-light performance, the camera includes a built-in IR illuminator with 3 independently controlled IR lights, delivering up to 15 m illumination and good visibility in near-zero light conditions. Image dewarping enables normal-style viewing, while the camera’s HEOP (Hikvision Open Platform) and open development resources support smart features and deep-learning capabilities.
The DS-2CD63C5G1-IVS also supports built-in two-way audio with a microphone array and speaker, plus motion and tampering alarms. It is designed for smart analytics including people counting with queue management, heat maps, and intersection analysis. With IP67 water-and-dust resistance and IK10 vandal resistance, it is suitable for demanding indoor/outdoor surveillance deployments.
Key Features
- 12 MP 1/1.8″ progressive scan CMOS with max 3504 × 3504
- 360° panoramic fisheye view with multiple dewarping/display modes (up to 20 modes)
- Heatmap (space and time heat map) based on deep learning
- People Counting with people entering/exiting/passing counted separately
- Queue Management (regional people queuing-up and waiting time detection) with reporting and raw data export
- Intersection Analysis for intersection-like scenes (up to 10 ways for one intersection)
- Multi dewarping modes for intuitive normal viewing
- Built-in mic and speaker for two-way audio
- Built-in IR illuminator: 3 IR lights, up to 15 m, IR wavelength 850 nm
- Support for 4PTZ and fisheye + 3PTZ/4PTZ Fusion views while keeping high clarity
- IP67 water & dust resistance and IK10 vandal resistance
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
It supports a maximum resolution of 3504 × 3504.
Yes. It provides a 360-degree panoramic image using a fisheye lens.
The IR illuminator range is up to 15 m.
Yes. It includes a built-in microphone (4 microphones) and a built-in speaker (1 speaker) for two-way audio.
It supports people counting, queue management, heat maps, and intersection analysis.
It is rated IP67 for water and dust resistance and IK10 for vandal resistance.
