DS-2CD63C5G1-S/RC Hikvision Fisheye IP Camera

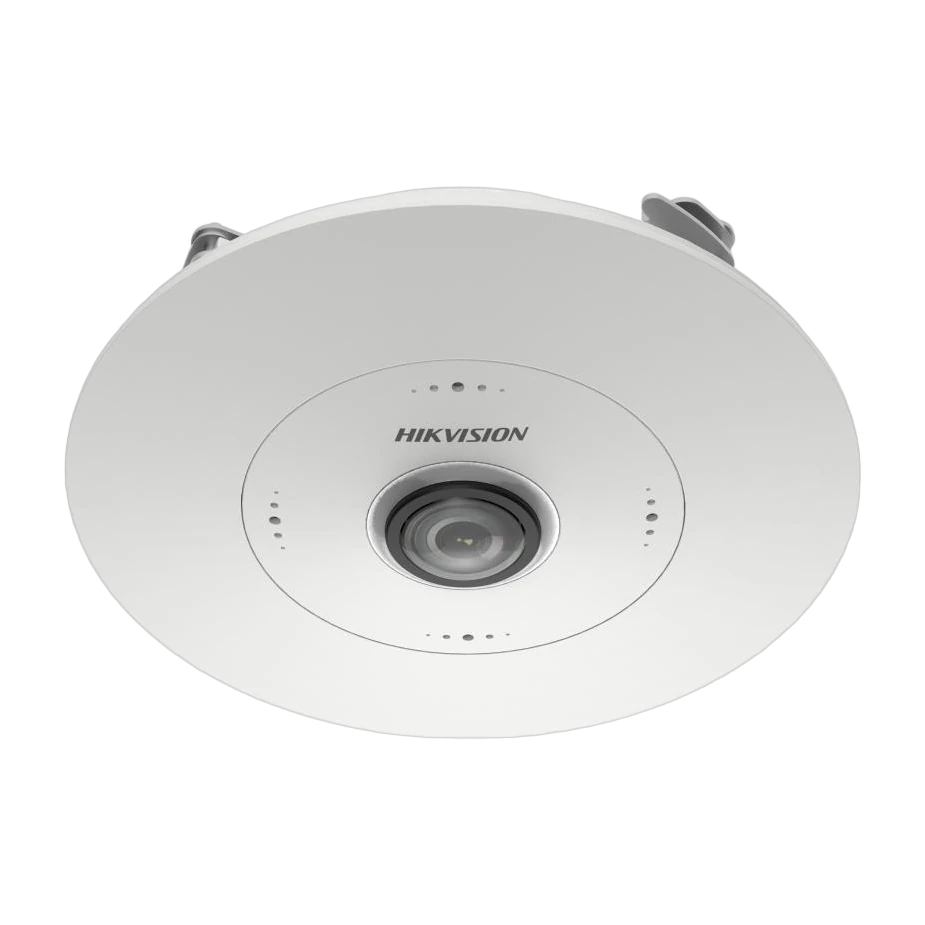

The Hikvision DS-2CD63C5G1-S/RC is a 12 MP fisheye network IP camera designed for 360° panoramic coverage. Using a 1/1.8″ progressive scan CMOS sensor, it supports a maximum resolution up to 3504 × 3504, delivering high-detail images for accurate monitoring even when using fisheye-to-view dewarping modes. The camera provides up to 20 display modes to match different mounting styles (wall/table/ceiling) and viewing preferences, including fisheye view, 180° panorama view, 360° panorama with PTZ-style dewarping, and multi-PTZ/“fusion” configurations for intuitive multi-view monitoring.

For analytics, the camera includes Hikvision deep-learning features such as People Counting (counting entries, exits, and pass-by), Queue Management (regional queuing-up and waiting time detection), Heat Map visualization (space and time heat map charts), and Intersection Analysis (flow analysis in intersection-like scenes). These smart functions can generate reports, support scheduled and real-time data uploading, and trigger related linkages.

On the video side, it streams with H.265+/H.265/H.264 compression and offers region-of-interest (ROI) encoding across fixed regions per stream. Network connectivity supports standard protocols and simultaneous live view up to 20 channels. Audio support includes built-in microphones (4) plus line-in/line-out. The camera also includes on-board microSD support (up to 256 GB) and extensive security and network storage capabilities for surveillance deployments.
