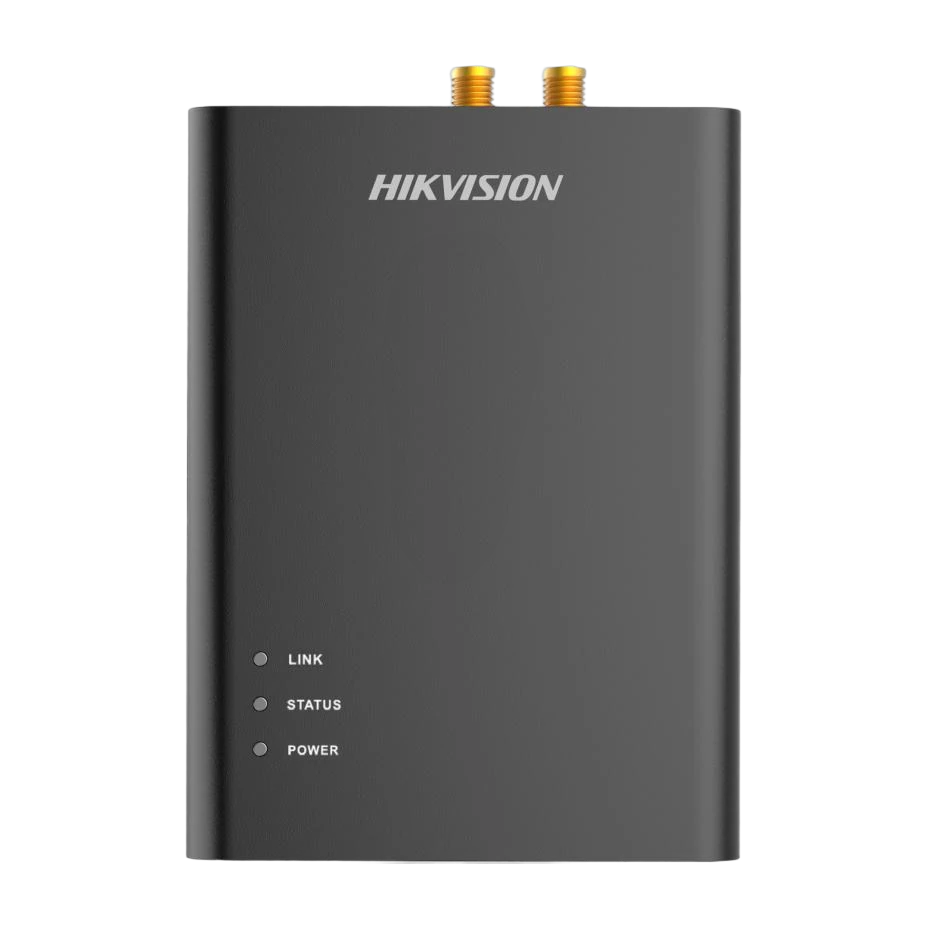

DS-2CD6425G2-C2 Hikvision Box IP Camera
Product Overview
The Hikvision DS-2CD6425G2-C2 is a 2MP separated network IP camera designed for reliable surveillance with advanced imaging and smart video compression. It uses a 1/2.7″ progressive scan CMOS sensor, delivering up to 1920 × 1080 resolution and configurable multi-stream video for flexible viewing and recording. For bandwidth efficiency, the camera supports H.265+ / H.265 and H.264 compression, including scalable video coding (SVC), plus ROI (region of interest) with four fixed regions per stream. For challenging lighting conditions, it features 120 dB true WDR to help maintain clarity against strong backlight. Noise reduction technologies such as 3D DNR help provide clean and sharp images.
Designed for modern deployments, the camera supports Hikvision Embedded Open Platform (HEOP) and can import third-party applications. It includes embedded computing resources with up to 4 TOPS computing power, 60 MB system memory, 375 MB smart RAM, and 2 GB eMMC storage for sharing resources. Network capabilities include secure protocols (HTTPS/SSL/TLS, SRTP, WebSocket) and support for simultaneous live view up to 20 channels, alongside standard client software such as iVMS-4200 and Hik-Connect.
The DS-2CD6425G2-C2 also includes audio and alarm interfaces, built-in microSD/microSDHC/microSDXC storage up to 256 GB, and smart event features such as line crossing and intrusion detection. Overall, it is built for scalable IP video systems requiring performance, flexibility, and clear imaging.
Key Features
- 2MP resolution with 1920 × 1080 max
- 1/2.7″ progressive scan CMOS sensor
- Efficient H.265/H.265+ compression for bandwidth and storage savings
- 120 dB true WDR for clear imaging in strong backlight
- 3D DNR for clean and sharp images
- Hikvision Embedded Open Platform (HEOP) and third-party application importing
- HEOP embedded resources: 4 TOPS computing power, 60 MB system memory, 375 MB smart RAM, 2 GB eMMC
- Scalable video coding (SVC) for H.264 and H.265 encoding
- Region of Interest (ROI): 4 fixed regions per stream; target cropping supported
- Multi-stream support (main/sub/third streams) with configurable frame rates
- Audio: mono sound; audio input and output supported
- Alarm I/O: 2 inputs and 1 output
- Events: motion detection, video tampering, line crossing, intrusion, region entrance/exiting
- On-board storage via microSD up to 256 GB
- Ethernet interface (RJ45) with 10/100 M self-adaptive
- Security features including HTTPS encryption, 802.1X authentication, IP address filter, watermark, TLS 1.1/1.2/1.3
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
Channel 1 and Channel 2 support a maximum resolution of 1920 × 1080.
Main stream supports H.265/H.264; sub-stream supports H.265/H.264/MJPEG; third stream supports H.265/H.264.
Yes. It supports 120 dB true WDR.
Yes. It provides 4 fixed ROI regions for each stream.
It has a built-in memory card slot supporting microSD/microSDHC/microSDXC cards up to 256 GB.
It supports simultaneous live view up to 20 channels and includes client support such as iVMS-4200 and Hik-Connect.
