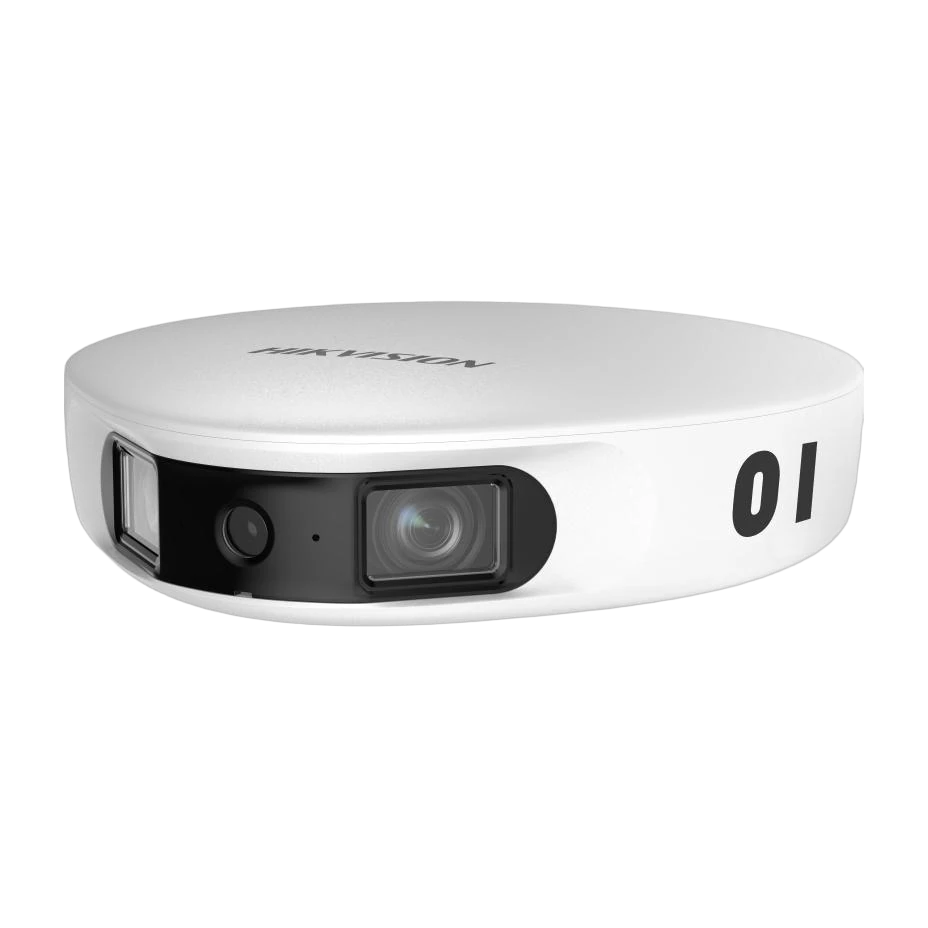

DS-2CD6982G0-U Hikvision Fisheye IP Camera
Product Overview
The Hikvision DS-2CD6982G0-U is a 16MP 180° panoramic (Panoramic View) network camera designed for wide-area monitoring with accurate on-site audio capture. Using a 1/1.8″ progressive scan CMOS image sensor, the camera delivers a panoramic maximum resolution of 7168 × 2160, while a tracking shot mode provides a 1920 × 1080 tracking output for focused viewing when needed. For low-light environments, the datasheet specifies a minimum illumination of 0.03 Lux (F1.0, AGC ON). The lens offers a fixed M16 mount with ultra-wide horizontal field of view around 200° ± 10° (options listed for 2.0 mm or 2.8 mm), supporting comprehensive situational awareness. Audio support is built in with two microphones and environment noise filtering. For installation flexibility and recording continuity, the camera includes on-board storage using built-in eMMC up to 200GB and supports network storage using NAS (NFS, SMB/CIFS). Connectivity supports simultaneous live view up to 20 channels, and it supports ONVIF (Profile S and Profile G) along with ISAPI, SDK, and ISUP. Power can be supplied via 12 VDC or PoE (IEEE 802.3at, Class 4). Built for outdoor use, the camera is rated IP65 for water and dust resistance and operates in temperatures from -20 °C to 60 °C (humidity 95% or less, non-condensing).
Key Features
- 16MP imaging (Panoramic View max 7168 × 2160)
- 180° panoramic coverage with 2.0 mm or 2.8 mm fixed lens options (horizontal FOV 200° ± 10°, vertical FOV 56°)
- Tracking Shot max 1920 × 1080
- Minimum illumination 0.03 Lux (F1.0, AGC ON)
- On-board storage: built-in eMMC up to 200 GB
- Built-in two microphones
- Auto color temperature correction with built-in sensor
- Water and dust resistant (IP65)
- H.264/H.265 video compression with configurable bit rates
- Simultaneous live view up to 20 channels
- ONVIF (Profile S, Profile G) and other integration options (ISAPI, SDK, ISUP)
- Power options: 12 VDC ±25% or PoE (IEEE 802.3at, Class 4)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum Panoramic View resolution is 7168 × 2160.
The maximum Tracking Shot resolution is 1920 × 1080.
Yes. It has built-in eMMC on-board storage up to 200 GB.
Yes. The camera includes 2 built-in microphones with environment noise filtering.
Minimum illumination is 0.03 Lux (F1.0, AGC ON).
The camera is rated IP65 for water and dust resistance.
