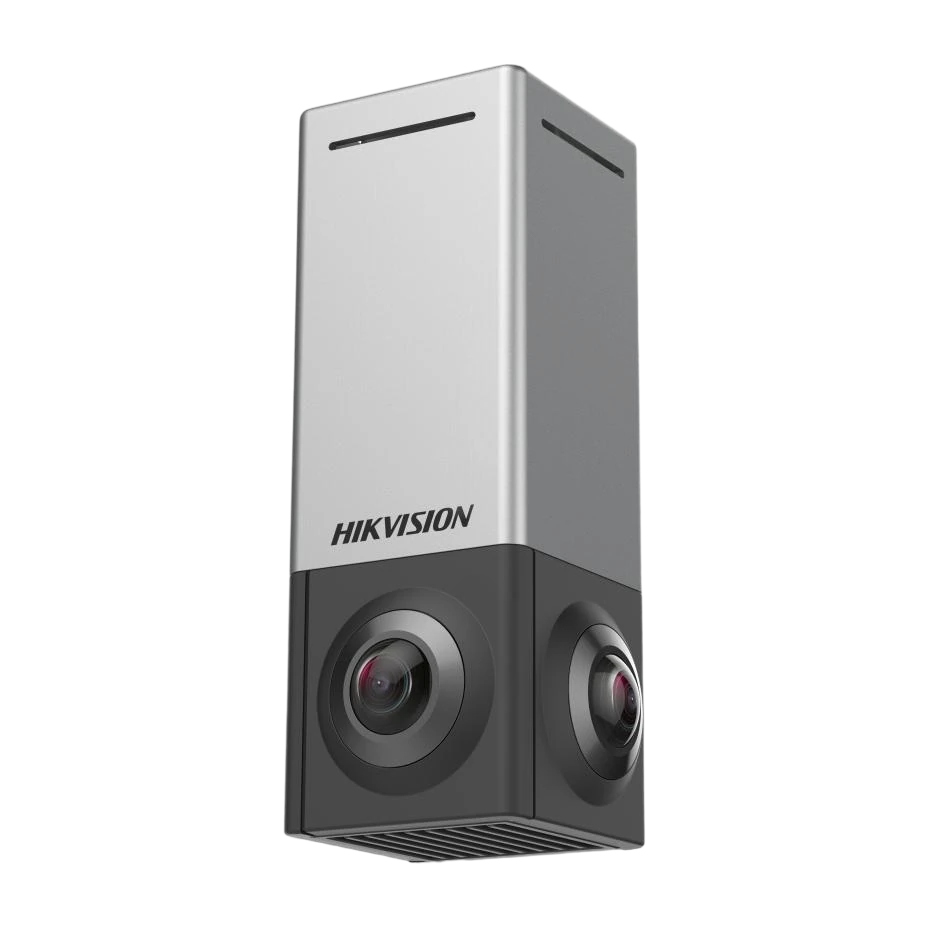

DS-2CD6984G1/VR-U/NFC Hikvision Fisheye IP Camera
Product Overview
The Hikvision DS-2CD6984G1/VR-U/NFC is a panoramic 720° VR network camera designed to cover a full scene using four fixed 2 mm lenses. Each lens supports 8 MP imaging, with the camera providing a stitched panoramic view up to 7680 × 3840 for high-detail wide-area monitoring. It uses efficient H.265 compression (also supporting H.264/H.264+) to help deliver clear video while managing bandwidth for continuous surveillance.
For low-light performance, the datasheet specifies a minimum illumination of 0.002 Lux in color mode with F1.2 and AGC on, supporting identification even in darker conditions. The camera supports flexible video profiles including up to 25 fps at 7680 × 3840 in 50 Hz operation and up to 30 fps at the same resolution in 60 Hz operation.
Storage and resilience are supported with an onboard microSD/microSDHC/microSDXC slot up to 512 GB. For connectivity and deployment, the unit provides an Ethernet interface (RJ45) and an FC fiber optical interface with an SFP module for single-mode transmission up to 20 km. The camera is rated IP67, making it suitable for outdoor installation and harsh environments. It also supports security features such as HTTPS encryption and TLS 1.2/1.3, and includes audio with built-in microphone support.
Key Features
- 32 MP 720° panoramic VR network camera (4 lenses, image splicing up to 720°)
- 8 MP resolution per lens; panorama up to 7680 × 3840
- H.265 compression technology (also H.264/H.264+/H.265+ supported)
- On-board microSD up to 512 GB
- 1 FC fiber optical interface with SFP module, single mode, 20 km transmission distance
- Water and dust resistant, IP67
- Minimum illumination (color) 0.002 Lux @ (F1.2, AGC ON)
- Built-in microphone (1)
- Simultaneous live view up to 20 channels; up to 32 users
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum panorama resolution is 7680 × 3840.
The 4-lens setup covers up to 720° through image splicing.
Main stream video compression supports H.265/H.264/H.264+/H.265+.
Yes. It includes a microSD/microSDHC/microSDXC card slot supporting up to 512 GB.
It provides a RJ45 Ethernet port (10/100/1000 M) and an FC fiber optical interface using an SFP module for single-mode transmission up to 20 km.
Yes. It is rated IP67 for water and dust resistance.
