DS-2CD6D54G2-IZHS(/NFC) Hikvision Fisheye IP Camera
Product Overview

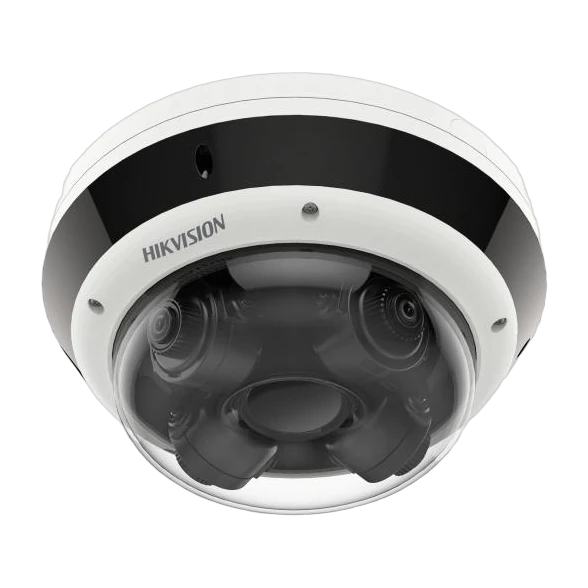

The Hikvision DS-2CD6D54G2-IZHS(/NFC) is a 4-directional multisensor dome IP network camera designed to deliver a combined 360° field of view with no blind area monitoring. It integrates four adjustable motorized lenses (pan/tilt/rotate) within one compact housing so monitoring coverage can be tailored by installation angle. Each lens supports up to 5 MP resolution for detailed viewing, making the camera suitable for video wall applications and wide-area perimeter surveillance.
For challenging lighting conditions, the camera features 120 dB true WDR for clear imaging against strong back light. Day/Night operation includes an IR cut filter and IR illumination to support night monitoring. It also includes image enhancement technologies such as BLC, HLC, 3D DNR and defog, plus EIS image stabilization to help maintain view clarity.
The DS-2CD6D54G2-IZHS(/NFC) supports deep learning smart events for human and vehicle target classification (up to 4 channels), including line crossing, intrusion, and region entrance/exit detection. It offers PTRZ for efficient installation, and includes audio input/output and alarm I/O for integration with external devices.
Built for outdoor environments, the camera is rated IP67 and vandal proof IK10, with moderate anti-corrosion protection. It supports modern network features including ONVIF profiles, Hikvision iVMS-4200 and Hik-Connect, and NAS recording with ANR.
Key Features
- 4-directional multisensor design with 360° field of view (no blind area monitoring)
- Four adjustable motorized lenses in one camera cover (pan 0°–350°, tilt 0°–90°, rotate -90°–90°)
- Up to 5 MP per lens for detailed coverage and video wall display
- 120 dB true WDR for clear imaging in strong back light
- IR illumination up to 30 m (850 nm)
- Human and vehicle target classification using deep learning (up to 4 channels)
- Perimeter protection: line crossing, intrusion, region entrance, region exiting with smart alarm triggering by target type
- Unique PTRZ capability for efficient installation
- Audio: 1 input and 1 output; alarm: 2 inputs and 2 outputs
- Water/dust resistant IP67 and vandal proof IK10
- Network storage support (NAS NFS/SMB/CIFS) and ANR (Auto Network Replenishment)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
It uses four adjustable lenses to cover up to 360° field of view to ensure no blind area monitoring.
The datasheet states each lens supports up to 5 MP.
Yes. It includes an IR illuminator (IR cut filter for day/night) and supports IR night vision.
The IR supplementary light range is up to 30 m.
Yes. It supports 120 dB true WDR.
Deep learning smart events for human and vehicle classification, including line crossing detection, intrusion detection, and region entrance/exit detection.
