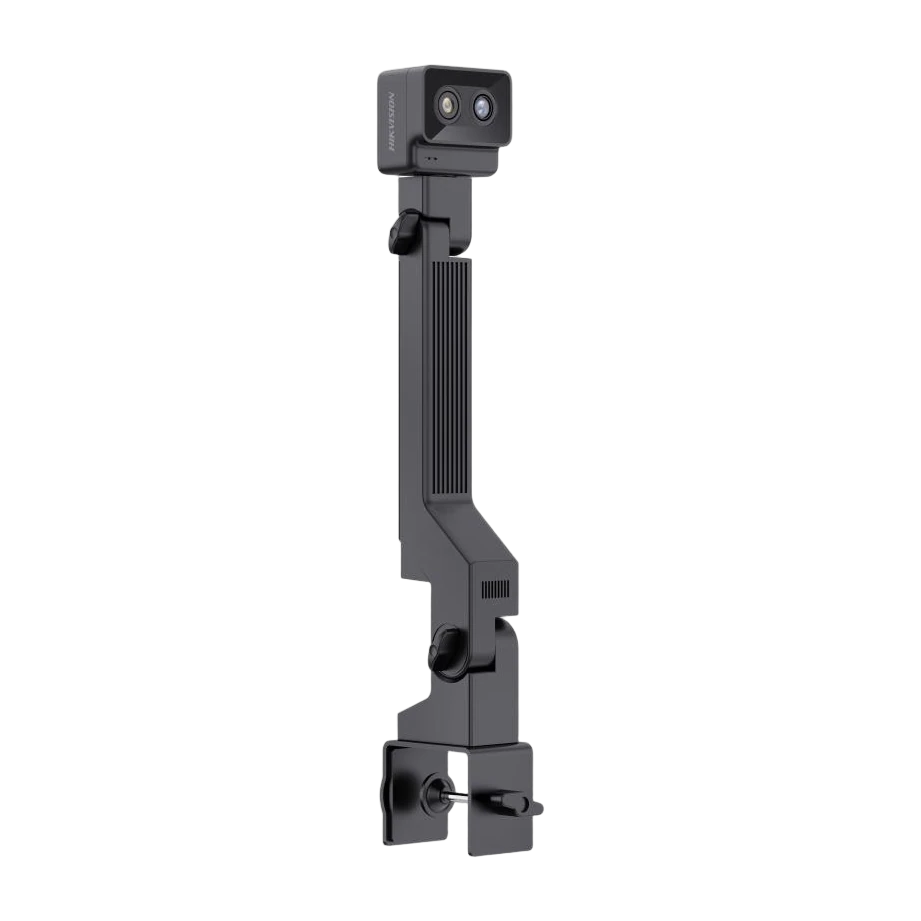

DS-2CD6F82G0-S Hikvision Box IP Camera
Product Overview
The Hikvision DS-2CD6F82G0-S is a dual-lens network (IP) camera designed for detailed monitoring with both standard and wide-angle views. It supports Channel 1 up to 3840 × 2160 (8MP) and Channel 2 up to 3840 × 2160 (also supporting 4K-class capture), enabling flexible surveillance coverage in a single device. For challenging lighting conditions, it features 120 dB true WDR on Channel 1 and digital WDR on Channel 2 to help maintain clarity against strong backlight.
Audio is included for real-time audio security thanks to a built-in microphone, supporting mono sound and multiple audio compression options such as G.711, AAC-LC and others. The camera provides smooth video performance using H.265/H.264 compression with CBR/VBR bitrate control, scalable video coding (SVC), and ROI support (4 fixed regions for the main stream). Multiple streaming and configuration capabilities are supported through an extensive protocol set including RTSP/RTCP, HTTP/HTTPS, ONVIF, and ISAPI.
For recording and storage, it supports onboard microSD/microSDHC/microSDXC memory card slots up to 512 GB, as well as storage options via NAS (NFS/SMB/CIFS) and NVR. Motion detection is available with event linkage actions such as upload to FTP/NAS/memory card and triggering recording. The DS-2CD6F82G0-S is available in two lens variants: DS-2CD6F82G0-S(4mm/8mm) and DS-2CD6F82G0-S(2.8mm/6mm).
Key Features
- Dual-lens design (Channel 1 + Channel 2) for combined views
- Up to 8MP class imaging (max 3840 × 2160)
- 120 dB true WDR on Channel 1 (Channel 2: Digital WDR)
- Built-in microphone for real-time mono audio security
- Main stream video compression: H.265/H.264
- Scalable Video Coding (SVC) support (H.264/H.265)
- ROI support: 4 fixed regions for main stream
- Event: motion detection
- Event linkage: FTP/NAS/memory card upload, notify surveillance center, trigger recording
- On-board storage: microSD/microSDHC/microSDXC up to 512 GB
- Network live view up to 20 channels; up to 32 users
- Security support including HTTPS encryption, 802.1X authentication, TLS 1.2/1.3, watermark and IP address filter
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 3840 × 2160.
Yes. Channel 1 supports 120 dB true WDR, while Channel 2 supports Digital WDR.
Yes. It has a built-in microphone and supports mono sound with multiple compression formats.
H.265 and H.264 are supported for the main stream.
Yes. It includes a microSD/microSDHC/microSDXC slot supporting up to 512 GB.
Basic motion detection is supported, with linkage actions such as FTP/NAS upload, memory card upload, notify surveillance center, and trigger recording.
