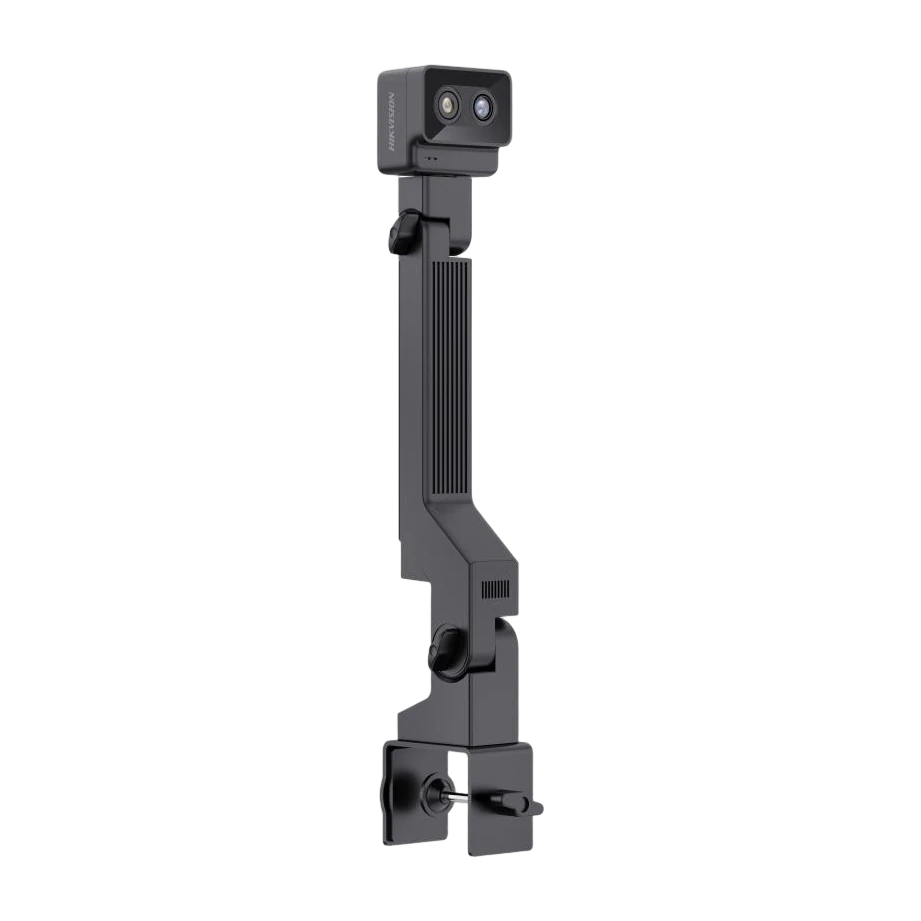

DS-2CD6F82G0-WS Hikvision Box IP Camera

The Hikvision DS-2CD6F82G0-WS is a dual-lens operations recording network camera designed for high-quality surveillance with flexible field-of-view options. The camera supports channel 1 with up to 3840 × 2160 (8MP equivalent) and channel 2 up to 3840 × 2160 with a 2MP/dual-sensor configuration stated in the datasheet. It features true 120 dB wide dynamic range (WDR) on channel 1 to maintain clear imaging in high-contrast scenes such as strong backlight, while channel 2 uses digital WDR.

For day/night monitoring, the datasheet provides low-light performance specifications (0.002 lux and 0.003 lux with AGC on), along with BLC, HLC, 3D DNR, and distortion correction image enhancement tools. Audio is included via a built-in mono microphone for real-time audio security.

For installation flexibility, the camera supports Wi‑Fi connectivity with wireless range up to 80 m in open areas (performance varies by environment). Video encoding uses H.265/H.264 with options for bitrate control (CBR/VBR), ROI, and Scalable Video Coding (SVC) for both H.264 and H.265. Network features include up to 20 simultaneous live view channels, ONVIF/ISAPI/SDK/ISUP compatibility, NAS/NVR recording, and extensive security support including TLS 1.2/1.3, 802.1X, and watermarking.
