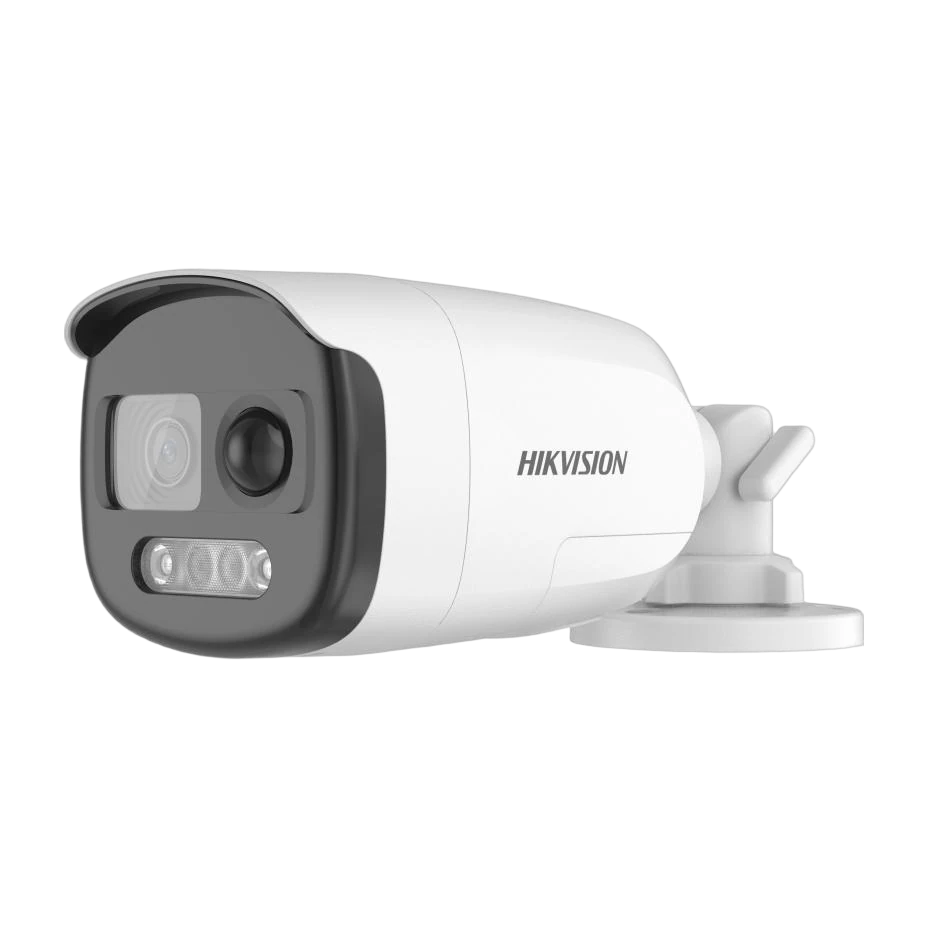

DS-2CE12UF3T-PIRXO Hikvision Bullet Analogue Camera
Product Overview
The Hikvision DS-2CE12UF3T-PIRXO is a 4K ColorVu fixed bullet camera designed for 24/7 colour monitoring with active deterrence features. It uses an 8 MP CMOS sensor with a maximum resolution of 3840 (H) × 2160 (V), delivering high-detail images in day and night conditions. For challenging lighting, the camera supports 130 dB true WDR, helping maintain clarity against strong backlight. Noise performance is improved with 3D DNR technology, producing clean and sharp visuals.
For night illumination, the camera includes a built-in white light illuminator with a stated supplement light range of up to 40 m, supporting bright colour imaging without switching to monochrome. In addition to illumination, the camera features PIR (passive infrared) detection for sensing human body heat. When motion is detected, the camera can trigger deterrence via an active strobe light and audio alarm output.
The DS-2CE12UF3T-PIRXO includes a fixed focal lens option (2.8 mm or 3.6 mm) and offers programmable privacy masks and motion detection areas for flexible monitoring. It also provides a single HD analogue video output and includes a line out alarm for the strobe function. The camera is rated IP67 for outdoor water and dust resistance, and is powered by 12 VDC with a maximum consumption of 6.7 W.
Key Features
- 8 MP CMOS sensor with max resolution 3840 × 2160
- 24/7 color imaging
- 130 dB true WDR for clear images in strong backlight
- 3D DNR (3D/2D DNR supported) for clean, sharp images
- Fixed focal lens: 2.8 mm or 3.6 mm
- Up to 40 m white light supplement illumination for bright night imaging
- PIR (passive infrared) human detection with 11 m range and 110° angle
- Active strobe light and audio alarm to warn intruders
- IP67 water and dust resistance
- Built-in speaker (high quality audio)
- Programmable privacy masks (4) and motion detection areas (4)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
The maximum resolution is 3840 (H) × 2160 (V) with an 8 MP CMOS sensor.
Yes. It is specified for 24/7 colour imaging (Day/Night Mode: Color).
It uses 130 dB true WDR technology to deliver clear imaging against strong backlight.
It uses white light supplement illumination with a range up to 40 m.
PIR range is 11 m and PIR angle is 110°.
Yes. It is rated IP67 for water and dust protection.
