DS-2CE57H0T-VPITE(C) Hikvision Dome Analogue Camera
Product Overview

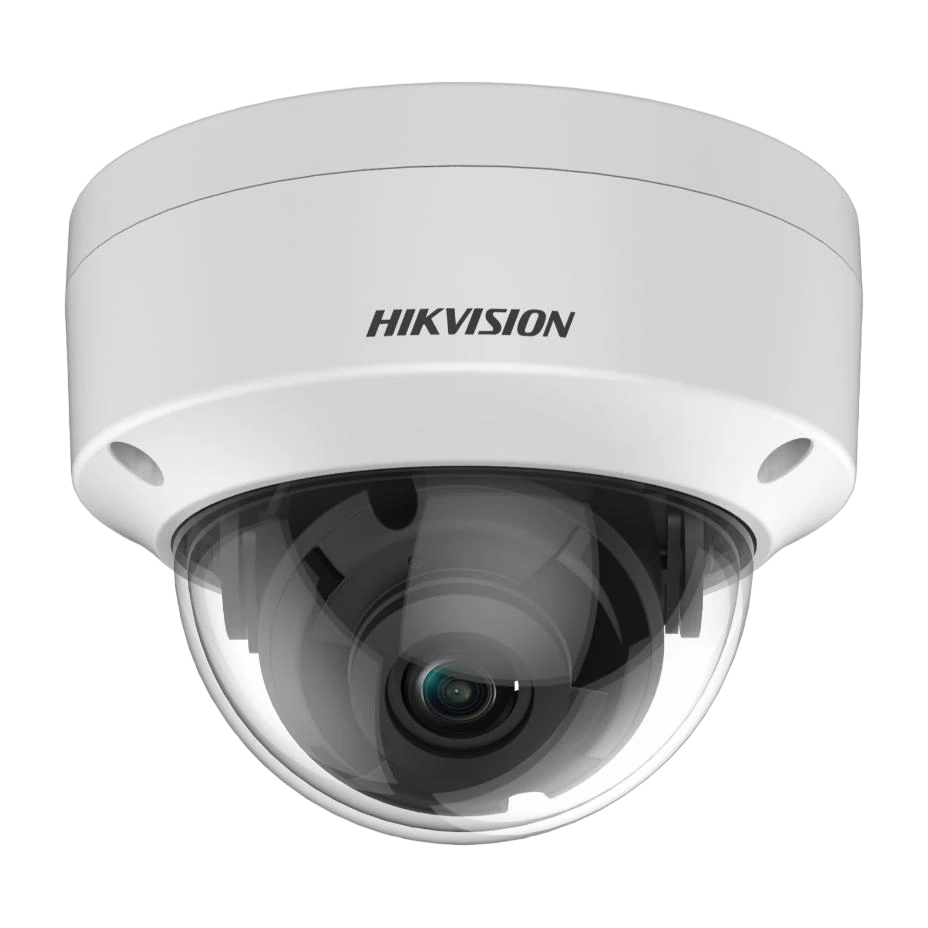

The Hikvision DS-2CE57H0T-VPITE(C) is a 5 MP Turbo HD fixed dome camera designed for high-quality surveillance in challenging outdoor environments. It uses a 5 MP CMOS image sensor to deliver up to 2560 (H) × 1944 (V) resolution for clear detail. The camera supports fixed focal lenses available in 2.8 mm or 3.6 mm options, providing wide fields of view suitable for general monitoring.
For low-light performance, the camera offers a minimum illumination of 0.01 Lux (F2.0, AGC ON) and 0 Lux with IR, enabling night imaging when lighting is limited. An integrated IR illumination system provides up to 20 m night viewing distance, supporting practical coverage for perimeter and entry points.
Image quality features include DWDR (digital WDR), BLC, HLC, global image enhancement, and 2D DNR for improved clarity and reduced noise. Day/Night operation is supported via ICR, with modes including Auto/Color/BW (Black and White). The unit provides an HD analog video output.
Built for rugged installations, the camera is made of metal and is rated IP67 for water and dust resistance and IK10 for vandal resistance. It operates reliably across a temperature range of -40°C to 60°C with up to 90% humidity (non-condensation). Power is 12 VDC ±25% or PoC.af, with maximum power consumption of 2.6 W.
Key Features
- 5 MP CMOS sensor with max resolution 2560 × 1944
- Fixed 2.8 mm or 3.6 mm lens options
- Min. illumination: 0.01 Lux (F2.0, AGC ON); 0 Lux with IR
- Up to 20 m IR range for night imaging
- Digital WDR (DWDR), BLC and HLC
- 2D DNR noise reduction
- Day/Night ICR with Auto/Color/BW modes
- HD analog output (1 channel)
- Metal housing
- Weather and impact protection: IP67 and IK10
- Operating temperature: -40°C to 60°C
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
The camera supports a maximum resolution of 2560 (H) × 1944 (V).
Yes. It has IR night imaging with 0 Lux capability when IR is on.
Up to 20 m.
Fixed focal lenses of 2.8 mm and 3.6 mm.
Yes. It is rated IP67 (water and dust resistant) and IK10 (vandal resistant).
It provides 1 HD analog output.
